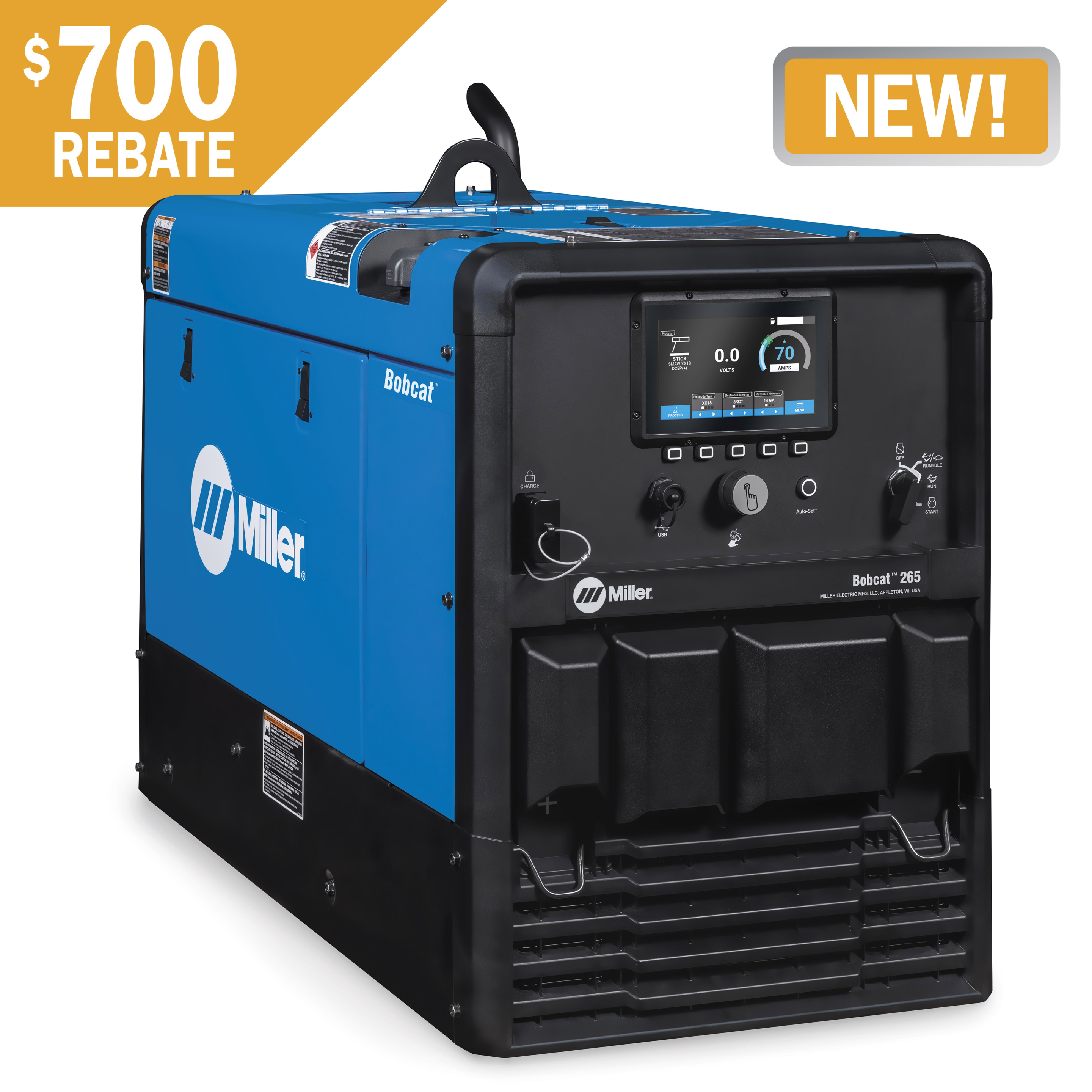

Miller Electric Bobcat 265 (Kohler), Battery Charge with Remote Start/Stop

Features

• Digital interface speeds machine setup and makes it less complicated.
• Full auxiliary power at any setting.
• Easily turn your Bobcat machine on and off remotely, so it only runs when you need it.
• Easy arc starts and less spatter.
• Over 100 pounds lighter and 13 percent smaller than previous models.
• Machine provides up to 150 amps of DC power to quickly charge 12- and 24-volt batteries. Jobsite equipment with weak batteries can get up to 300 amps of crank assist power.
• With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.

Does Not Include

• Weld leads

Specifications

• Country of Origin: United States
• Length: 37.06
• Width: 20.13
• Height: 26.5
• Weight: 382
• Engine Weld Speed: 3600
• Rated Output: CC/DC Stick/TIG 265 A at 27 V, 100% duty cycle, CV/DC MIG/FCAW 265 A at 27 V, 100% duty cycle
• Rated Carbon Diameter: 3/16 in (4.8 mm)
• Fuel Type: Gasoline
• Sound Rating: 64 dB @ idle and 73 dB @ weld
• Engine Brand: Kohler
• Horsepower (hp): 23.5
• Single-Phase Generator Peak Power (W): 11000
• Weld Output: CC / CV
• Fuel Tank Size: 11 Gallon
• Single-Phase Generator Continuous Power (W): 9500
• Engine Idle Speed: 2300 RPM
• Min DC Welding Amperage: 20
• Max DC Welding Amperage: 265
• Amperage Range: 20 A - 265 A
• Current Type: DC
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Compressed Air: no
• Battery Charge: 150 A
• Crank Assist: 300 A

Downloads

Spec Sheet
