LIFT / Overhead Cranes / Gantry Cranes
Gantry cranes for your business.
Gantry cranes are frequently used for lifting and transferring huge cargo in industrial settings, ports, and railroad yards. Gantry cranes are adaptable since they may be used in both indoor and outdoor environments and are capable of handling a variety of loads, including machinery, steel beams, and containers. The mobility of gantry cranes provides an additional advantage as they are easily transportable from one place to another, allowing for optimal use and effective use of available space. Gantry cranes may be moved as needed to accommodate changing demands, which is very helpful in industries with limited space.
As a leading crane supplier in Canada, Kristian Electric Ltd. has multiple options available for your gantry crane, including options by manufacturers such as Gorbel and Spanco. We also provide custom-designed gantry crane solutions based on the requirements of your facility and lifting needs. Our Overhead Crane Team in Calgary, Edmonton or Saskatoon can work with you to find your perfect gantry crane solution!
Browse Gantry Crane Options
Capacities from 1 ton – 5 ton Spans from 8ft. – 30ft. Heights from 10ft. – 20ft. Movable under load Easily moved to any location in a facility Cost-effective for areas with infrequent lifts
Capacities from 1 ton – 5 ton Spans from 8ft. – 30ft. HUB heights range from 7 ft. (min.) to 20 ft. (max) Adjustable in 6" increments to provide different lifting heights •Easily moved to any location in a facility •Cost effective for areas with infrequent lifts
Aluminum Capacities from 1000 lbs. – 4000 lbs. Standard spans up to 20'. Height Under Boom 6-12' Adjustable in 6” increments to provide different lifting heights Collapsible for easy storage Cost-effective for areas with infrequent lifts
All Steel - up to 10 tons capacity, height up to 24'-3", span up to 40' Aluminum I-beam - up to 3 tons capacity, height up to 22'-0", span up to 15'
Steel with Adjustable Height - up to 10 tons capacity, height up to 16', span up to 40' Steel with Fixed Height - up to 10 tons capacity, height up to 16', span up to 40' Aluminum with Adjustable Span and Height - up to 3 tons capacity, height up to 12.2', span up to 20' (on 1-ton models)
Capacities: up to 3 tons Adjustable Height Under I-beam: up to 12’-2" Adjustable Spans: up to 20’ on 1-ton models and 15' on 2- & 3-ton models
Fixed Height - Up to 5 Ton Capacity. 10' height under beam, Span length 12' Adjustable Height & Span Up to 3 ton capacity, up to 14' height under beam, span length 11'6"
Capacities: up to 15 tons Height under I-beam, standard: up to 35’ Spans, standard: up to 40’ Spans, custom: up to 50’
Semi-Gantry Capacities: up to 15 tons Height under I-beam: up to 35’ Spans: up to 40’
Capacities from 1 ton – 5 ton Spans from 8ft. – 30ft. Heights from 10ft. – 20ft. Easily moved to any location in a facility Cost-effective for areas with infrequent lifts

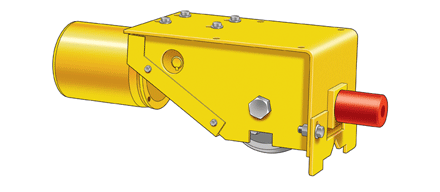

For the PF Series Gantry Cranes allow high volume, high capacity gantry travel along V-tracks, guide angles, or truly trackless paths. Includes: Two drives with drive wheels and sprockets; chains; two gear reducers; two single-speed, 230/460V, three-phase, TEFC motors; solid state, adjustable “soft start”; and two idler assemblies. Standard travel speed is 50 FPM; custom speeds available
Tripod Capacities: 1 or 2 tons Height (to eyebolt): From 5’-2” to 13’-9” Tripod Construction: Steel or Aluminum
