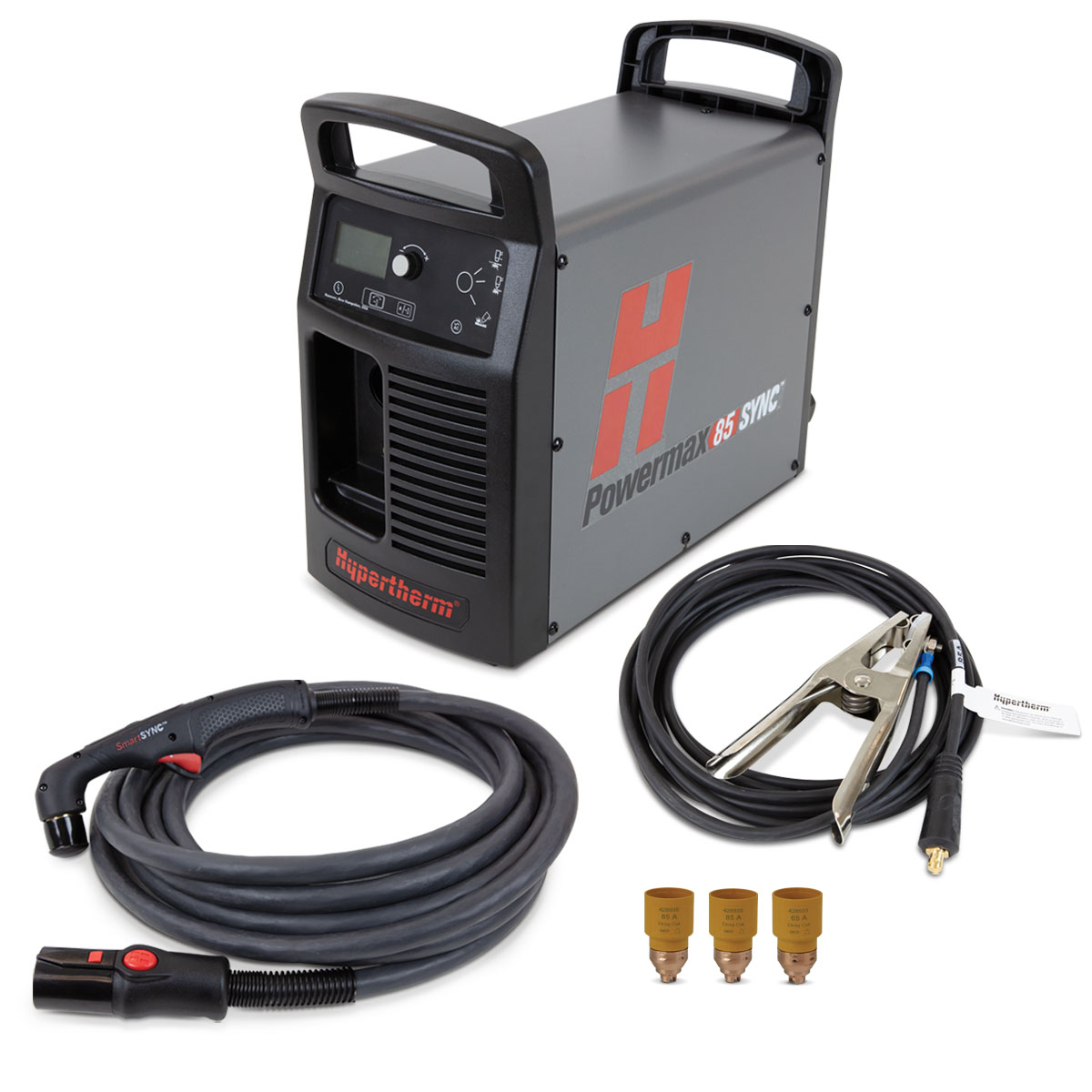

Hypertherm PMX85 SYNC 200-600V CSA/CPC/75° 25′ HND TCH/25′ LEAD

Features

• Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging. Optimized cartridge consumable design provides up to twice the life for hand cutting and improved quality over life in mechanized setups compared to standard consumables. Time-saving handheld torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.
• Simplified system operation minimizes the time and costs spent on training and troubleshooting. Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts. Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.
• Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups. RFID-enabled SmartSYNC™ torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors. End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge. Less operator fatigue when using handheld torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.

Specifications

• Open Circuit V Ocv: 305 VDC
• Power Cable Lengths: 3m (10')
• Comm Interface Ports: CPC
• Severance Capacities: 38 mm (1-1/2") @ 125 mm/min (5 ipm)
• Rec Cut Capacity Slow: 32 mm (1-1/4") @ 250 mm/min (10 ipm)
• Remote Pendants: No
• Power Supply Types: Inverter - IGBT
• Dimensions With Handle: 483 x 233 x 430 mm (19.0 x 9.2 x 17.0")
• Min Output Currents: 25 A
• Rec Flow For Cutting: 189 l/min or 400 scfh (6.7 scfm) @ 85 psi (5.9 bar)
• Warranties: Power Supply: 3-year, Torch: 1-year
• Divided Arc Voltages: 20:1, 21.1:1, 30:1, 40:1, 50:1
• Rec Cut Capacity Fast: 25 mm (1") @ 500 mm/min (20 ipm)
• Duty Cycles 40C: 100% @ 66 A, 230 - 600 V, 40% @ 85 A, 200 - 208 V, 50% @ 85 A, 200 - 208 V, 50% @ 85 A, 240 V, 60% @ 85 A, 230 - 600 V, 60% @ 85 A, 480 V
• Input Currents: 42/40/35/18/17 A, 70/68/58/29 A
• Rated Output V Vdc: 143 VDC
• Weight With Torch: 30.4 kg (67 lb)
• Phases: 1/3-PH
• Ps Dimen Incl Handle: 500 x 234 x 455 mm (19.7 x 9.2 x 17.9")
• Technologies: Plasma
• Motor Gen For Full Arc: 26.8 kVA or 20 kW
• Weight Without Torch: 27.2 kg (60 lb)
• Input Current Watts: 12.2 kW
• Mch Pierce Cap W Athc: 20 mm (3/4")
• Mch Pierce Cap No Athc: 16 mm (5/8")
• Certification Models: CSA
• Work Cables: Yes
• Gouge Profiles: 5.8 x 7.1 mm (.23 x .28")
• Rec Flow For Gouging: 212 l/min or 450 scfh (7.5 scfm) @ 70 psi (4.8 bar)
• Torch Angles: 75⁰
• Torch Lead Lengths: 7.6 m (25')
• Platforms: Automated, Handheld, Pipe and Tube, Robotic, XY Cutting
• Ingress Protection: IP23S
• Input Voltages: 200-480 V, 200-600 V
• Gasses: Air (Clean | Dry | Oil-Free), F5, Nitrogen
• Materials: Aluminum, Copper, Mild Steel, Non-Ferrous, Stainless Steel
• Voltage Tolerances: +10%, -15%
• Gouge Capacities: 8.8 kg (19.5 lbs)
• Max Output Currents: 85 A
• Input Volts And Amps: 200/208/240/480 V, 70/68/58/29 A, 200/208/240/480/600 V, 42/40/35/18/17 A
• Frequencies: 50-60 Hz
• Industries: Agriculture, Artwork, Signs & Ornamentation, Automotive, Construction, Energy, HVAC, Mechanical Contractors, Metal Fabriactors, Mining, Pipe & Pipelines, Pressure vessel/tank fabricators, Scrapping, Shipbuilding, Steel Service Centers, Structural Steel, Transportation
• Weight: 38 lbs
