Miller Electric Multimatic® 215 Multiprocess Welder
Multimatic® 215 Multiprocess Welder
$4,014.68
Out of stock
Description

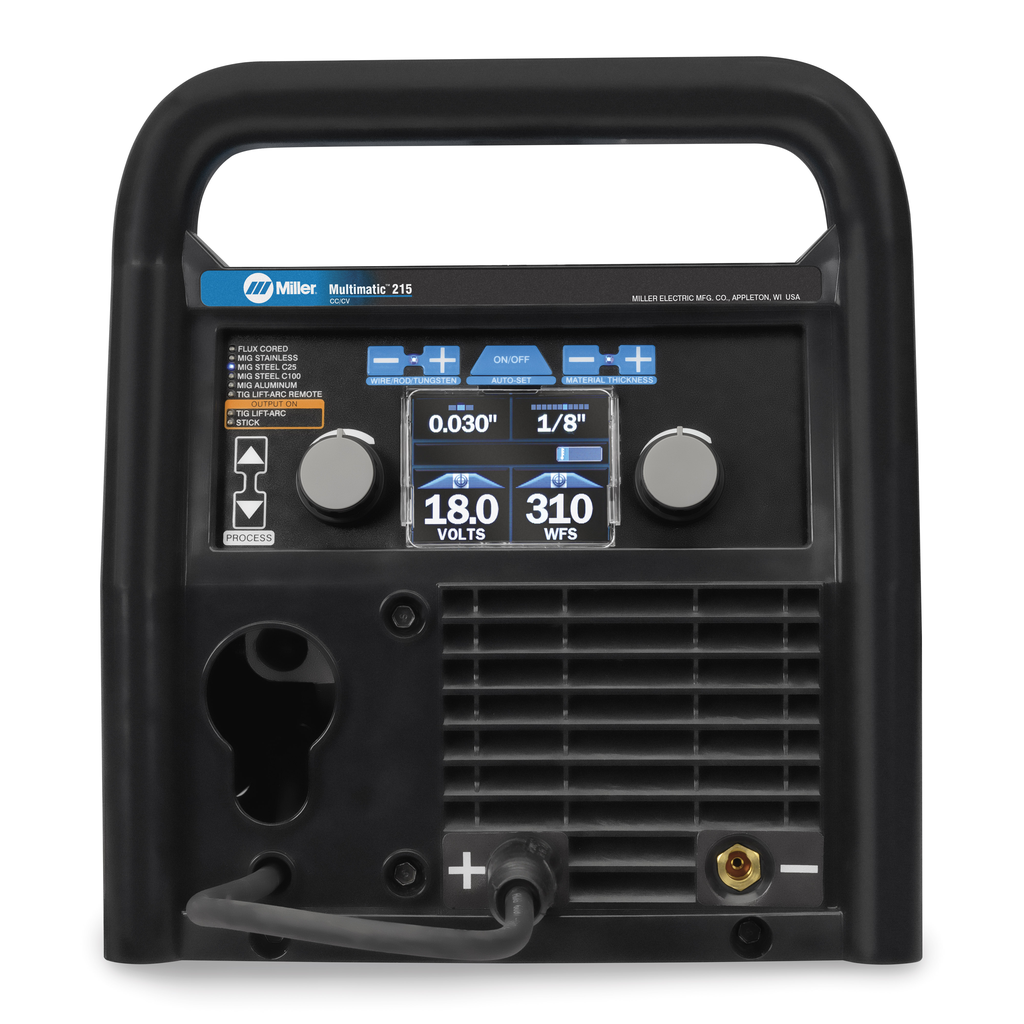

Easy-to-use and versatile MIG, Stick and DC TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel.
Features
- MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.
- Auto-Set Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!
- Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.

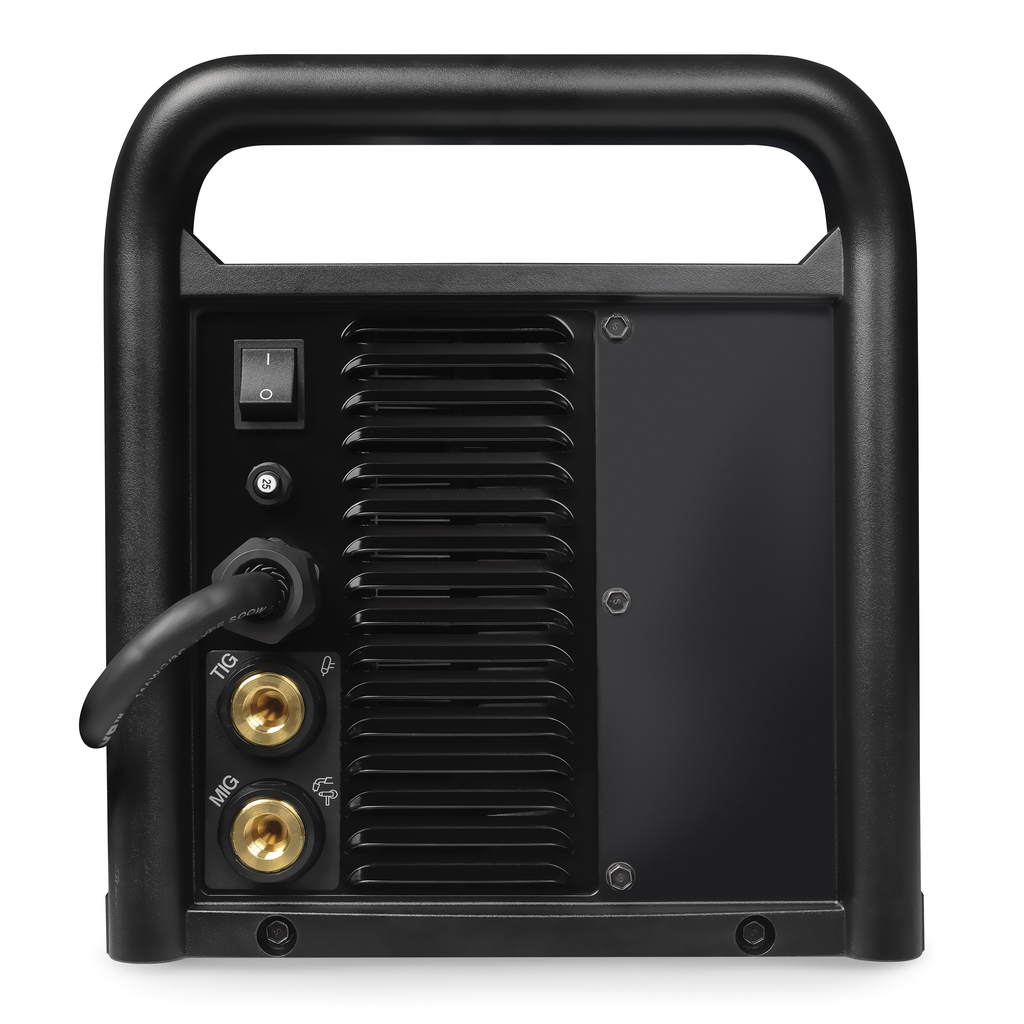

- There are two gas connections on the back of the machine—one for MIG and one for TIG.
- Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.

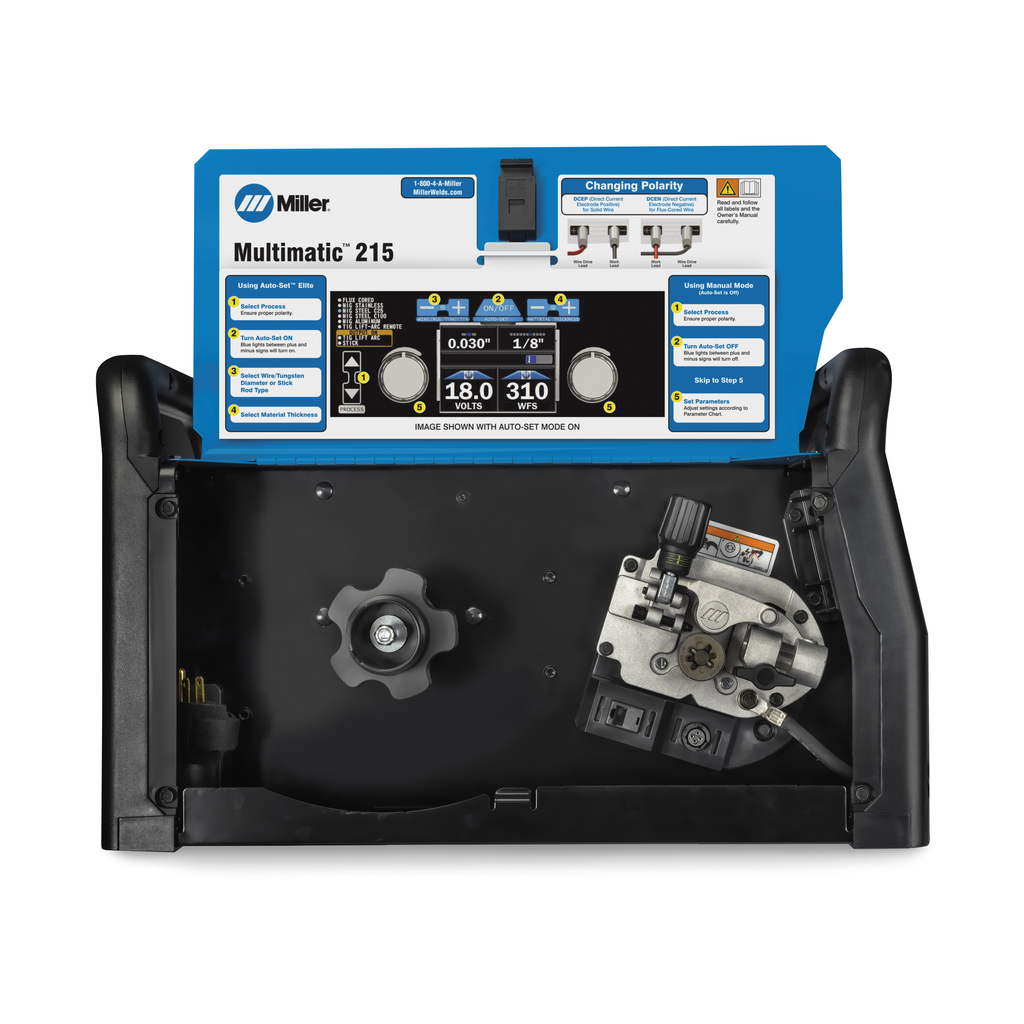

- Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.
- Smooth-Start™ provides smooth, spatter-free MIG starts.
- The Multimatic 215 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
- Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
- Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.

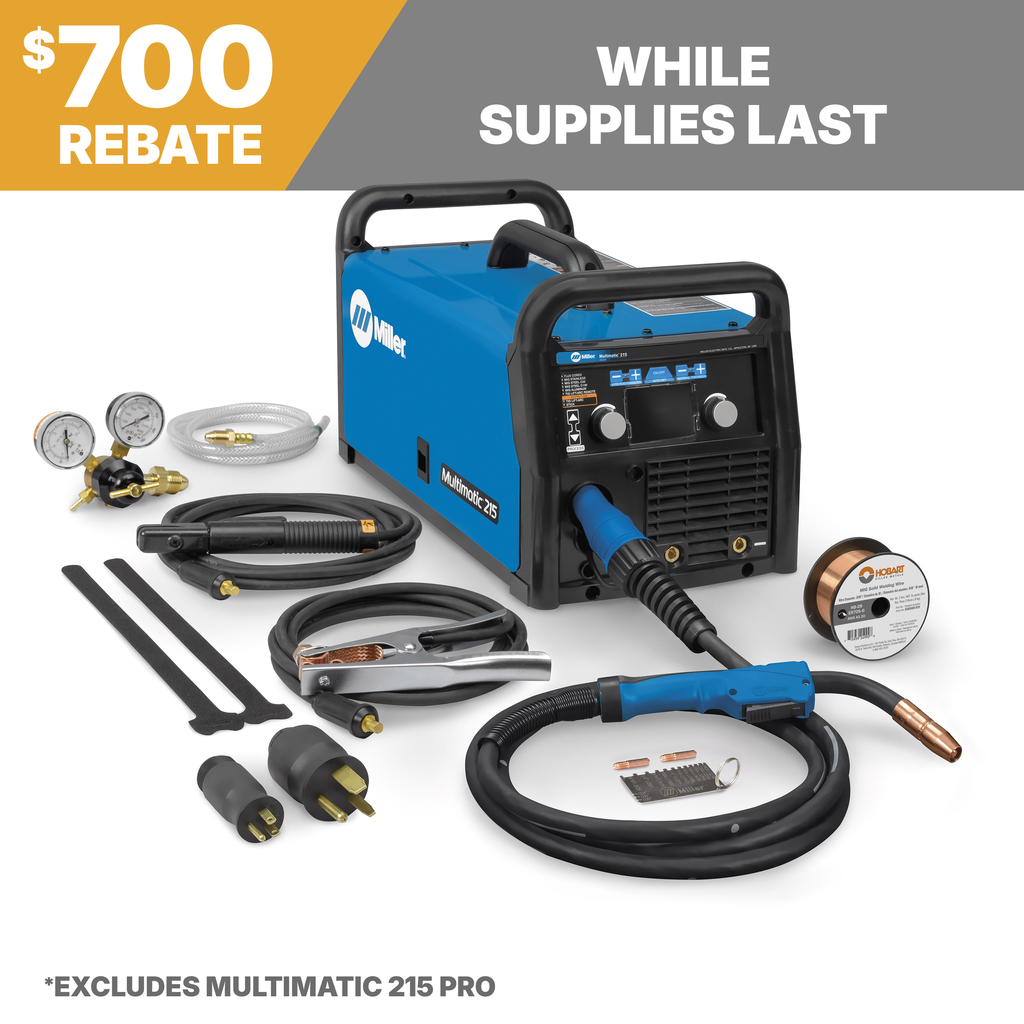

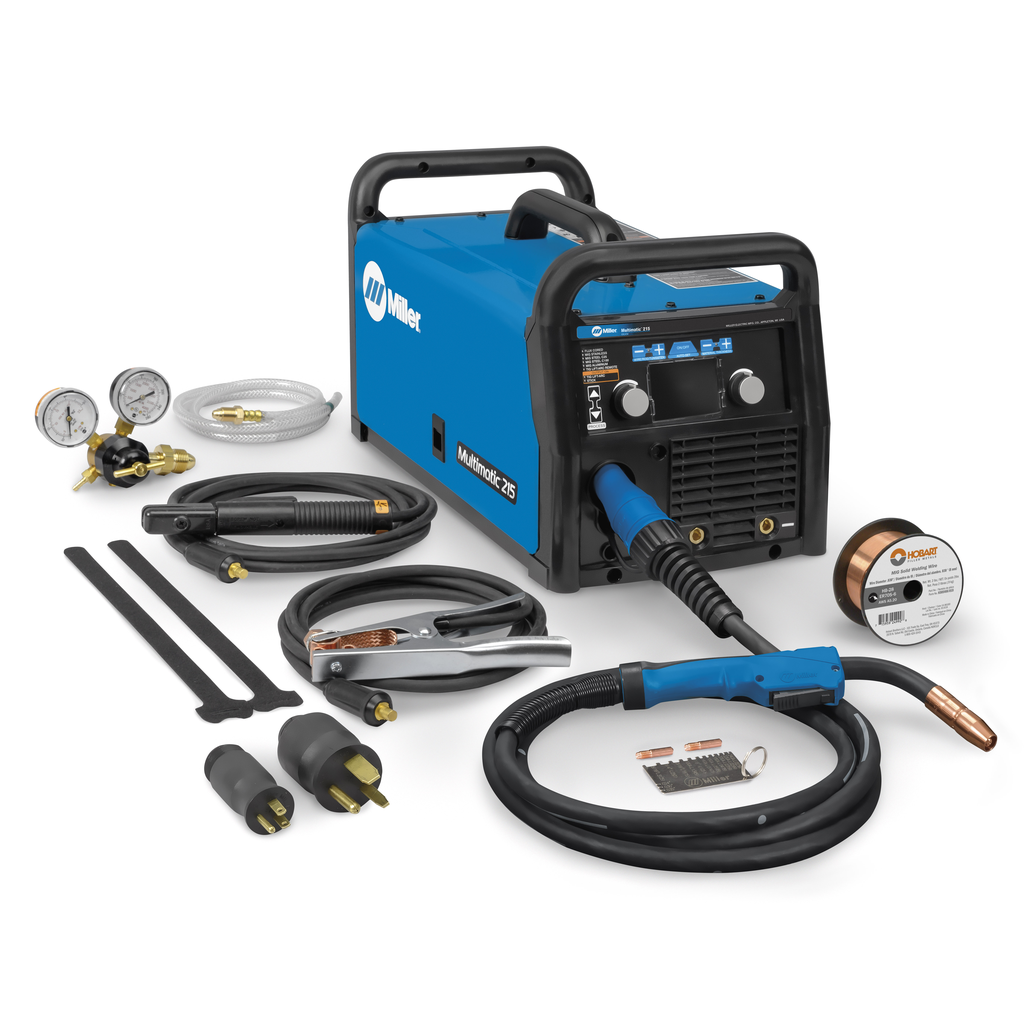

Includes
- Multimatic® 215
- Material thickness gauge #229895
- 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
- 10 ft (3 m) MDX™-100 MIG gun
- 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
- 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
- Argon and AR/CO2 mix regulator/flow gauge with hose
- Spool of Hobart® .030 in (0.8 mm) solid wire
- Two contact tips for .030 in (0.8 mm) wire
- Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
- Hook-and-loop cord wraps
Does Not Include
- Power cord and strain relief
- TIG Kit for TIG welding
- Shielding gas
- Safety Equipment
- Spool gun for aluminum welding
Specifications
- Country of Origin: United States
- Length: 20.5
- Width: 11.25
- Height: 12.5
- Weight: 38
- Max Open Circuit Voltage (VDC): 58
- Multiprocess Specifications: [[c2759a9a5d1a]], [[cea130206b8a]], [[8e1ef2eed565]], [[4d3e5eba7848]], [[fb5d1bad24fe]], [[73827a97e606]], [[dd80cf9a95b7]], [[5ee0f5636015]], [[b8ac54d6dd1d]], [[f656e9ee5941]], [[d6d5e107e916]], [[07192407bda6]]
- Weld Output: CC / CV
- Min Wire Feed Speed IPM (IPM): 60
- Max Wire Feed Speed IPM (IPM): 600
- Input Voltage: 110/115/120 V|220/230/240 V
- Input Phase - To Be Deleted: 1Phase
- Input Phase: 1-Phase
- Amperage Min (A): 20
- Amperage Max (A): 230
- Amperage Range: 20 A - 230 A
- Min Wire Feed Speed MMin (m/min): 1.2
- Max Wire Feed Speed MMin (m/min): 10.8
- Wire Feed Speed Display: 1.8 m/min - 10.8 m/min|70 IPM - 425 IPM
- Current Type: DC
- Weldable Metals: Aluminum|Stainless Steel|Steel
- Input Hz: 50/60 Hz
- Display Min Thickness Mild Steel: 24 ga.
- Display Max Thickness Mild Steel: 3/8 in.
- Material Thickness Display: Mild Steel 24 ga. - 3/8 in. (MIG)|Mild Steel 24 ga. -3/16 in. (TIG)|Mild Steel 16 ga. - 3/8 in. (Stick)|Aluminum 18 ga. - 3/8 in (MIG)
Downloads
Additional information
| Weight | 54.800 lbs |
|---|---|
| Dimensions | 21.00 × 13.00 × 11.00 in |
