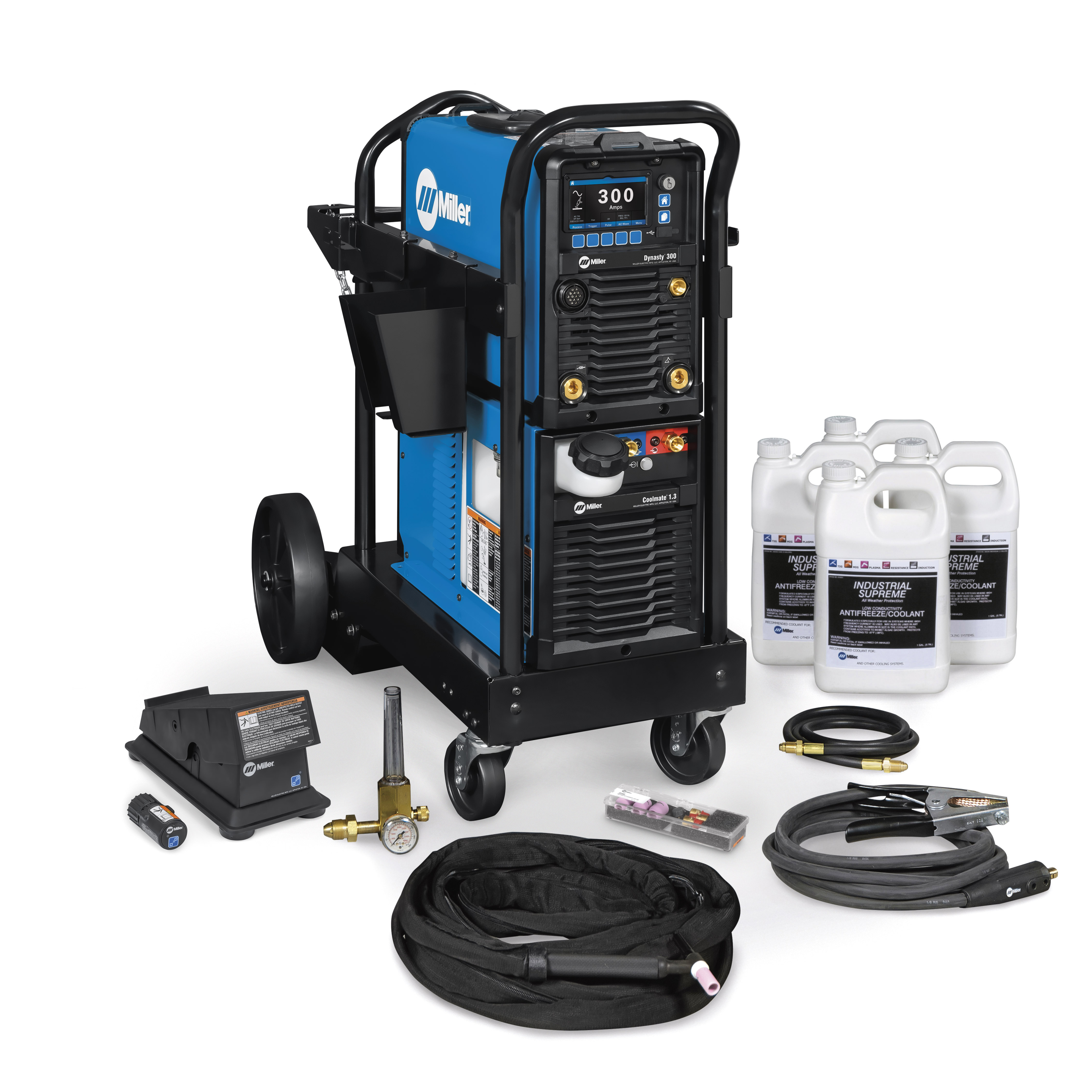

Miller Electric Dynasty 300 TIG Welder Wireless Foot Control Complete

Features

• Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Allows easy naming, saving and recalling of favorite weld settings.
• This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.

Includes

• Dynasty 300
• Coolmate™ 1.3
• Small Runner Cart
• Weldcraft™ W-280 torch kit and accessories (300990)
• Coolant (4 one-gallon bottles of 043810)
• Wireless Foot Control System (301580)
• 8 ft (2.4 m) primary cord

Specifications

• Country of Origin: United States
• Length: 39.5
• Width: 8.5
• Height: 35
• Weight: 240
• Max Open Circuit Voltage (VDC): 60
• Current Type: AC / DC
• TIG Specs: [[0691136c07f5]], [[113bff35ab42]], [[0a5bd7ab9607]], [[a5af3cd0b6aa]], [[773d1b3c1d8d]], [[d347fa3190de]]
• Material Thickness: [[80c7a4a2dd6a]], [[a6743827510e]], [[15874614e230]], [[6619e6133272]], [[61815b3485a6]]
• Weldable Metals: Aluminum|Specialty Metals|Stainless Steel|Steel
• Metal Type: Aluminum|Stainless Steel|Steel
• Weld Output: CC
• Input Phase: 1- and 3-Phase
• Amperage Min (A): 1
• Amperage Max (A): 300
• Amperage Range: 1 A - 300 A
• Min Thickness - Steel - in: 0
• Max Thickness - Steel - in: 0.38
• Display Min Thickness - Steel: 0.004 in. (0.1 mm)
• Display Max Thickness - Steel: 3/8 in. (9.5 mm)
• Display Min Thickness - Aluminum: 0.012 in. (0.3 mm)
• Display Max Thickness - Aluminum: 3/8 in. (9.5 mm)
• Min Thickness - Aluminum - in: 0.01
• Max Thickness - Aluminum - in: 0.38
• Input Voltage: 208 V|220/230/240 V|380/400 V|460/480 V|575/600 V
• Input Hz: 50/60 Hz
• Material Thickness Display: Aluminum 0.012 in. (0.3 mm) - 3/8 in. (9.5 mm)|Steel 0.004 in. (0.1 mm) - 3/8 in. (9.5 mm)
