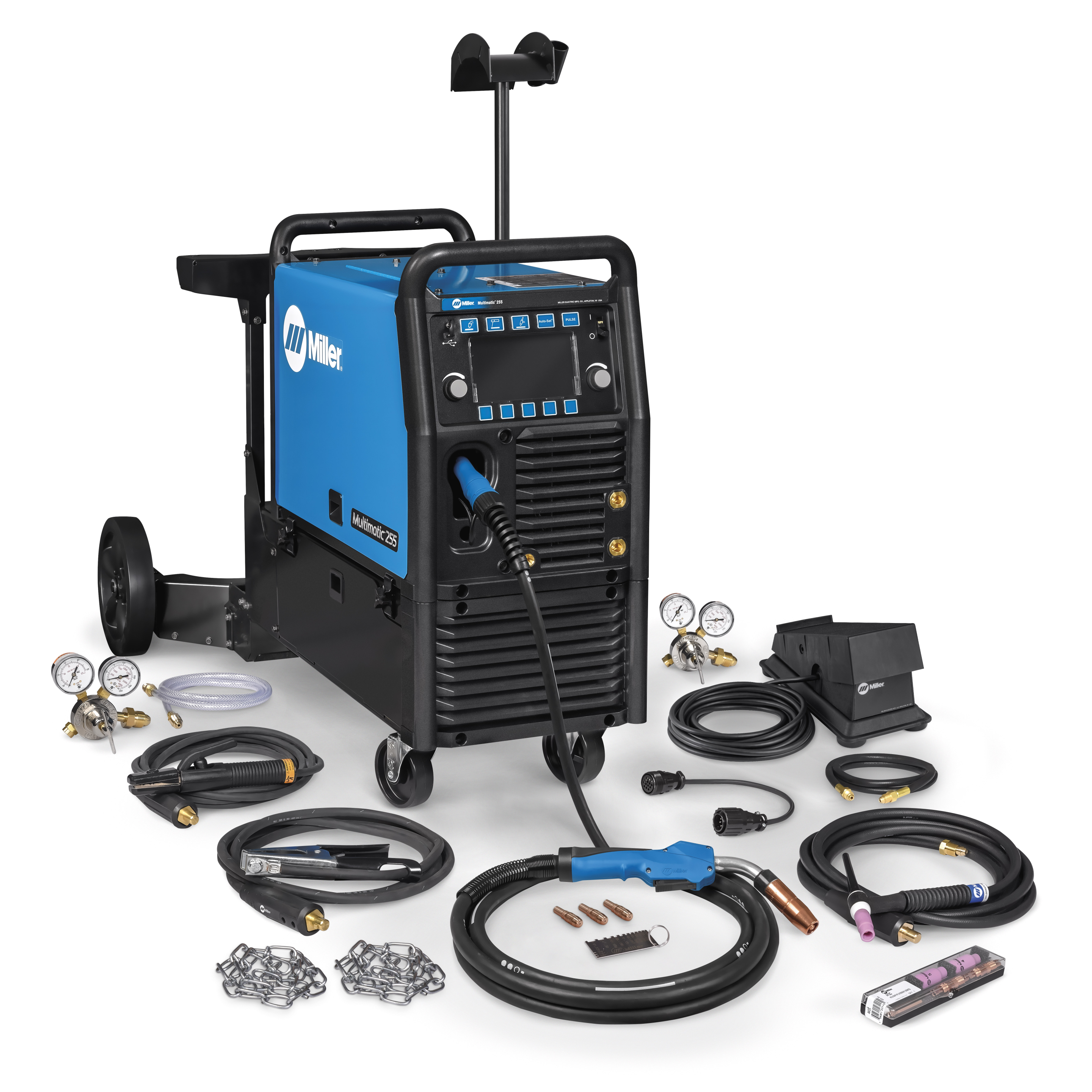

Miller Multimatic 255 Multiprocess Welder with EZ-Latch Dual Cylinder Running Gear & TIG Kit

Features

• Multiprocess Capabilities of MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG and DC Pulsed TIG
• 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
• Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time Perform welding applications that couldn’t be done in the past
• Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene
• Weight is reduced by more than 50 percent compared to transformer welding machines
• Quickly disconnects from the machine and enables portability Dual cylinder rack and storage compartment. Allows operator to easily store two gas cylinders. Includes elevated gun and cable rack to keep cables off the floor and tangle free
• AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance
• Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• The Multimatic 255 will be able to operate and provide full output when powered by generators with 12000 Watt (12K) output or higher Limited output will occur when used with smaller generators.
• Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
• Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.

Includes

• Power source with 10 ft. (3 m) industrial power cord
• 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ S consumables for .035/.045 in (0.9/1.2 mm) wire
• 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
• 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR/CO2 mix
• .035/.045 in (0.9/1.2 mm) reversible drive rolls
• Extra contact tips
• Material Thickness Gauge
• EZ-Latch™ dual cylinder running gear with elevated gun and cable rack
• Multimatic 255 TIG kit
• Two chains to secure gas cylinders

Does Not Include

• Weld leads
• Shielding gas (for welding with solid wire [GMAW])
• Flux cored drive rolls (for welding with flux cored wire [FCAW])
• Push-Pull Gun (for welding aluminum)
• Spool Gun (for welding aluminum)
• Welding wire
• Personal safety products (helmet, gloves)

Specifications

• Country of Origin: United States
• Min Wire Feed Speed MMin (mmin): 1.3
• Input Phase: 1-Phase
• Max Open Circuit Voltage (VDC): 81
• Display Max Thickness Mild Steel: MIG 1/2 in
• Min Wire Feed Speed IPM (IPM): 50
• Max Wire Feed Speed IPM (IPM): 800
• Input Hz: 50/60 Hz
• Spool Size: 12 in
• Input Voltage: 208 V|220/230/240 V|460/480 V|575 V
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Amperage Min (A): 5
• Current Type: DC
• Weld Output: CC / CV
• Input Phase - To Be Deleted: 1Phase
• Material Thickness Display: Mild Steel 22 ga. - 1/2 in (MIG)|Mild Steel 24 ga. - 3/8 in (TIG)|Mild Steel 16 ga. - 5/16 in (Stick)|Aluminum 18 ga. - 1/2 in (MIG)
• Amperage Range: 5 A - 350 A
• Max Wire Feed Speed MMin (mmin): 20
• Display Min Thickness Mild Steel: MIG 22 ga
