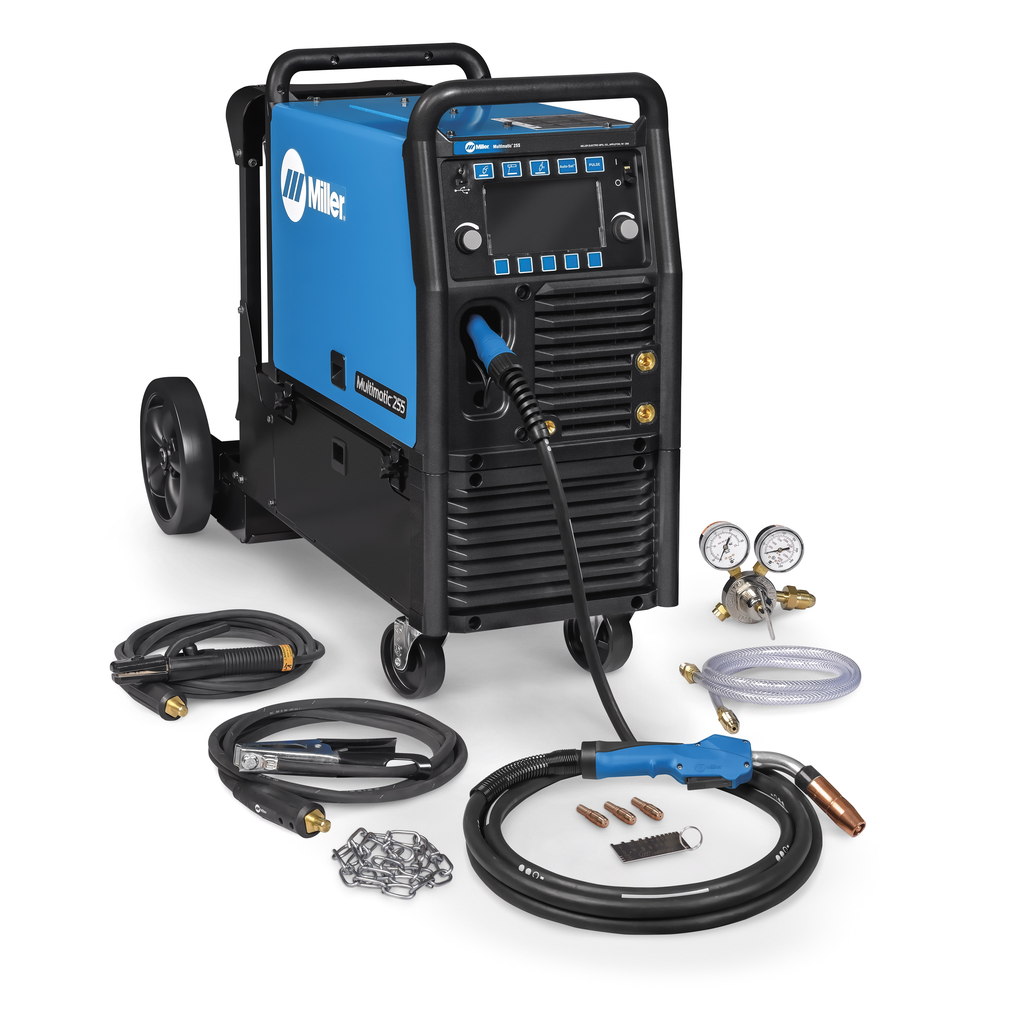

Miller Electric Multimatic® 255 Multiprocess Welder w/ EZ-Latch™ Running Gear- 208-575V

Features

• Multiprocess Capabilities of MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG and DC Pulsed TIG
• Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past
• Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.
• AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.
• Weight is reduced by more than 50 percent compared to transformer welding machines

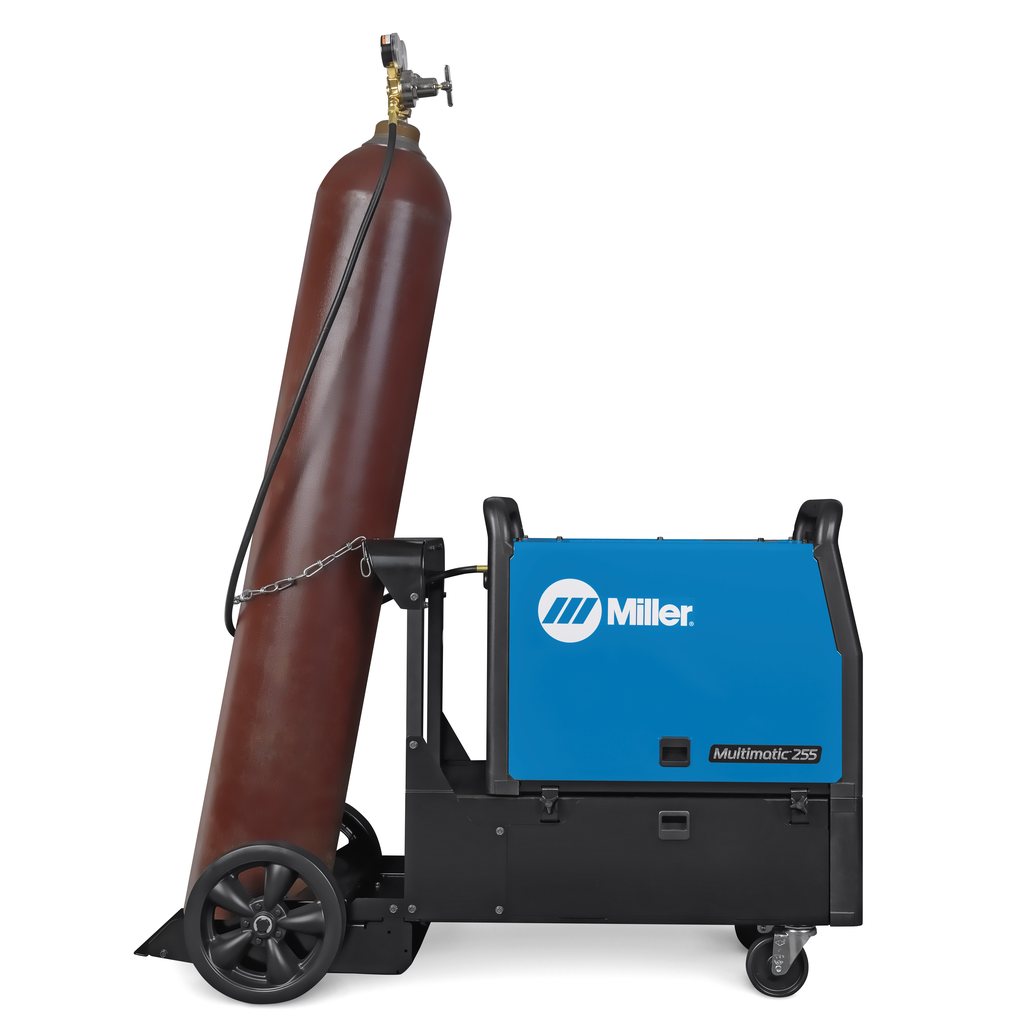

• Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability
• The Multimatic 255 will be able to operate and provide full output when powered by generators with 12000 Watt (12K) output or higher. Limited output will occur when used with smaller generators.
• Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
• Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.

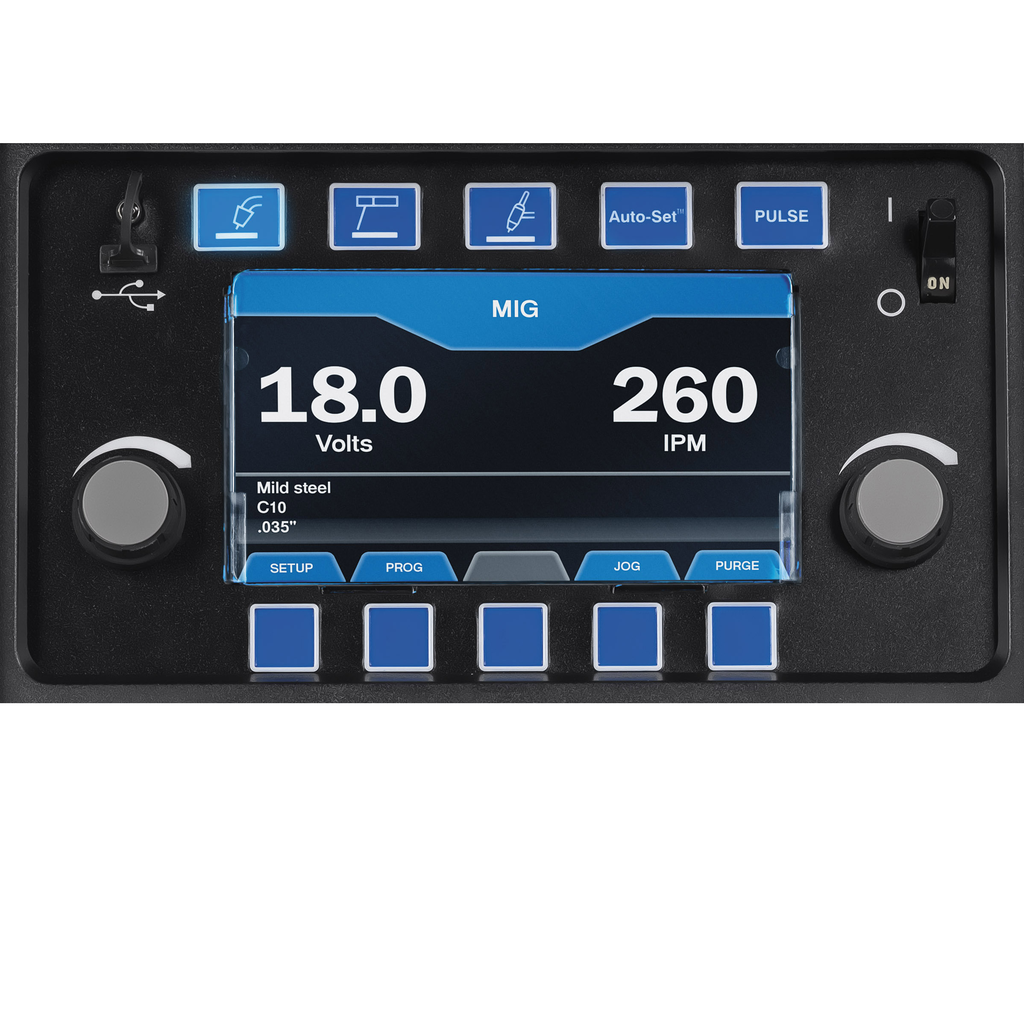

• 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time

Includes

• Power source with 10 ft. (3 m) power cord
• 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ S consumables for .035/.045 in. (0.9/1.2 mm) wire
• 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
• 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR/CO2 mix
• Extra contact tips
• .035/.045 in. (0.9/1.2 mm) reversible drive rolls
• EZ-Latch™ single-cylinder running gear
• Chain to secure gas cylinder
• Material Thickness Gauge

Does Not Include

• Shielding gas (for welding with solid wire [GMAW])
• Flux cored drive rolls (for welding with flux cored wire [FCAW])
• Push-Pull Gun (for welding aluminum)
• Spool Gun (for welding aluminum)
• Welding wire
• Personal safety products (helmet, gloves)

Specifications

• Country of Origin: United States
• Max Open Circuit Voltage (VDC): 81
• Multiprocess Specifications: [[c2759a9a5d1a]], [[cea130206b8a]], [[8e1ef2eed565]], [[4d3e5eba7848]], [[fb5d1bad24fe]], [[73827a97e606]], [[dd80cf9a95b7]], [[5ee0f5636015]], [[b8ac54d6dd1d]], [[f656e9ee5941]], [[d6d5e107e916]], [[07192407bda6]]
• Spool Size: 12 in.
• Weld Output: CC / CV
• Min Wire Feed Speed IPM (IPM): 50
• Max Wire Feed Speed IPM (IPM): 800
• Input Voltage: 208 V|220/230/240 V|460/480 V|575 V
• Input Phase - To Be Deleted: 1Phase
• Input Phase: 1-Phase
• Amperage Min (A): 5
• Amperage Max (A): 350
• Amperage Range: 5 A - 350 A
• Min Wire Feed Speed MMin (m/min): 1.3
• Max Wire Feed Speed MMin (m/min): 20
• Current Type: DC
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Input Hz: 50/60 Hz
• Display Min Thickness Mild Steel: MIG 22 ga
• Display Max Thickness Mild Steel: MIG 1/2 in.
• Material Thickness Display: Mild Steel 22 ga. - 1/2 in. (MIG)|Mild Steel 24 ga. - 3/8 in. (TIG)|Mild Steel 16 ga. - 5/16 in. (Stick)|Aluminum 18 ga. - 1/2 in. (MIG)

Downloads

Spec Sheet
