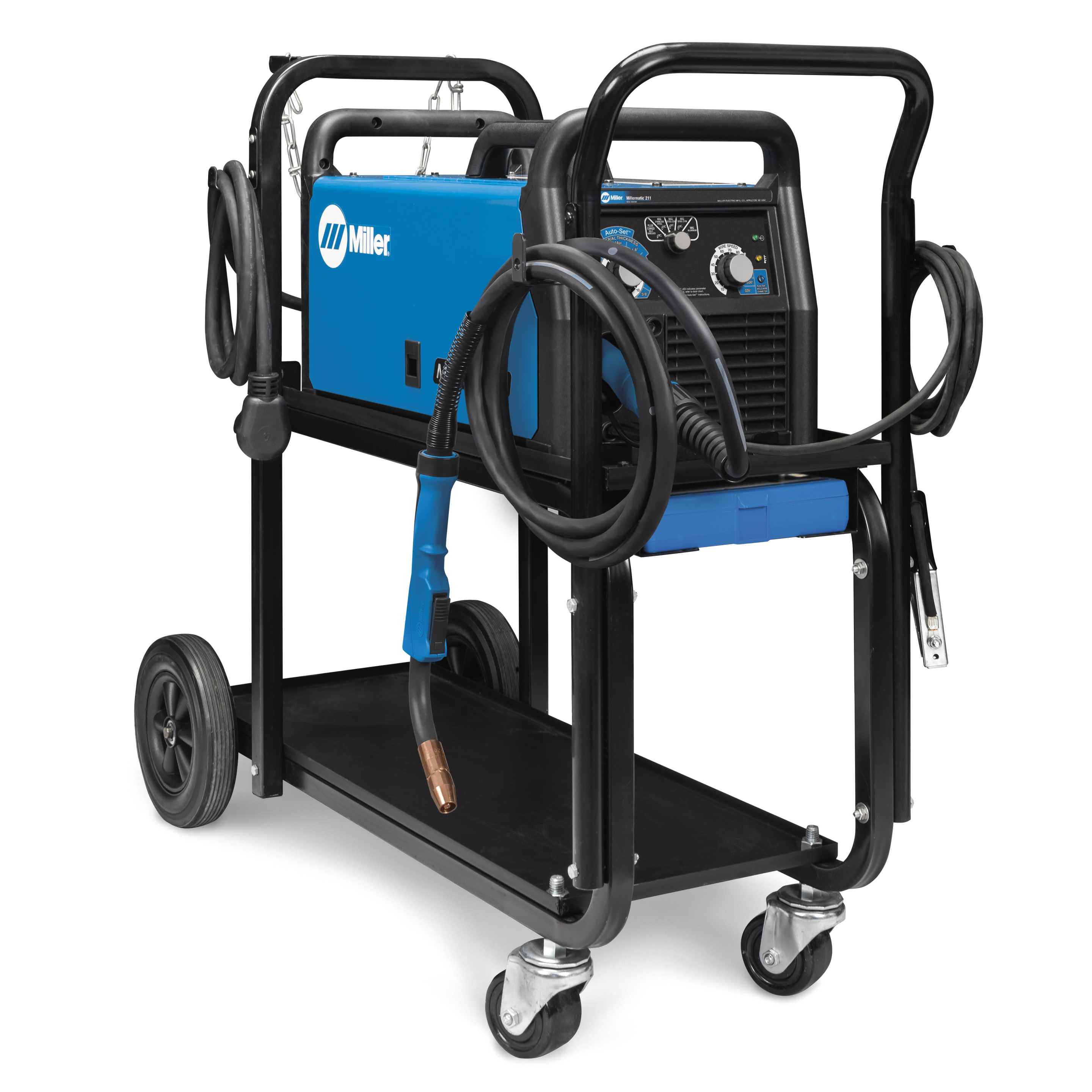

Miller Millermatic 211 MIG Welder with Running Gear/Cylinder Rack

120/240 VAC

Unavailable for online order

Request A Quote

Description

Welds material from 24-gauge to 3/8 in thick in a single pass. Uses 120V or 240V power

Features

  • Welds material from 24 gauge - 3/8 in thick in a single pass. Find Millermatic 211 product specifications, features, and reviews.
  • MIG welders and flux-cored welders from Hobart Welders are perfect for a variety of applications, such as steel, stainless steel and aluminum.

Specifications

  • Country of Origin: United States
  • Amperage Range: AmperageRange19
  • Current Type: DC
  • Input Hz: 50/60 Hz
  • Input Phase: 1Phase
  • Input Voltage: 110115120V, 220230240V
  • Display Max Thickness - Aluminum: 3/8 in
  • Display Min Thickness - Aluminum: 18 ga
  • Material Thickness Display : Aluminum12, Mild Steel6
  • Material Type: Aluminum, SolidSteel, FluxCored, Stainless
  • Weldable Metals: Aluminum, StainlessSteel, Steel
  • Wire Diameter Display: Stainless3, Stainless6, SolidSteel2, SolidSteel7, FluxCored2, FluxCored6
  • Wire Feed Speed Display: WireFeedSpeed4, WireFeedSpeed15
  • Amperage Max: 230 A
  • Amperage Min: 30 A
  • Max Open Circuit Voltage: 54 VDC
  • Max Thickness - in - Aluminum: 0.375 in
  • Max Thickness - in - Mild Steel: 0.375 in
  • Max Wire Diameter - in - Flux Cored: 0.045 in
  • Max Wire Diameter - in - Solid Steel: 0.035 in
  • Max Wire Diameter - in - Stainless: 0.035 in
  • Max Wire Diameter - mm - Flux Cored: 1.2 mm
  • Max Wire Diameter - mm - Solid Steel: 0.9 mm
  • Max Wire Diameter - mm - Stainless: 0.9 mm
  • Max Wire Feed Speed - IPM: 600 IPM
  • Max Wire Feed Speed - m/min: 15.2 m/min
  • Min Thickness - ga - Aluminum: 18 ga
  • Min Thickness - ga - Mild Steel: 24 ga
  • Min Thickness - mm - Aluminum: 1.2 mm
  • Min Thickness - mm - Mild Steel: 0.6 mm
  • Min Wire Diameter - in - Flux Cored: 0.03 in
  • Min Wire Diameter - in - Solid Steel: 0.023 in
  • Min Wire Diameter - in - Stainless: 0.023 in
  • Min Wire Diameter - mm - Flux Cored: 0.8 mm
  • Min Wire Diameter - mm - Solid Steel: 0.6 mm
  • Min Wire Diameter - mm - Stainless: 0.6 mm
  • Min Wire Feed Speed - IPM: 60 IPM
  • Min Wire Feed Speed - m/min: 1.5 m/min

Downloads

Primary Spec Sheet

Additional information

Weight 85.000 lbs
Dimensions .00 × .00 × .00 in
Vendor Part #

951603
