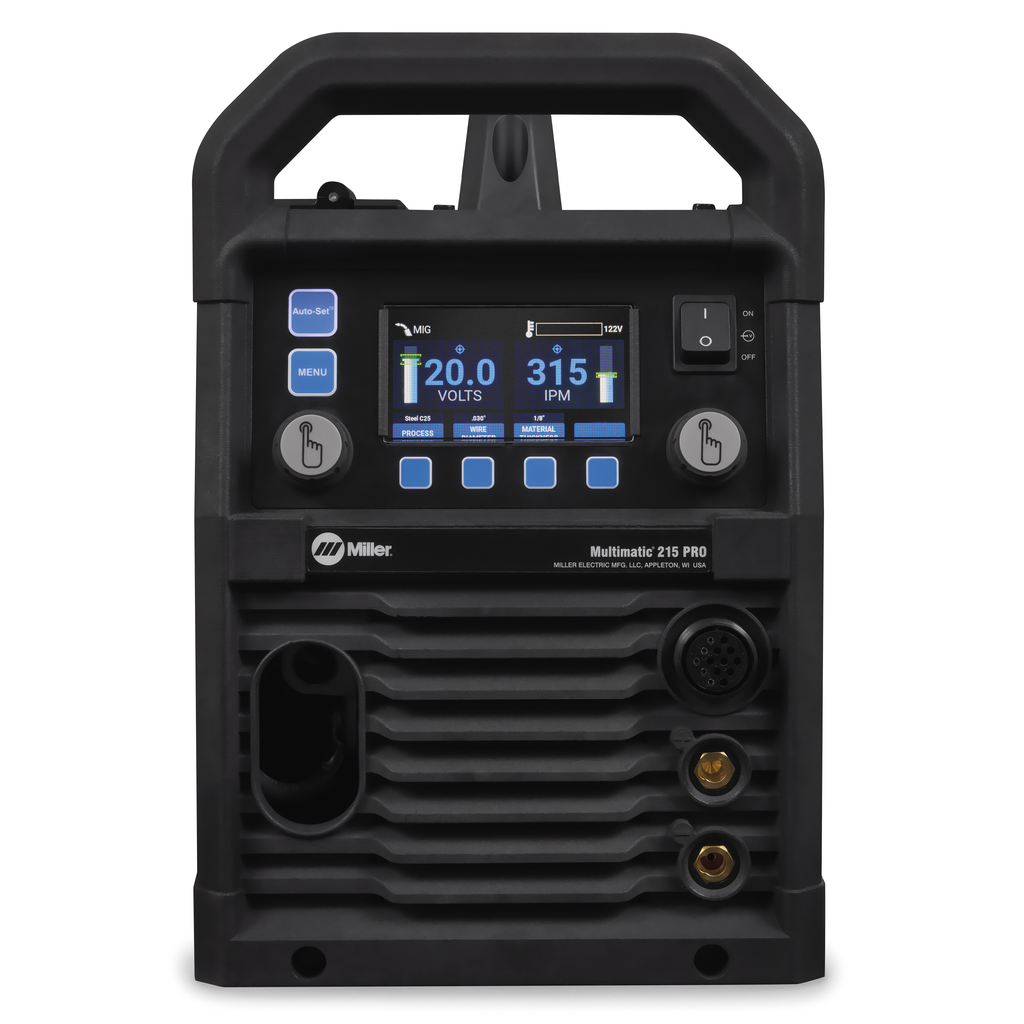

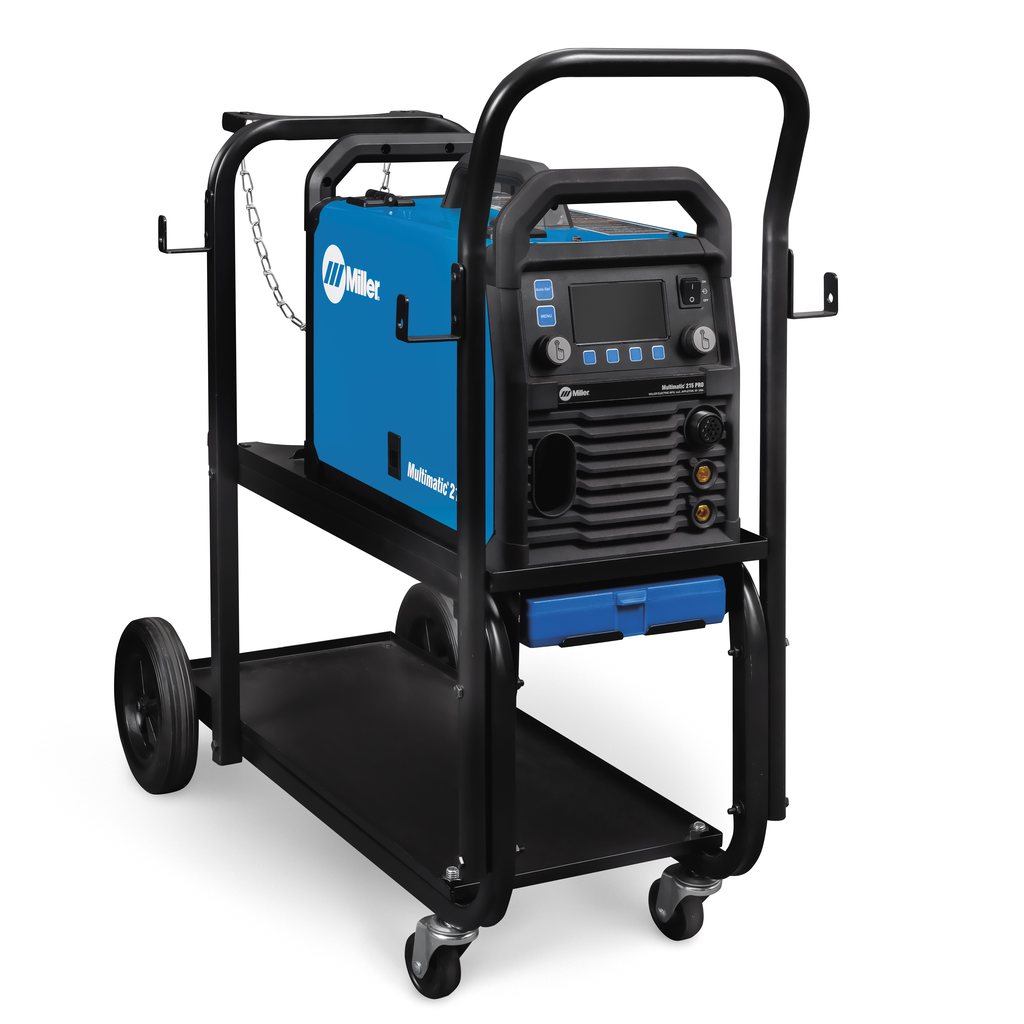

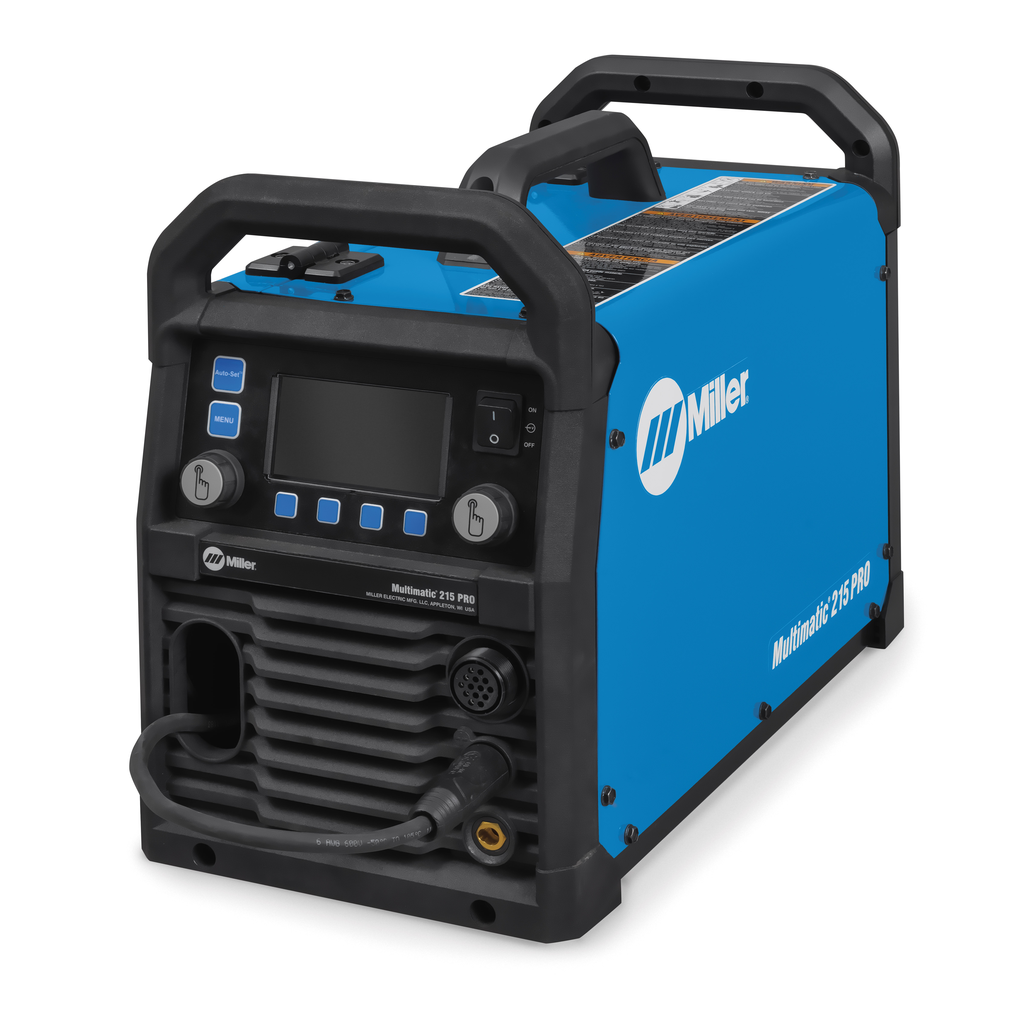

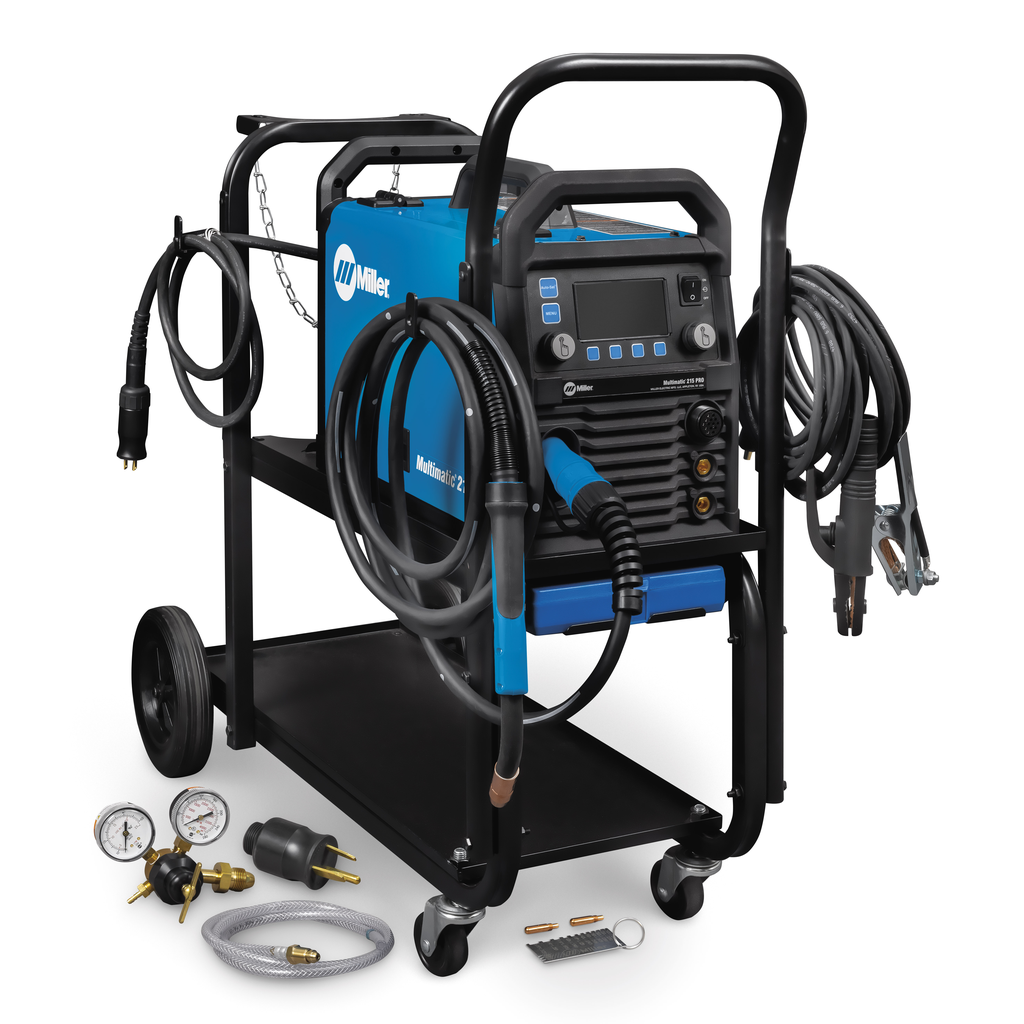

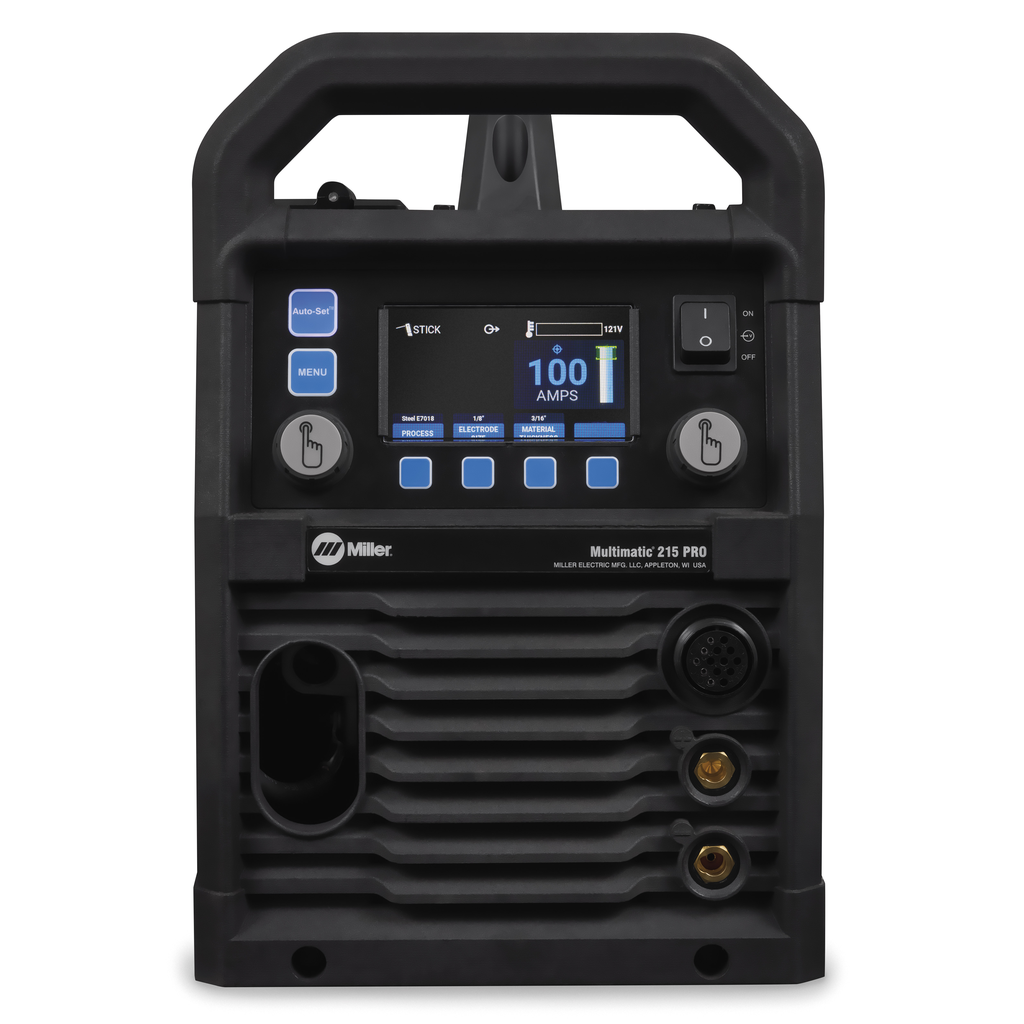

Miller Electric Multimatic® 215 PRO With Welding Cart
Multimatic® 215 PRO With Welding Cart
Description
120/240V MIG, Stick and DC TIG Welder. Welds up to 3/8" steel and aluminum. Featuring advanced technologies like USB-enabled updates, Auto-Set™, higher duty cycle, 15’ MIG gun, and dinse connections—built to keep you welding all day, every day.
Features
- Multiprocess Capabilities: MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.
- Auto-Set™ Technology: Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
- Upgradeable Software: Product upgrades are easy as downloading software updates to a USB stick and plugging it in.
- Smooth-Start™: This technology provides a smooth, spatter-free start. No more pop-gun starts or spatter to clean up.
- Multi-voltage plug (MVP™): Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.

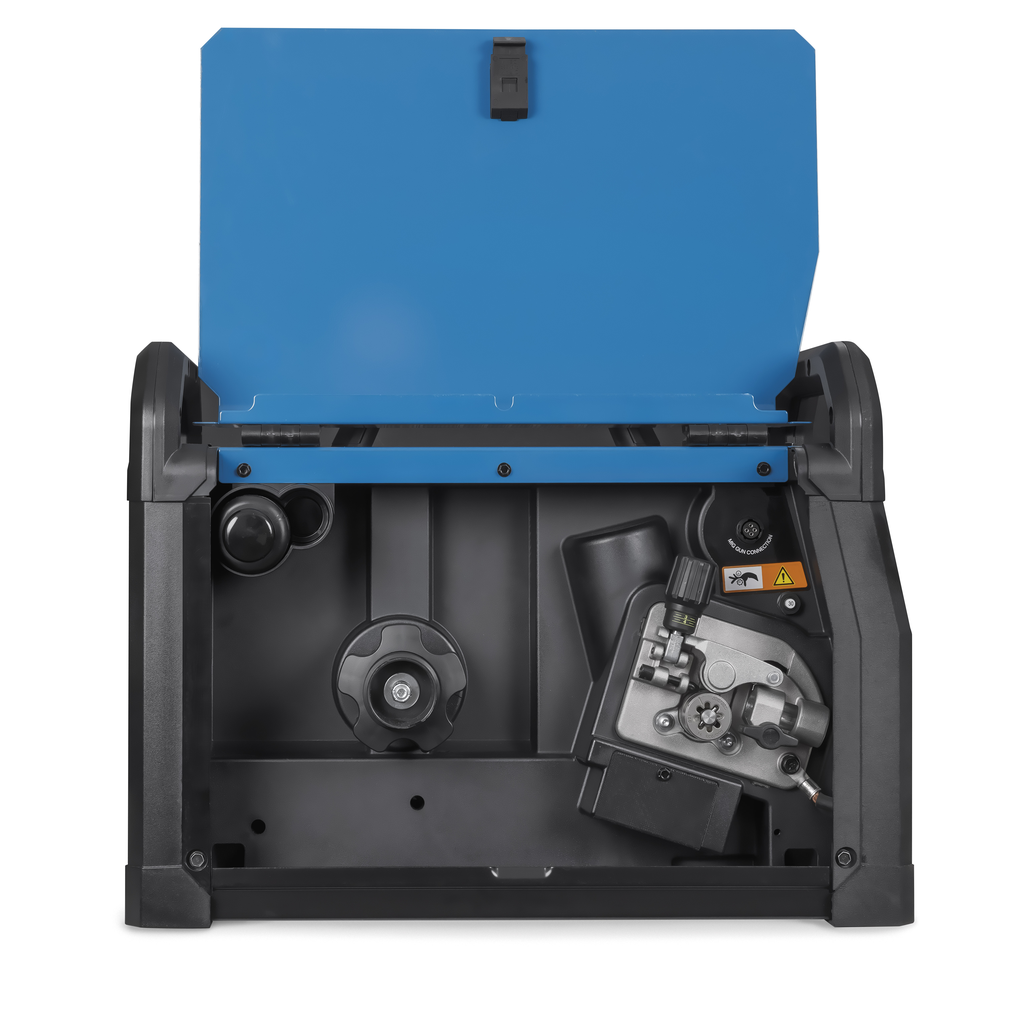

- Angled Drive System with Quick Select™ Drive Roll: Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.
- Quick Select™ Drive Roll: Makes setup quicker by offering three grooves - two for different size solid wire and a third for flux-cored wire.
- Inverter Technology: Inverter technology combines best-in-class arc characteristics with the portability of a 35-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.
- Auto Spool Gun Detect™: Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
- Generator Compatible: Will be able to operate and provide full output when powered by an engine-driven welder with 8000 Watt (8K) output or higher, such as a Miller Bobcat or Trailblazer. Limited output will occur when used with smaller generators.
Specifications
- Series: Multimatic®
- Max Open Circuit Voltage: 57
- Input Phase: 1-Phase
- Amperage Range: 20 A - 230 A
- Input Hertz: 50/60 Hz
- Input Power: 120/240 V
- Weldable Metals: Aluminum;Stainless Steel;Steel
- Current Type: DC
- Wire Feed Speed: 1.5 m/min - 15.2 m/min; 60 IPM - 600 IPM
- Country of Origin: United States
