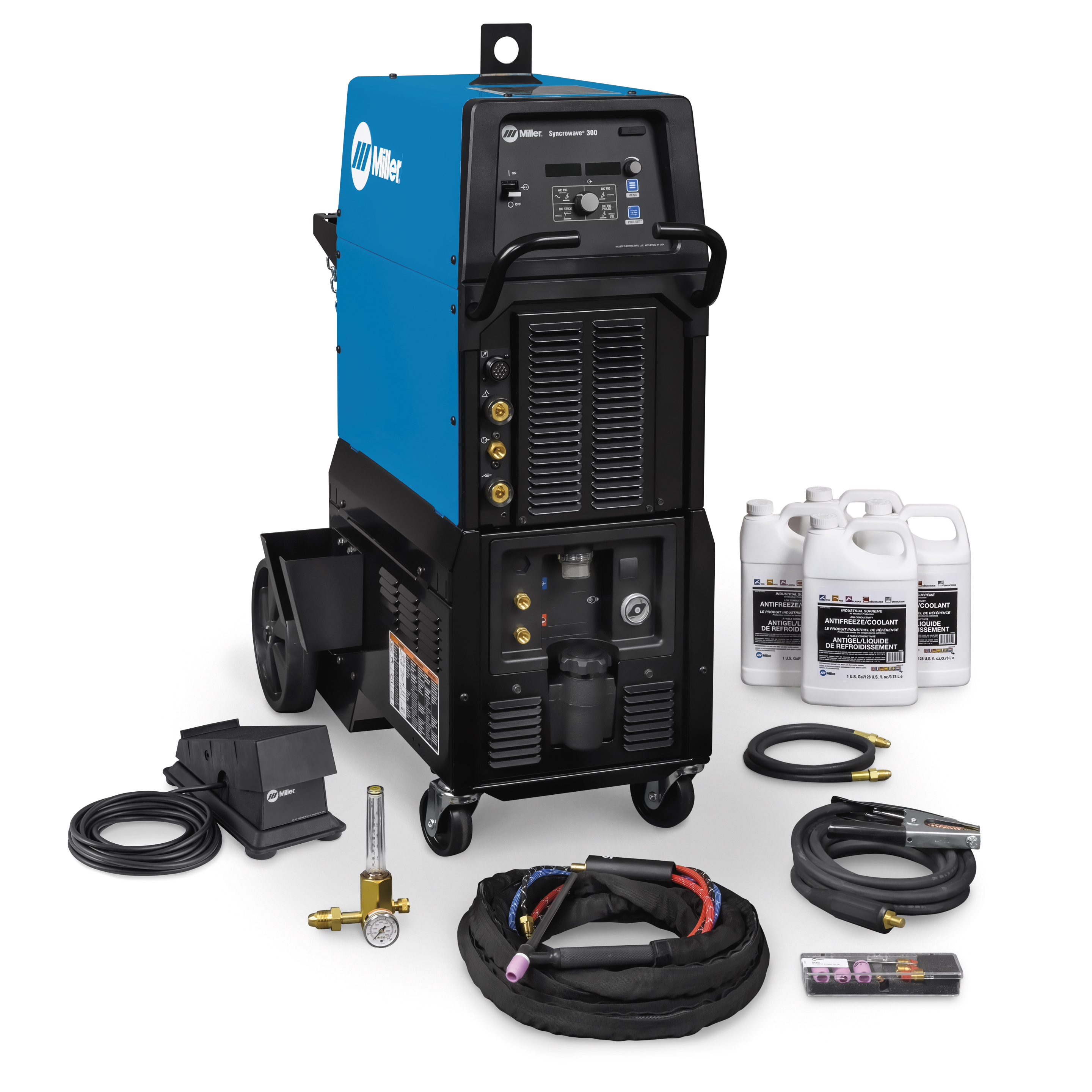

Miller Syncrowave 300 TIG Welder, Complete w/ Wired Foot Pedal

208/240/480 VAC

Unavailable for online order

Request A Quote

Description

For fabricators who need more TIG welding productivity and lower operating costs, new Miller Syncrowave machines are the energy efficient TIG welding power sources that make it easier for any welder to get more work done

Features

  • Intuitive user interface is simple to understand making it easy to adjust parameters. This means less time training new employees so more work gets done
  • Deliver more stable arcs and better arc-starting characteristics, making it easy for any welder to get more work done and do better work.
  • Save up to 33 percent on energy costs versus outdated welding equipment.
  • Smaller, lighter machines are easier to move around and improve workplace conditions.
  • Accepts either single- or three-phase input power
  • Circuit automatically links the power source to primary voltage being applied (208/240/480 V, single- or three-phase).
  • This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
  • Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.

Includes

  • Weldcraft™ W-280 torch kit and accessories (300990)
  • Syncrowave® 300
  • Running Gear
  • Coolant (4 one-gallon bottles of 043810)
  • Coolmate™ 3S
  • RFCS-14HD foot control (301589)

Specifications

  • Country of Origin: United States
  • Length: 36.3
  • Width: 20.5
  • Height: 43.9
  • Weight: 176.4
  • Input Hz: 50/60 Hz
  • Amperage Min (A): 5
  • Max Thickness - Steel - in: 0.5
  • Input Phase: 1- and 3-Phase
  • Max Open Circuit Voltage (VDC): 60
  • Current Type: AC / DC
  • Display Max Thickness - Aluminum: 3/8 in (9.5 mm)
  • Amperage Max (A): 300
  • Min Thickness - Aluminum - in: 0.02
  • Min Thickness - Steel - in: 0.01
  • Display Max Thickness - Steel: 1/2 in (12.7 mm)
  • Weldable Metals: Aluminum|Stainless Steel|Steel
  • Metal Type: Aluminum|Steel
  • Display Min Thickness - Aluminum: 0.015 in (0.4 mm)
  • Weld Output: CC
  • Amperage Range: 5 A - 300 A
  • Material Thickness Display: Aluminum 0.015 in (0.4 mm) - 3/8 in (9.5 mm)|Steel 0.012 in (0.3 mm) - 1/2 in (12.7 mm)
  • Input Voltage: 208 V|220/230/240 V|460/480 V
  • Display Min Thickness - Steel: 0.012 in (0.3 mm)

Downloads

Spec Sheet

Additional information

Weight 296.000 lbs
Dimensions 42.00 × 26.00 × 49.00 in
Vendor Part #

951000003
