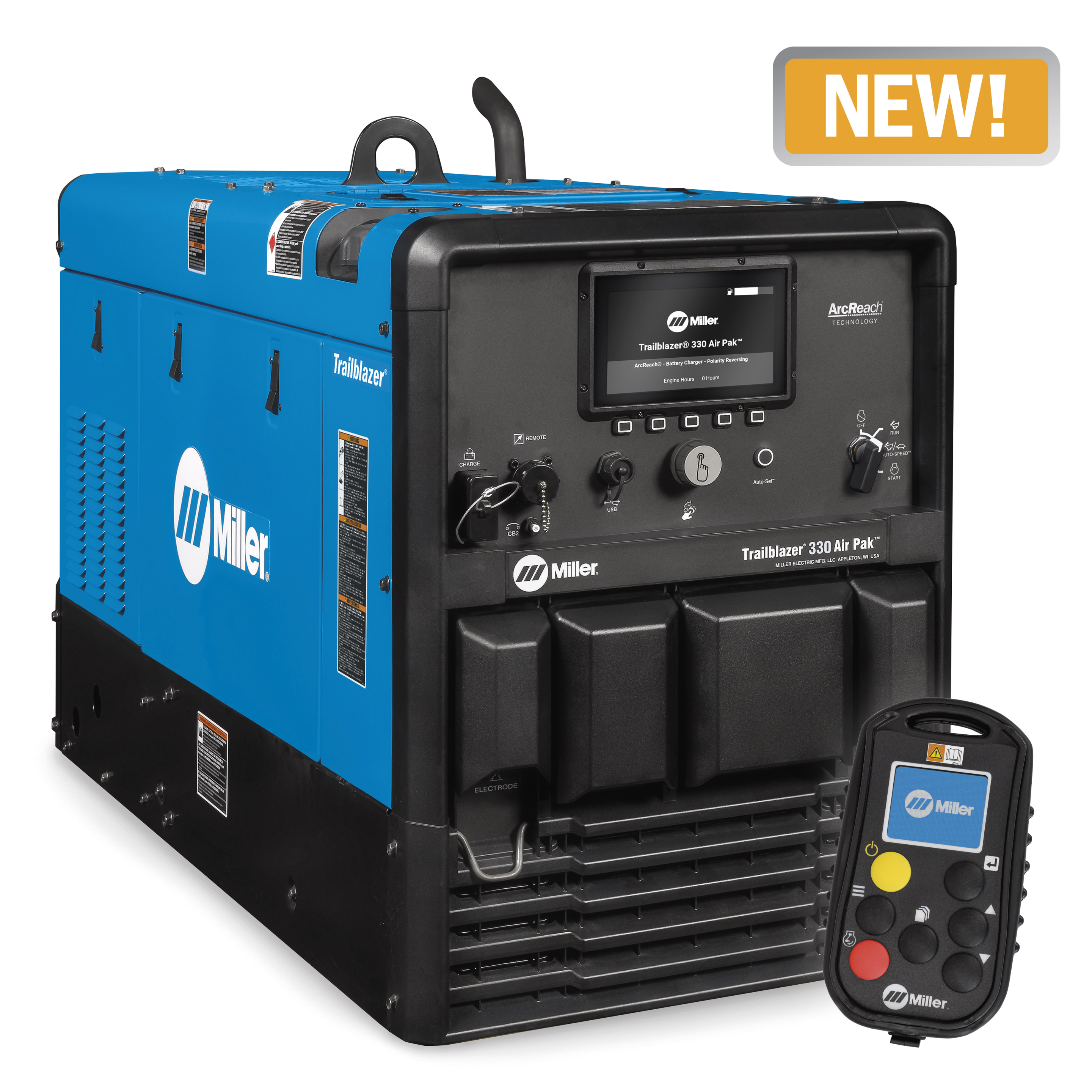

Miller Electric Trailblazer 330 Air Pak w/Excel Power, Battery Charge/Crank Assist, Polarity Reversing & Wireless Interface Control

Features

• Digital interface speeds machine setup and makes it less complicated.
• Easy arc starts and less spatter.
• Quiet and durable rotary-screw compressor delivers 30 CFM at 80-160 psi of air at 100% duty cycle while rated at 104° F.  It offers an average of three times the service life of traditional reciprocating compressors. Produces air when you need it; no more down time waiting for an external tank to fill. Airflow can be selected depending on tool requirements. Front panel air pressure adjustment makes it simple to dial in the correct air pressure for specific applications (80-160 psi)
• With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.
• Over 180 pounds lighter and 13 percent smaller than previous models.
• Machine provides up to 150 amps of DC power to quickly charge 12- and 24-volt batteries. Jobsite equipment with weak batteries can get up to 300 amps of crank assist power.
• Advanced Auto-Speed technology automatically adjusts engine speed to match weld and battery charge demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.
• Full auxiliary power at any setting.
• ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Power at idle — a Miller exclusive. Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle. With Excel power you can operate jobsite tools like grinders at quiet, fuel-saving speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power — available only from Miller.
• Get full control of your machine in the palm of your hand, from wherever you are on the jobsite, so you can work hassle free. With wireless interface control, you can: Change welding processes Adjust parameters Select and save preset programs Turn the machine on/off View service reminders And more! Extend time between fill ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.

Does Not Include

• Weld leads

Specifications

• Country of Origin: United States
• Engine Weld Speed: Advanced Auto-Speed(TM) technology: Varies engine speed from 2,400-3,600 rpm to match weld output
• Rated Output: CC/DC Stick/TIG 314 A at 32.5 V, 100% duty cycle, CV/DC MIG/FCAW 330 A at 30.5 V, 100% duty cycle
• Rated Carbon Diameter: 1/4 in (6.4 mm)
• Max Open Circuit Voltage (VDC): 107
• Fuel Type: Gasoline
• Sound Rating: 69.5 dB @ 150 amps and 75.3 dB @ max weld
• Engine Brand: Kohler
• Horsepower (hp): 27
• Single-Phase Generator Peak Power (W): 12000
• Weld Output: CC/CV
• Fuel Tank Size: 11 Gallon
• Single-Phase Generator Continuous Power (W): 10500
• Engine Idle Speed: 2400 RPM
• Min DC Welding Amperage: 20
• Max DC Welding Amperage: 330
• Amperage Range: 20 A - 330 A
• Current Type: DC
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Compressed Air: yes
• Compressor Brand: Rotary-Screw Compressor
• Compressor Free Air Delivery: 30 cfm (0.85 m3 /min.) at 3,600 rpm / 28 cfm (0.79 m3 /min.) at 3,000 rpm
• Compressor Working Pressure: 80-160 psig
• Compressor Duty Cycle: 100%
• Compressor Automatic Shutdown: High pressure (160 psi)
• Battery Charge: 10-150 A
• Crank Assist: 300 A, 12/24 V
