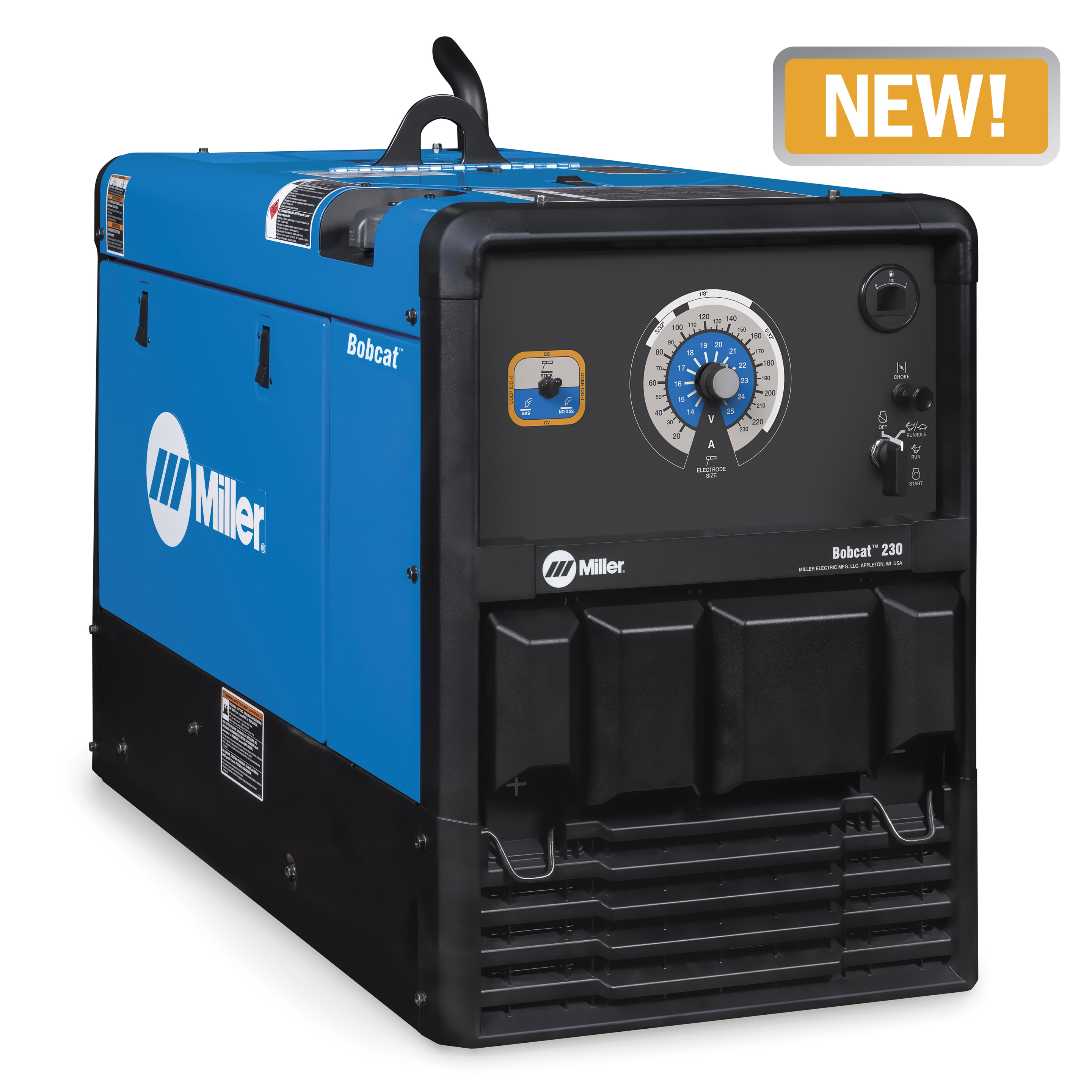

Miller Electric Bobcat 230 (Kohler)
Bobcat 230 (Kohler)
Unavailable for online order
Request A Quote
Description
Reliable multiprocess engine-driven welder primarily used for Stick welding and creating power. Cost-effective engine-driven welder designed for maintenance and repair operations, construction, field fabrication, farm/ranch and work trucks.
Features
- Full auxiliary power at any setting.
- Easy arc starts and less spatter.
- Over 100 pounds lighter and 13 percent smaller than previous models.
- Single knob adjustment for quick and precise setup.
- Kohler or Vanguard.
- With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.
Does Not Include
- Weld leads
Specifications
- Country of Origin: United States
- Length: 37.06
- Width: 20.13
- Height: 26.5
- Weight: 376
- Engine Weld Speed: 3600
- Rated Output: CC/DC Stick 230 A at 29.2 V, 100% duty cycle, CV/DC MIG/FCAW 230 A at 25.5 V, 100% duty cycle
- Fuel Type: Gasoline
- Sound Rating: 64 dB @ idle and 73 dB @ weld
- Engine Brand: Kohler
- Horsepower (hp): 23.5
- Single-Phase Generator Peak Power (W): 11000
- Weld Output: CC / CV
- Fuel Tank Size: 11 Gallon
- Single-Phase Generator Continuous Power (W): 9500
- Engine Idle Speed: 2300 RPM
- Min DC Welding Amperage: 20
- Max DC Welding Amperage: 230
- Amperage Range: 20 A - 230 A
- Current Type: DC
- Weldable Metals: Stainless Steel|Steel
Downloads
Additional information
| Weight | 385.000 lbs |
|---|---|
| Dimensions | 37.06 × 20.13 × 26.50 in |
| Vendor Part # | 907824 |
