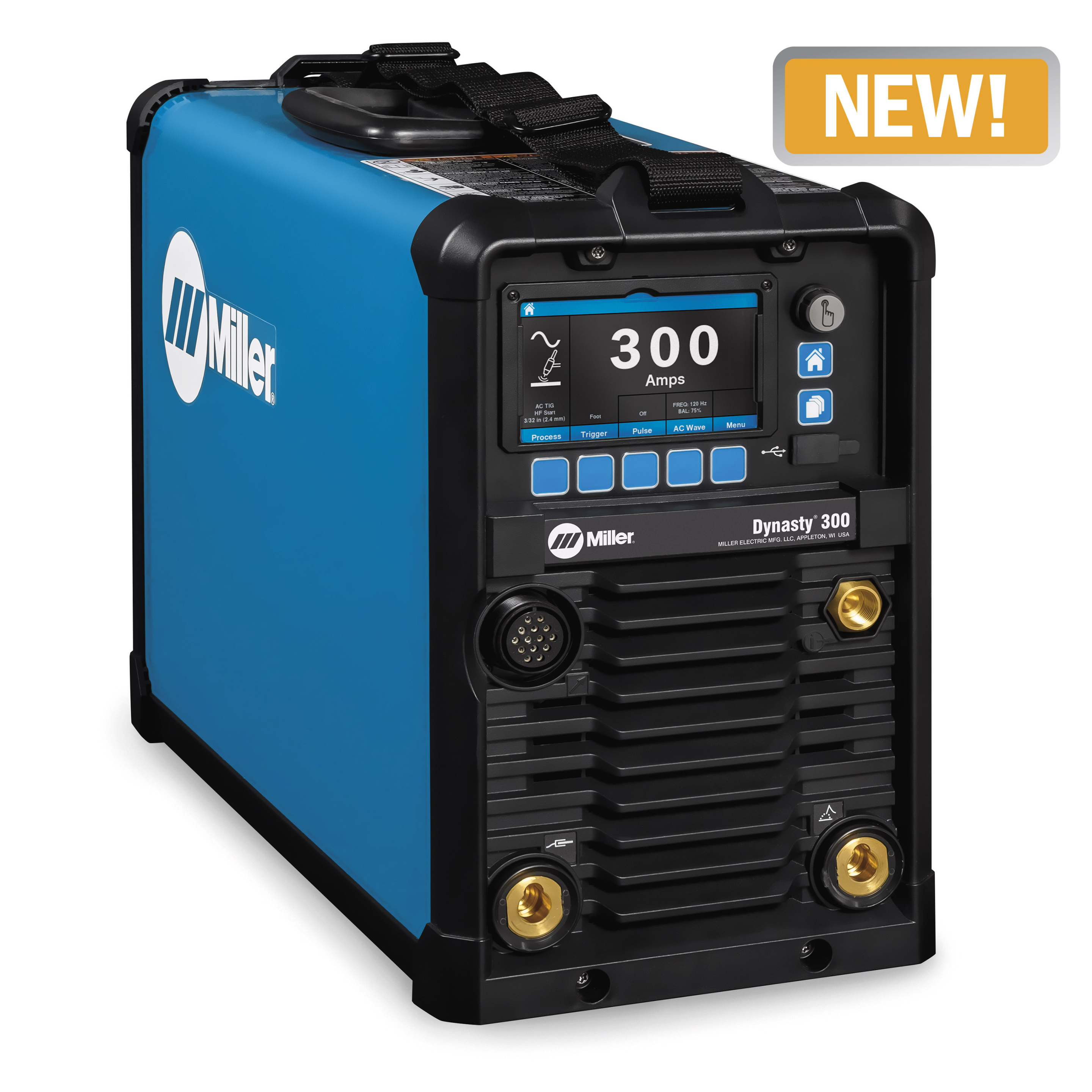

Miller Dynasty 300 Multiprocess Welder

Features

• CV output of the power source gives this unit MIG process capabilities when paired with an ArcReach® 8 or 12 (or other voltage-sensing feeder).
• Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler
• Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine
• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking
• Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Allows easy naming, saving and recalling of favorite weld settings.
• Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• For portability and reliability this inverter power supply allows for any single-phase input voltage hookup (208–600 V) with no manual linking, providing convenience in any job setting IDeal solution for dirty or unreliable power
• High-frequency (HF) arc starter for non-contact arc initiation Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise
• Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.

Includes

• Adjustable Shoulder Strap
• (2) 50 mm Dinse style connectors
• 8 ft. (2.4 m.) Weld Cable with Tweco®-style connectors to power feeder
• 8 ft. (2.4 m.) Primary Cord
• Dynasty 300 Multiprocess
• (2) Dinse/Tweco® Adapters (042465)

Does Not Include

• TIG torch
• TIG torch adapter
• Work cables
• TIG remote fingertip/foot control

Specifications

• Country of Origin: United States
• Length: 22.5
• Width: 8.6
• Height: 13.6
• Weight: 55
• Rated Carbon Diameter: 3/16 in (4.8 mm)
• Input Phase: 1- and 3-Phase
• Max Open Circuit Voltage (VDC): 60
• Input Hz: 50/60 Hz
• Input Voltage: 208 V|220/230/240 V|380/400 V|460/480 V|575/600 V
• Weldable Metals: Aluminum|Specialty Metals|Stainless Steel|Steel
• Amperage Min (A): 1
• Current Type: AC / DC
• Weld Output: CC/CV
• Amperage Range: 1 A - 300 A
