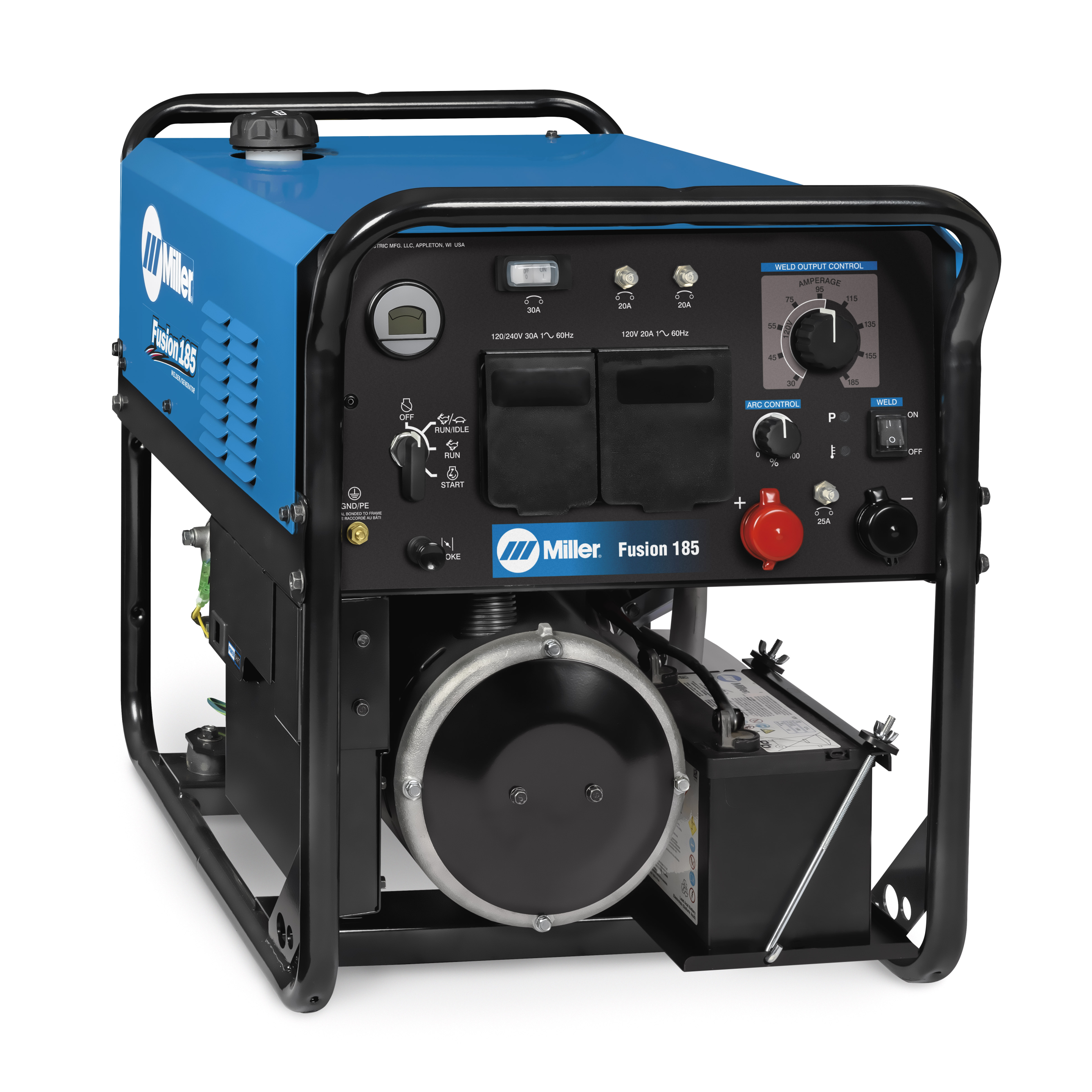

Miller Electric Fusion 185

Fusion 185

Unavailable for online order

Request A Quote

Description

The Fusion 185 delivers a smooth, stable arc with PowerShift technology utilizing either engine power or 120/240-volt utility power, providing a unique combination of versatility and productivity in a lightweight package.

Features

  • The Fusion engine-driven welder weighs 242 pounds. That’s up to 50 pounds less than similar machines, so moving the Fusion is easier and faster. Less time is spent waiting and more work can get done.
  • Uses inverter technology to deliver a smooth, stable stick arc that’s forgiving of variations in arc length and travel speed, so it’s easier to produce clean welds that meet specifications and avoid the time and expense of rework.
  • PowerShift technology provides weld capabilities using either the Fusion engine or 120/240-volt utility power. You’ll have the confidence of knowing that you can weld virtually anywhere - outdoors and indoors - with just one machine.
  • The multi-voltage plug (MVP) make it easy to connect the welder to either 120- or 240-volt power.

Does Not Include

  • Weld leads

Specifications

  • Country of Origin: United States
  • Engine Weld Speed: 3,600
  • Rated Output: 185 A at 26.4 V, 20% duty cycle110 A at 24.4 V, 100% duty cycle
  • Fuel Type: Gasoline
  • Engine Brand: Kohler
  • Horsepower (hp): 13.4
  • Single-Phase Generator Peak Power (W): 6500
  • Weld Output: CC
  • Fuel Tank Size: 6.25 gal. (23.7 L)
  • Single-Phase Generator Continuous Power (W): 6200
  • Engine Idle Speed: 2500 RPM
  • Min DC Welding Amperage: 30
  • Max DC Welding Amperage: 185
  • Amperage Range: 30 A - 185 A
  • Input Voltage: 110/115/120 V|220/230/240 V
  • Current Type: DC
  • Weldable Metals: Steel

Downloads

Spec Sheet
CSA Cert

Additional information

Weight 270.000 lbs
Dimensions 25.00 × 32.00 × 21.00 in
Vendor Part #

907781
