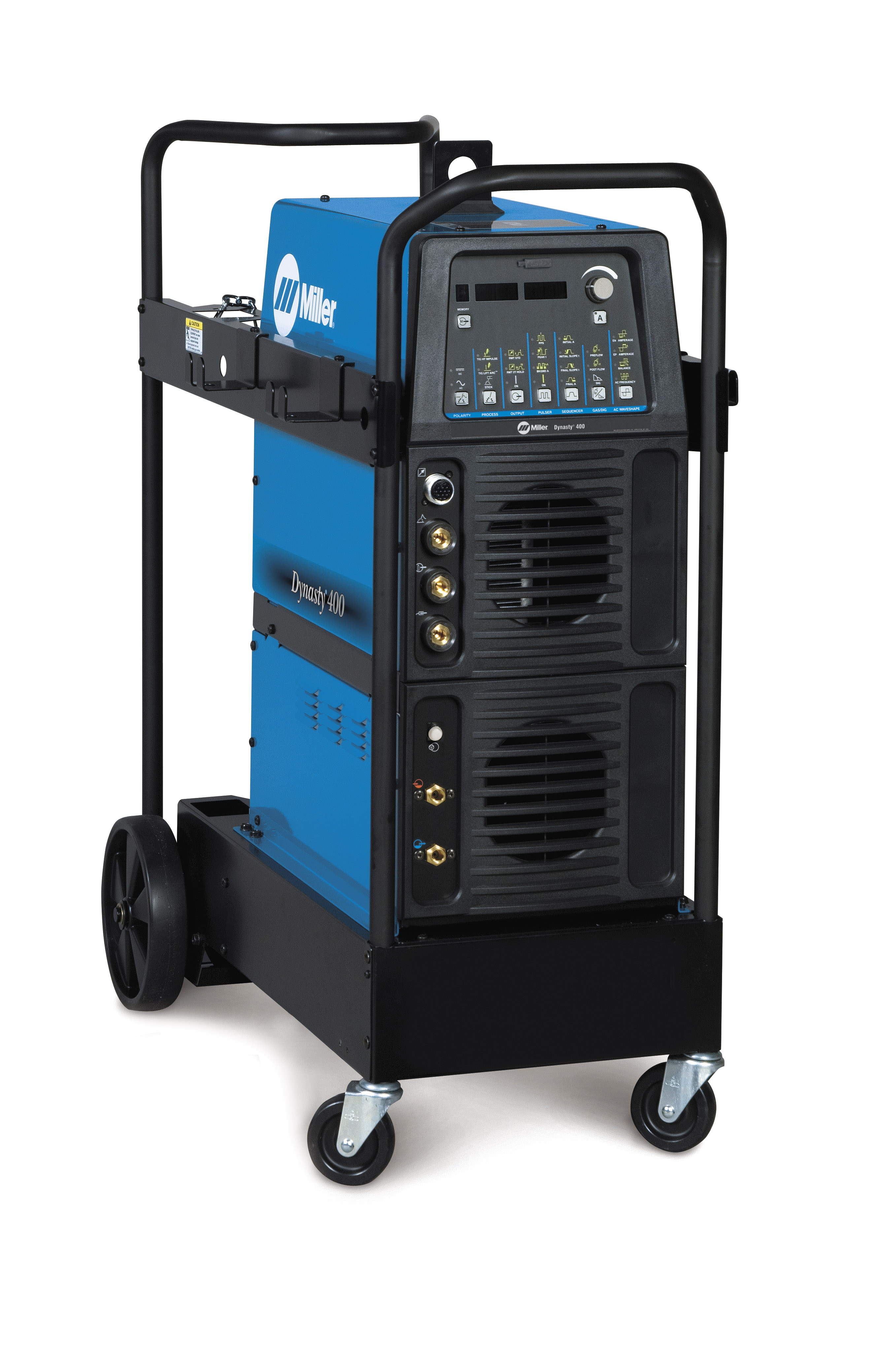

Miller Dynasty 400 208-575 V, TIGRunner

Features

• AC TIG Features Independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode   Extended AC balance (30–99%) controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum.   AC frequency (20–400 hz) controls the width of the arc cone and the force of the arc.   DC TIG Features   Exceptionally smooth and precise arc for welding exotic materials.   High-speed DC TIG pulse controls - Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage
• Advance Squarewave provides a fast freezing puddle, deep penetration, and fast travel speeds.   Soft Squarewave is used for a soft buttery arc with maximum puddle control and good wetting action   Sine wave is for customers that like a traditional arc. It is quiet with good wetting   Triangular wave reduces the heat input and is good on thin aluminum. It provides fast travel speeds.
• For more consistent non-contact starts and greater reliability compared to traditional HF arc starters.
• Allows meters to be calibrated for certification
• Allows for any input voltage hookup (208 - 575 V) with no manual linking, providing convenience in any job setting IDeal solution for dirty or unreliable power
• An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 3.5. The power switch on the Dynasty also activates the receptacle to help prevent torch failure
• Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.
• Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler
• Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking
• Control the width of the arc cone and can improve directional control of the arc with adjustments between 50-150 Hertz.

Includes

• Dynasty® 400
• Coolmate™ 3.5
• Runner Cart
• Quick Reference Guide

Does Not Include

• Coolant (043810)
• Weldcraft™ torch kit
• Weld leads
• Remote control

Specifications

• Country of Origin: United States
• Length: 43.75
• Width: 23.125
• Height: 43.125
• Weight: 251
• Input Hz: 50/60 Hz
• Amperage Min (A): 3
• Input Phase: 1- and 3-Phase
• Max Open Circuit Voltage (VDC): 75
• Current Type: AC / DC
• Amperage Max (A): 400
• Weldable Metals: Aluminum|Specialty Metals|Stainless Steel|Steel
• Weld Output: CC
• Amperage Range: 3 A - 400 A
• Input Voltage: 208 V|220/230/240 V|380/400 V|460/480 V|575 V

Downloads

CSA Cert
