Miller Electric Maxstar 161 STL 120-240 V, X-Case, Fingertip Contractor Package, TIG/Stick Welder

Features

• Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your to common 120 and 240 volt power receptacles.
• Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based machine can be taken from location to location.
• By utilizing an inverter-based power source in the Maxstar® 161, superior arc starts and excellent weld puddle control are provided in both the TIG and Stick settings - all in a small, light-weight package.
• Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
• With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes.
• With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.
• With a built-in gas solenoid, the Maxstar® 161 eliminates the need for a bulky TIG torch with a gas valve
• Allows users to weld thinner materials than other machines in this category.
• 1. Turn power on. 2. Select process: High-Frequency TIG, Lift-Arc™ TIG, Stick, or 6010 Stick. Set amperage. 3. Then weld! It’s as easy as 1, 2, 3.

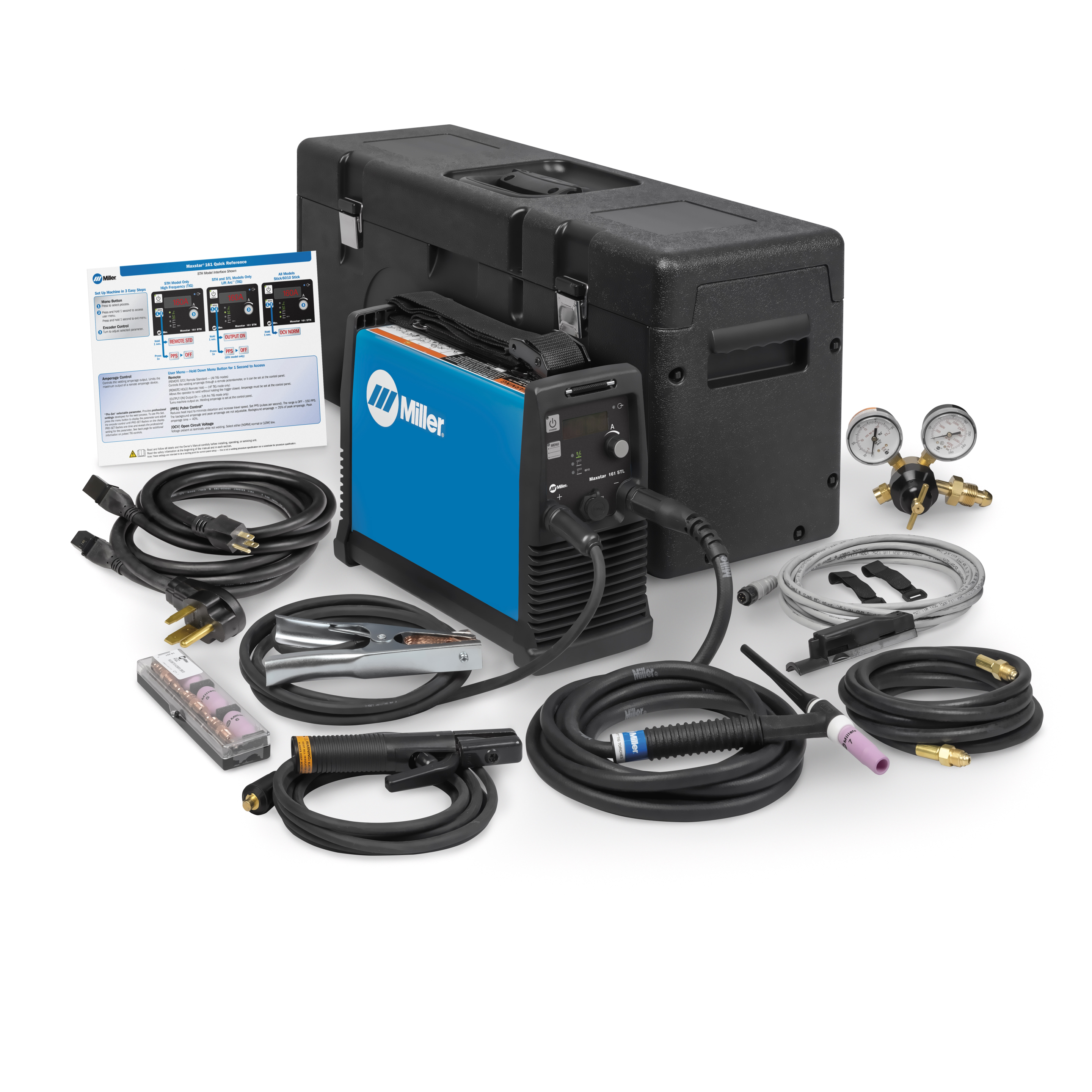

Includes

• Maxstar® 161 STL
• 6.5 ft. (2 m.) primary cords for 120 V and 240 V
• 13 ft. (4 m.) stick electrode holder with 25 mm. Dinse-style connector
• 10 ft. (3 m.) work clamp with 25 mm. Dinse-stlye connector
• Adjustable handle/shoulder strap
• 12.5 ft. (3.8 m) Weldcraft™ A-150 TIG torch
• RCCS-6M remote fingertip control (195184)
• AK2C accessory kit
• Protective Miller® X-Case™ (301429)
• Quick Reference Guide

Specifications

• Country of Origin: United States
• Max Open Circuit Voltage (VDC): 48
• Current Type: DC
• TIG Specs: [[0691136c07f5]], [[113bff35ab42]], [[0a5bd7ab9607]], [[a5af3cd0b6aa]], [[773d1b3c1d8d]], [[d347fa3190de]]
• Material Thickness: [[80c7a4a2dd6a]], [[a6743827510e]], [[15874614e230]], [[6619e6133272]], [[61815b3485a6]]
• Weldable Metals: Stainless Steel|Steel
• Metal Type: Steel
• Weld Output: CC
• Input Phase: 1-Phase
• Amperage Min (A): 5
• Amperage Max (A): 160
• Amperage Range: 5 A - 160 A
• Min Thickness - Steel - in: 0.02
• Max Thickness - Steel - in: 0.19
• Display Min Thickness - Steel: 0.020 in. (0.5 mm)
• Display Max Thickness - Steel: 3/16 in. (4.8 mm)
• Input Voltage: 110/115/120 V|220/230/240 V
• Input Hz: 50/60 Hz
• Material Thickness Display: Steel 0.020 in. (0.5 mm) - 3/16 in. (4.8 mm)
