Miller Electric Maxstar® 161 S 120-240 V, Stick Package
Maxstar® 161 S 120-240 V, Stick Package
Description
Best of class - provides maximum portability and performance in the most compact Stick package in the industry. Packs dependability and performance all in one machine.
Features
- With Miller's Adaptive Hot Start™ technology, you no longer have to worry about those difficult-to-strike electrodes
- Even on the difficult-to-run electrodes like E6010
- Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without the use of any tools to allow your to common 120 and 240 volt power receptacles.
- Weighing in at 13 lbs. and featuring a convenient handle/shoulder strap, this little inverter-based machine can be taken from location to location.
- With the Stick-Stuck feature the machine detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.

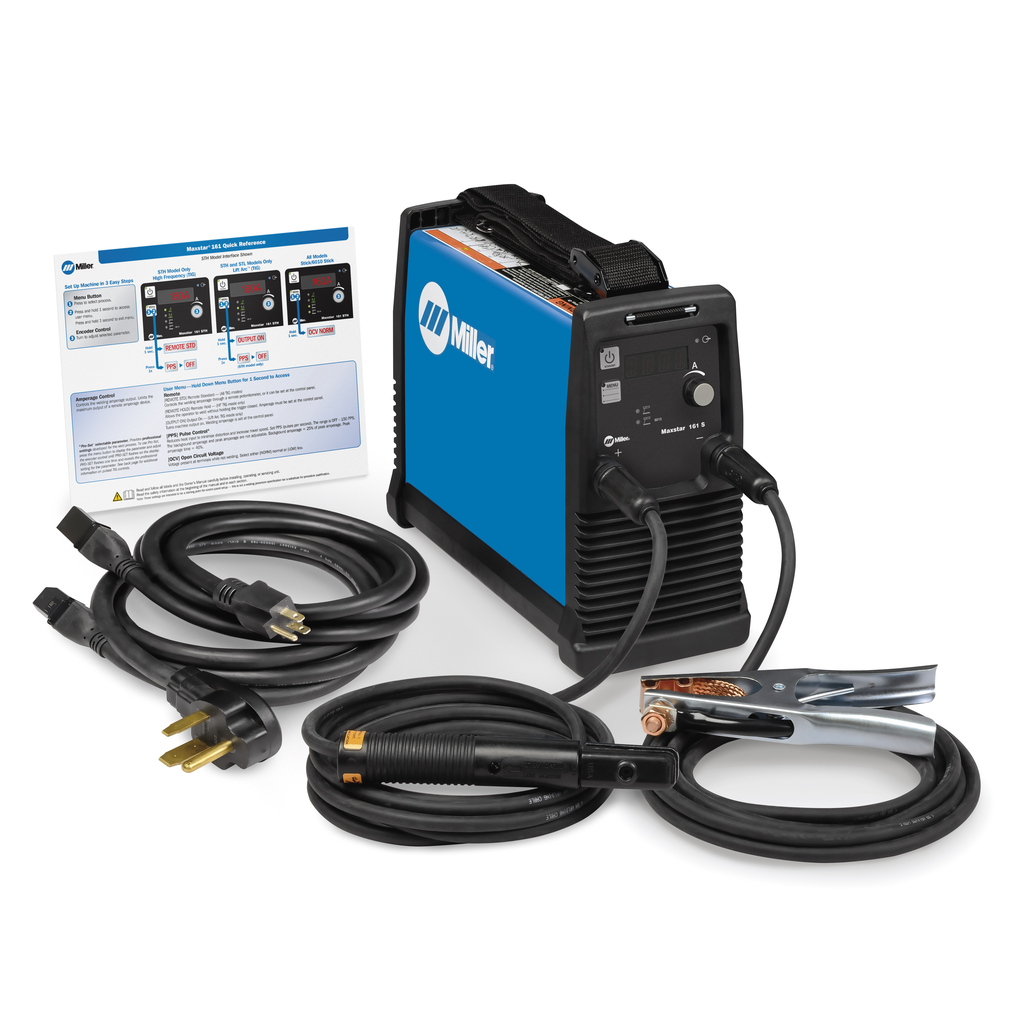

Includes
- Maxstar® 161 S
- 6.5 ft. (2 m.) primary cords for 120 V and 240 V
- 13 ft. (4 m.) stick electrode holder with 25 mm. Dinse-style connector
- 10 ft. (3 m.) work clamp with 25 mm. Dinse-stlye connector
- Adjustable handle/shoulder strap
Specifications
- Country of Origin: United States
- Welding Amperage Range: [[0d14be951c79]] - [[177eb8abd10a]]
- Max Open Circuit Voltage (VDC): 48
- Weldable Metals: Steel|Stainless Steel
- Range Max (DC): 160
- Weld Output: CC
- Current Type: DC
- Range Min (DC): 20
- Input Phase - To Be Deleted: 1Phase
- Input Phase: 1-Phase
- Input Voltage: 110/115/120 V|220/230/240 V
- Input Hz: 50/60 Hz
Downloads
Additional information
| Weight | 24.000 lbs |
|---|---|
| Dimensions | 16.00 × 12.00 × 14.00 in |
