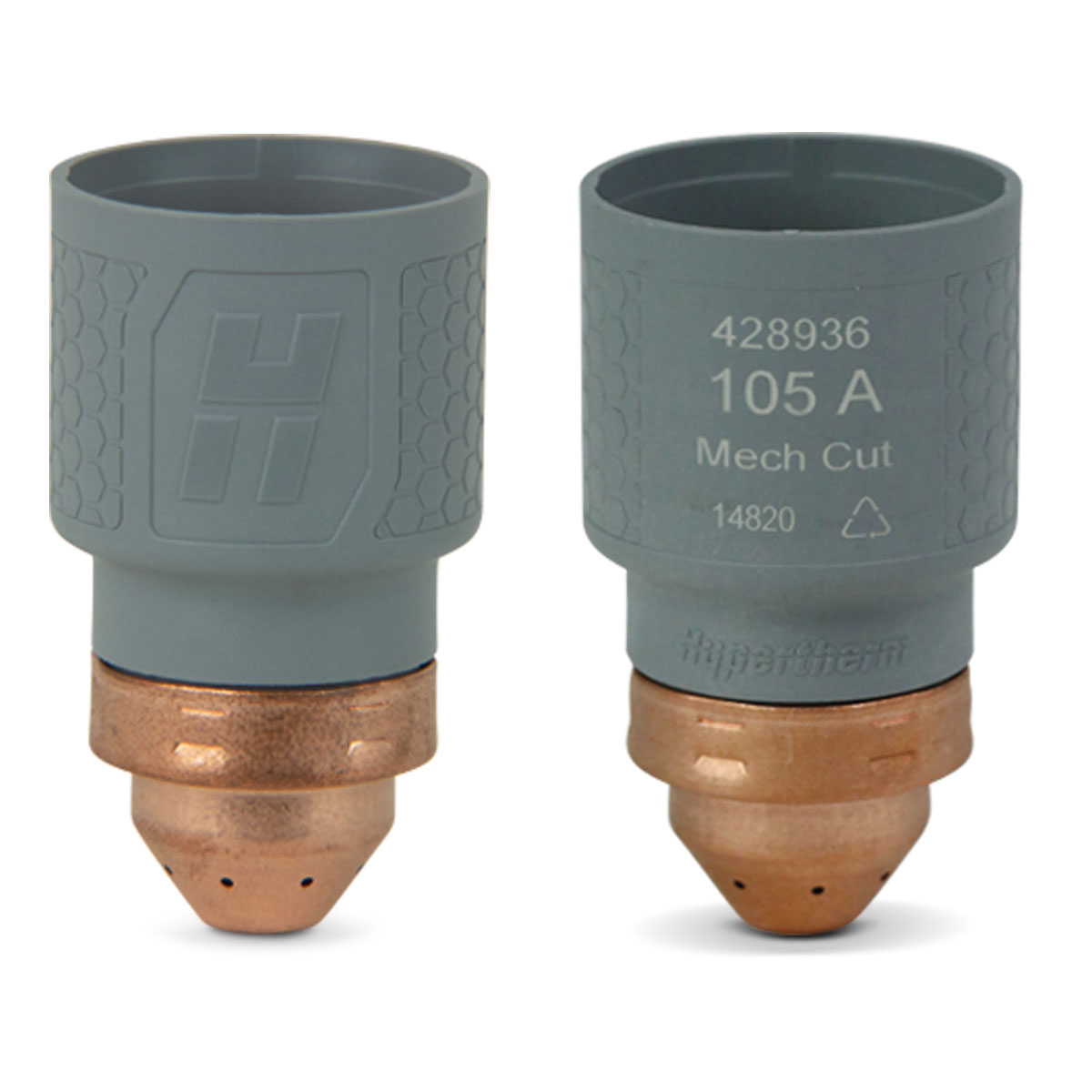

Hypertherm SmartSYNC Cartridge 105 A Mechanized Cutting 428936

Features

• 105 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 10 mm (3/8″) to 20 mm (3/4″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting
• When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available

Specifications

• Weight: .4316
• Product Line: Powermax
• Max Output Currents: 105 A
• Min Output Currents: 30 A
• Platforms: Automated | Pipe and Tube | Robotic | Track | XY Cutting
• Technologies: Plasma
