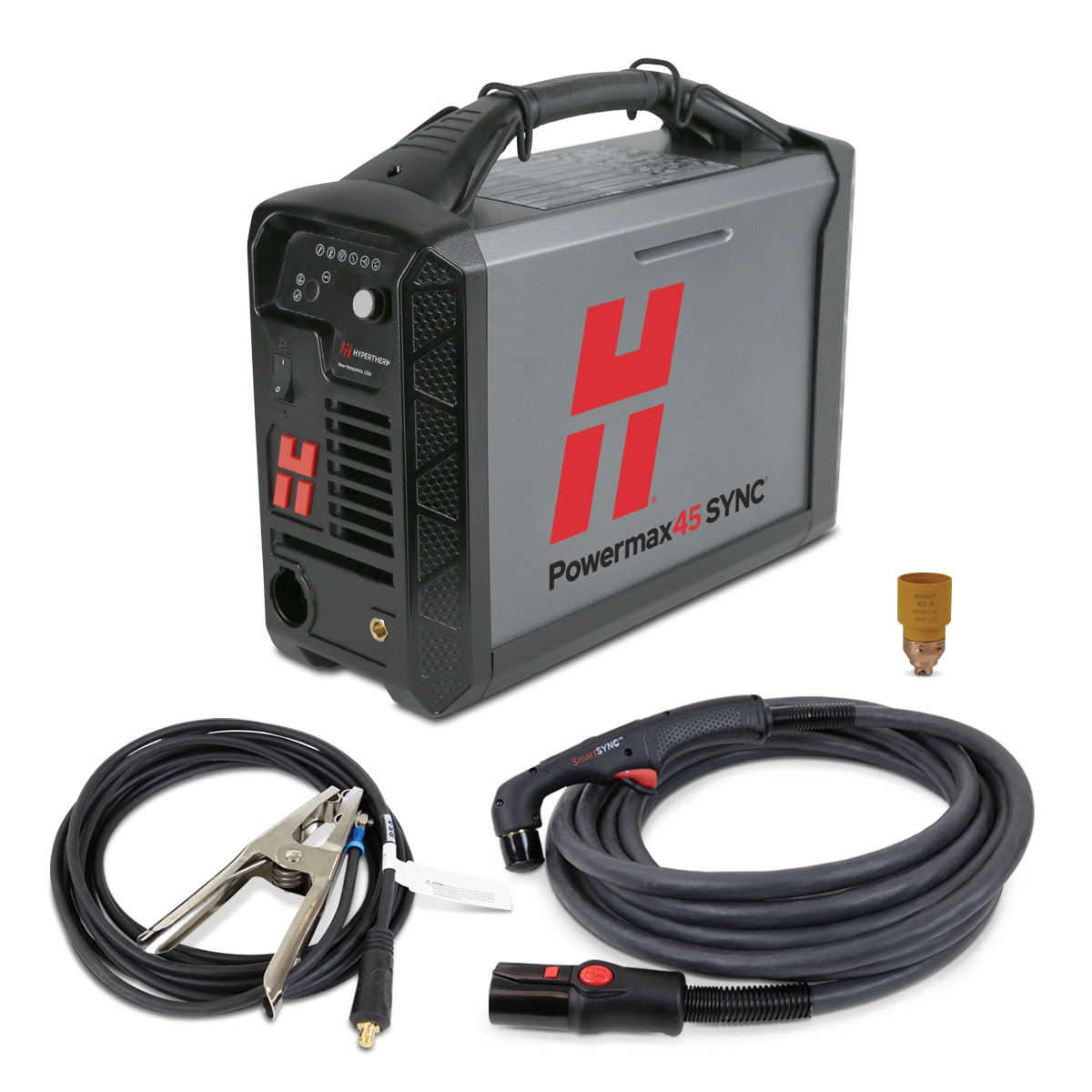

Hypertherm Powermax45 SYNC CSA HS 230V/75° TCH 20′

Features

• Simplified system operation minimizes the time and costs spent on training and troubleshooting. Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts. Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.
• Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups. RFID-enabled SmartSYNC™ torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors. Less operator fatigue when using handheld torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.

Specifications

• Rated Output V Vdc: 145 VDC
• Severance Capacities: 29 mm (1-1/8") @ 125 mm/min (5 ipm)
• Remote Pendants: No
• Open Circuit V Ocv: 275 VDC
• Frequencies: 50-60 Hz
• Work Cables: Yes
• Gouge Capacities: 2.6 kg (5.8 lbs)
• Min Output Currents: 9 A
• Input Currents: 39/32 A
• Gouge Profiles: 3.0 x 5.3 mm (.12" x .21")
• Input Volts And Amps: 200-230 V, 39/32 A
• Rec Flow For Cutting: 188 l/min or 400 scfh (6.7 scfm) @ 90 psi (5.9 bar)
• Gasses: Air (Clean | Dry | Oil-Free), F5, Nitrogen
• Industries: Agriculture, Artwork, Signs & Ornamentation, Automotive, Construction, Energy, HVAC, Mechanical Contractors, Metal Fabriactors, Mining, Pipe & Pipelines, Pressure vessel/tank fabricators, Scrapping, Shipbuilding, Steel Service Centers, Structural Steel, Transportation
• Rec Cut Capacity Fast: 16 mm (5/8") @ 500 mm/min (20 ipm)
• Rec Flow For Gouging: 165 l/min or 350 scfh (5.8 scfm) @ 60 psi (4.1 bar)
• Duty Cycles 40C: 100% @ 32 A, 200 - 240 V, 50% @ 45 A, 200 - 240 V, 60% @ 41 A, 200 - 240 V
• Mch Pierce Cap W Athc: 16 mm (5/8")
• Torch Lead Lengths: 6.1 m (20')
• Warranties: Power Supply: 3-year, Torch: 1-year
• Certification Models: CSA
• Materials: Aluminum, Mild Steel, Stainless Steel
• Torch Angles: 75⁰
• Voltage Tolerances: +10%, -10%
• Max Output Currents: 45 A
• Ps Dimen Incl Handle: 442 x 173 x 356 mm ( 17.4 x 6.8 x 14.0")
• Mch Pierce Cap No Athc: 12 mm (1/2")
• Technologies: Plasma
• Input Current Watts: 6.9 kW
• Phases: 1-PH
• Platforms: Handheld
• Power Supply Types: Inverter - IGBT
• Rec Cut Capacity Slow: 22 mm (7/8") @ 250 mm/min (10 ipm)
• Motor Gen For Full Arc: 12.5 kVA or 10 kW
• Power Cable Lengths: 3m (10')
• Rec Flow For Marking: 188 l/min or 400 scfh (6.7 scfm) @ 90 psi (5.9 bar)
• Ingress Protection: IP23S
• Input Voltages: 200-240 V
• Weight: 18.6 lbs
