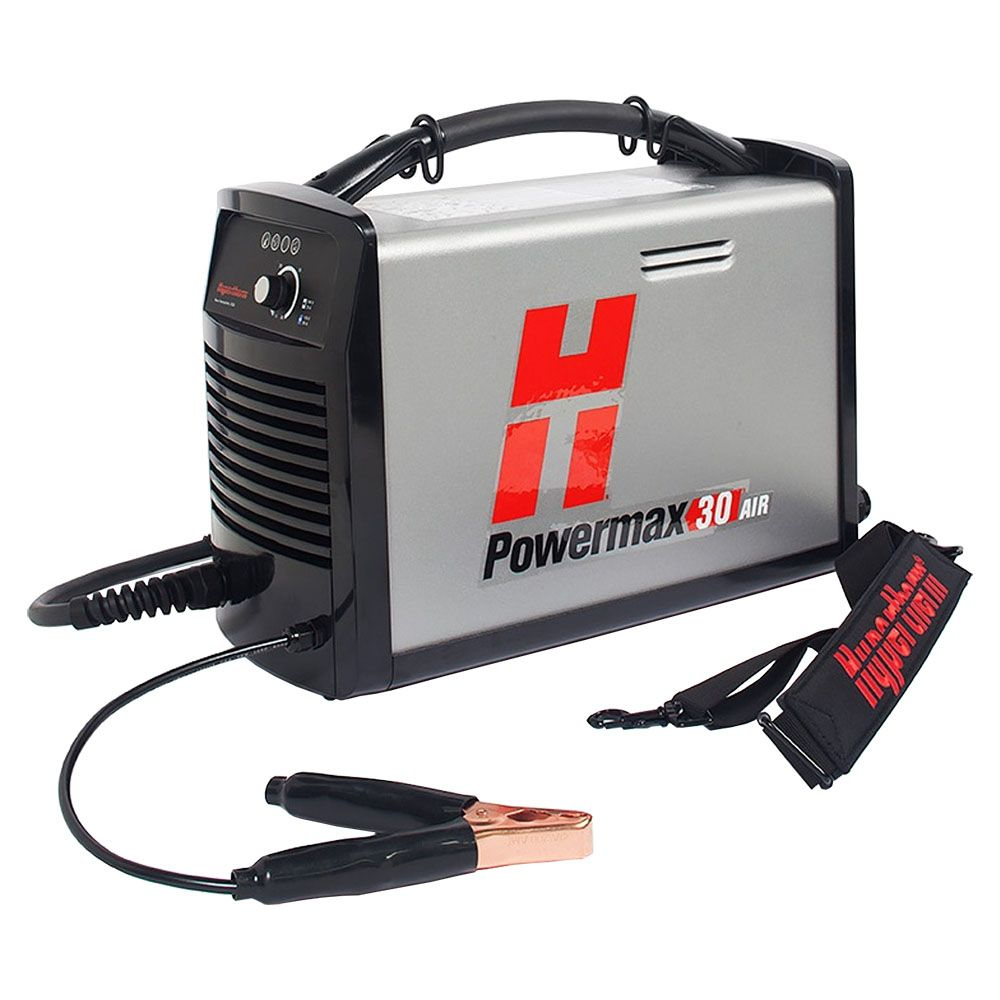

Hypertherm PMX30 AIR CSA HND SYS 15′ AMER BLT ED

Specifications

• Input Current Watts: 2.5 kW
• Frequencies: 50-60 Hz
• Materials: Aluminum, Mild Steel, Stainless Steel
• Rated Output V Vdc: 83 VDC
• Remote Pendants: No
• Max Output Currents: 30 A
• Power Cable Lengths: 3m (10')
• Motor Gen For Full Arc: 6.8 kVA or 5.5 kW
• Voltage Tolerances: +20%, -15%
• Severance Capacities: 12 mm (1/2") @ 125 mm/min (5 ipm)
• Work Cables: Yes
• Phases: 1-PH
• Power Supply Types: Inverter - IGBT
• Rec Cut Capacity Fast: 8 mm (5/16") @ 500 mm/min (20 ipm)
• Torch Lead Lengths: 4.5 m (15')
• Open Circuit V Ocv: 240 VDC
• Input Volts And Amps: 120-240 V, 28.7/15 A
• Industries: Agriculture, Artwork, Signs & Ornamentation, Automotive, Construction, Energy, HVAC, Mechanical Contractors, Metal Fabriactors, Mining, Pipe & Pipelines, Pressure vessel/tank fabricators, Scrapping, Shipbuilding, Steel Service Centers, Structural Steel, Transportation
• Input Voltages: 120-240 V
• Ingress Protection: IP23S
• Ps Dimen Incl Handle: 420 x 195 x 333 mm (16.5 x 7.7 x 13.1")
• Min Output Currents: 15 A
• Technologies: Plasma
• Platforms: Handheld
• Gasses: Air (Clean | Dry | Oil-Free)
• Duty Cycles 40C: 20% @ 30 A, 120 V, 35% @ 30 A, 240 V
• Rec Cut Capacity Slow: 10 mm (3/8") @ 250 mm/min (10 ipm)
• Torch Angles: 75⁰
• Certification Models: CSA
• Input Currents: 28.7/15 A
• Weight: 14 lbs
