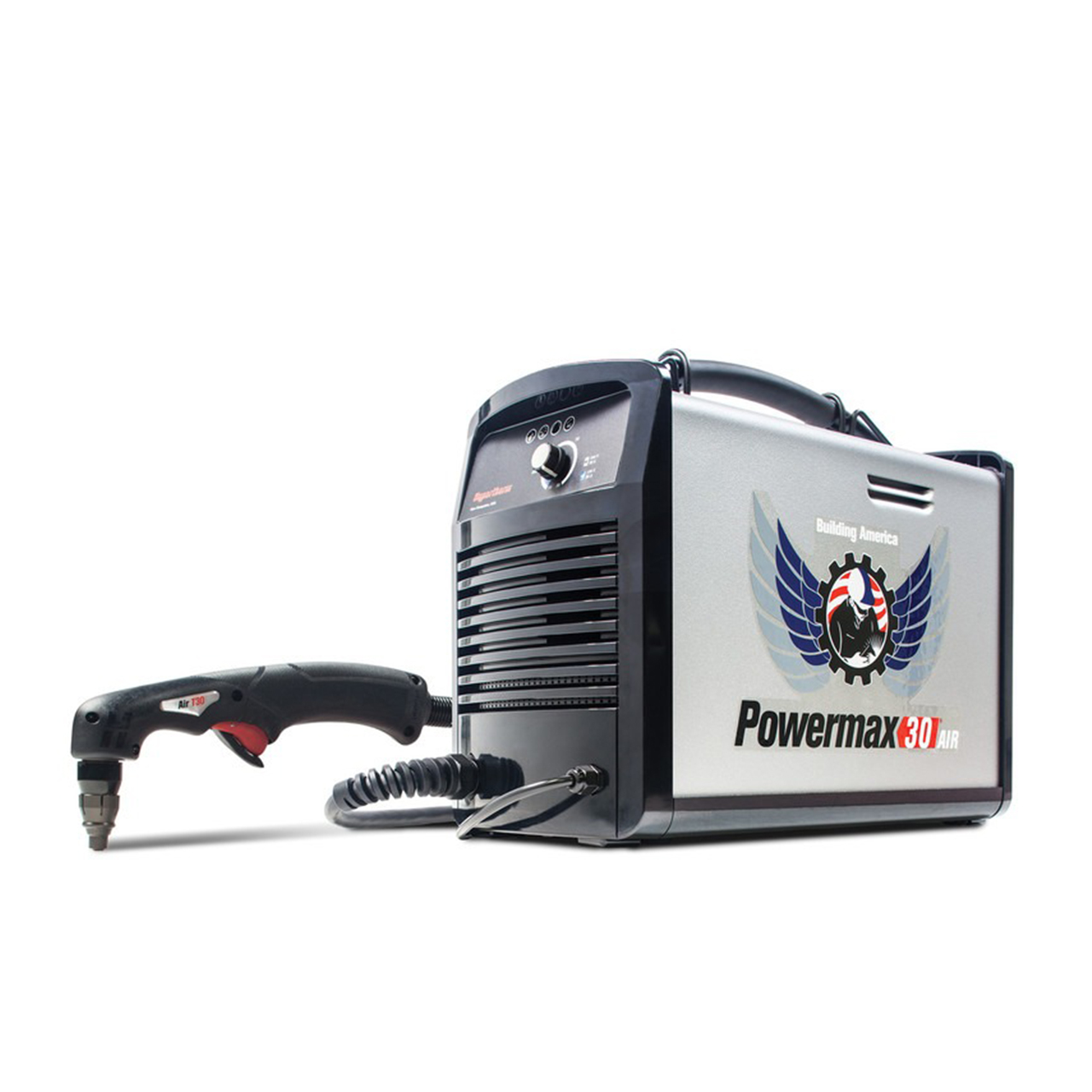

Hypertherm Powermax30 AIR w/ 75° Hand Torch 15 ft 088096

120-240V 1-PH, CSA, plus 75° handheld torch w/consumables, 4.5m (15′) lead, American built ed

Unavailable for online order

Request A Quote

Specifications

  • Weight: 14
  • Product Line: Powermax
  • Gasses: Air (clean, dry, oil-free)
  • Certification Models: CSA
  • Duty Cycles 40c: 20% @ 30 A, 120 V | 35% @ 30 A, 240 V
  • Frequencies: 50-60 Hz
  • Industries: Agriculture | Artwork, Signs & Ornamentation | Automotive | Construction | Energy | HVAC | Mechanical Contractors | Metal Fabriactors | Mining | Pipe & Pipelines | Pressure vessel/tank fabricators | Scrapping | Shipbuilding | Steel Service Centers | Structural Steel | Transportation
  • Ingress Protection: IP23S
  • Input Currents: 28.7/15 A
  • Input Current Watts: 2.5 kW
  • Input Voltages: 120-240 V
  • Input Volts And Amps: 120-240 V, 28.7/15 A
  • Materials: Aluminum | Mild steel | Stainless steel
  • Max Output Currents: 30 A
  • Min Output Currents: 15 A
  • Motor Gen For Full Arc: 6.8 kVA or 5.5 kW
  • Open Circuit V OCV: 240 VDC
  • Phases: 1-PH
  • Platforms: Handheld
  • Power Cable Lengths: 3m (10')
  • Power Supply Types: Inverter - IGBT
  • PS Dimension Included Handle: 420 x 195 x 333 mm (16.5 x 7.7 x 13.1")
  • Rated Output V VDC: 83 VDC
  • Rec Cut Capacity Fast: 8 mm (5/16") @ 500 mm/min (20 ipm)
  • Rec Cut Capacity Slow: 10 mm (3/8") @ 250 mm/min (10 ipm)
  • Remote Pendants: No
  • Severance Capacities: 12 mm (1/2") @ 125 mm/min (5 ipm)
  • Technologies: Plasma
  • Torch Angles: 75⁰
  • Torch Lead Lengths: 4.5 m (15')
  • Voltage Tolerances: +20% | -15%
  • Work Cables: Yes

Additional information

Weight 30.800 lbs
Dimensions .00 × .00 × .00 in
Vendor Part #

088096
