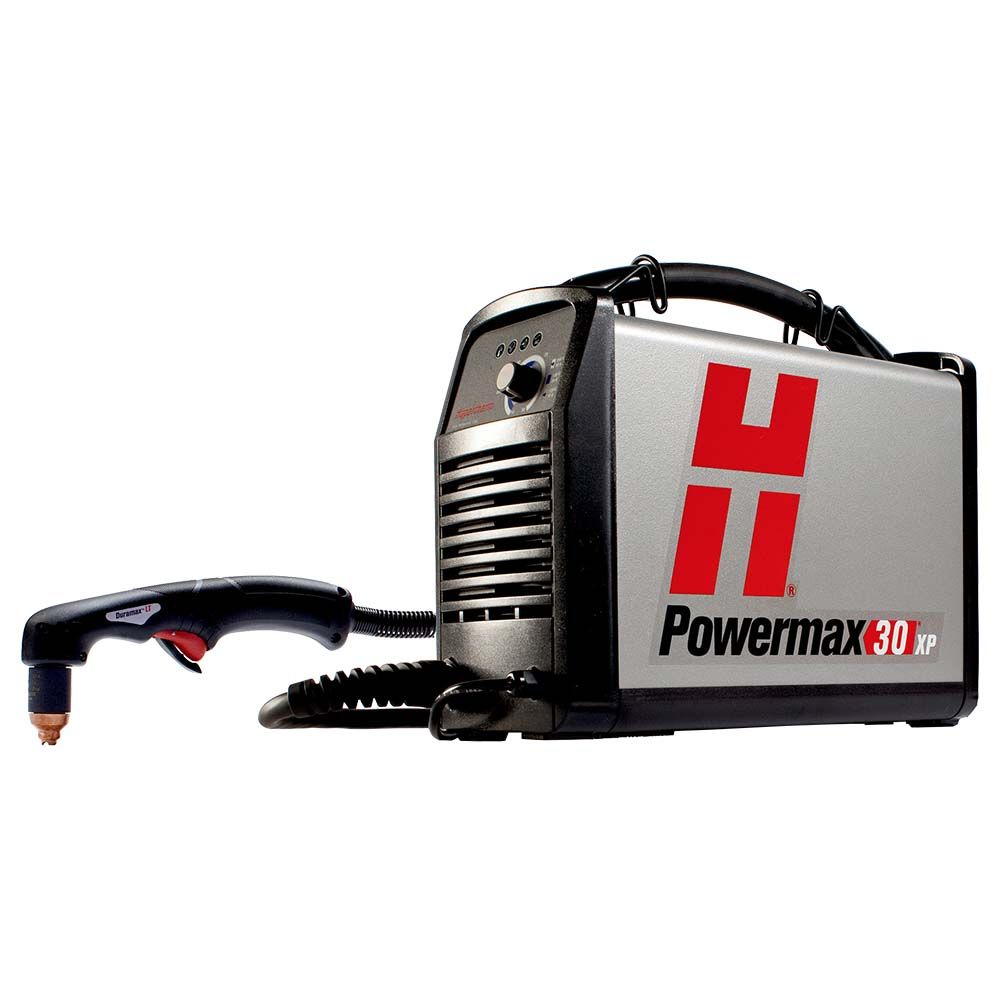

Hypertherm PMX30 XP CSA HND SYS 15′ AMER BLT ED W/CASE

Specifications

• Frequencies: 50-60 Hz
• Input Current Watts: 3.8 kW
• Open Circuit V Ocv: 240 VDC
• Torch Angles: 75⁰
• Technologies: Plasma
• Power Cable Lengths: 3m (10')
• Power Supply Types: Inverter - IGBT
• Platforms: Handheld
• Rec Flow For Cutting: 113.3 l/min or 240 scfh (4 scfm) @ 80 psi (5.5 bar)
• Remote Pendants: No
• Ps Dimen Incl Handle: 356 x 140 x 305 mm (14.0 x 5.5 x 12.0")
• Ingress Protection: IP23S
• Industries: Agriculture, Artwork, Signs & Ornamentation, Automotive, Construction, Energy, HVAC, Mechanical Contractors, Metal Fabriactors, Mining, Pipe & Pipelines, Pressure vessel/tank fabricators, Shipbuilding, Steel Service Centers, Structural Steel, Transportation
• Gasses: Air (Clean | Dry | Oil-Free), F5, Nitrogen
• Max Output Currents: 30 A
• Input Voltages: 120-240 V
• Input Volts And Amps: 120-240 V, 25.5/18.8 A
• Phases: 1-PH
• Min Output Currents: 15 A
• Rec Cut Capacity Fast: 10 mm (3/8") @ 500 mm/min (20 ipm)
• Duty Cycles 40C: 20% @ 30 A, 120 V, 35% @ 30 A, 240 V
• Materials: Aluminum, Mild Steel, Stainless Steel
• Motor Gen For Full Arc: 6.8 kVA or 5.5 kW
• Certification Models: CSA
• Input Currents: 25.5/18.8 A
• Work Cables: Yes
• Torch Lead Lengths: 4.5 m (15')
• Rated Output V Vdc: 125 VDC
• Severance Capacities: 16 mm (5/8") @ 125 mm/min (5 ipm)
• Rec Cut Capacity Slow: 12 mm (1/2") @ 250 mm/min (10 ipm)
• Weight: 17.69 lbs
