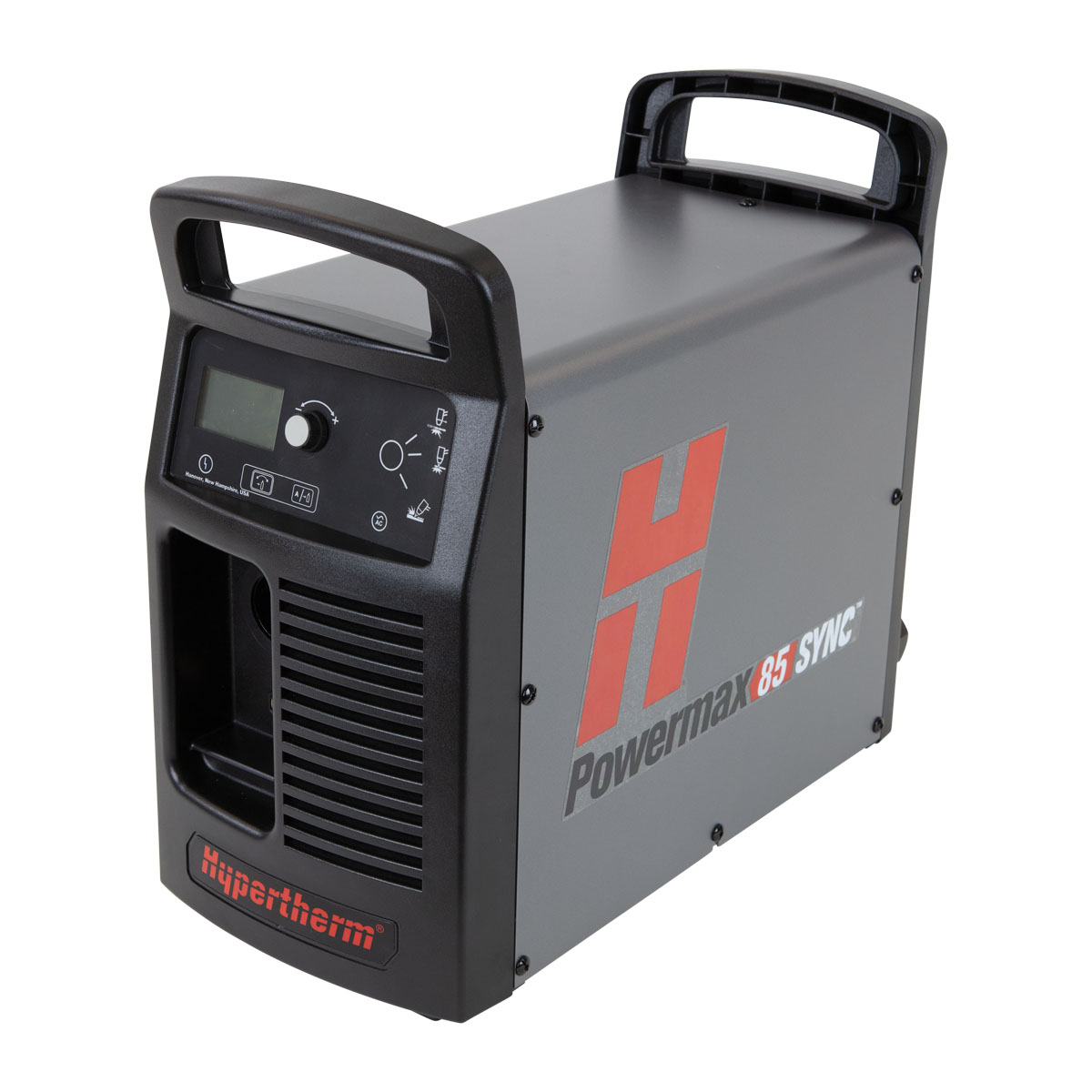

Hypertherm Powermax85 SYNC, Power Supply w/ CPC Port 087214

200-600V 1/3 PH, CSA, plus CPC port – Power Supply Only

Unavailable for online order

Request A Quote

Description

Powermax85 SYNC™ plasma system

Features

  • Simplified system operation minimizes the time and costs spent on training and troubleshooting Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts. Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.
  • Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups. RFID-enabled SmartSYNC™ torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors. End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge Less operator fatigue when using handheld torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.
  • SmartSYNC™ torches are engineered for rugged, industrial environments. SpringStart™ technology ensures consistent starting and a more reliable torch. Industry-leading reliability reduces production downtime
  • The Powermax85 SYNC™ is a next-generation professional grade air plasma system that dramatically simplifies system operation for cutting and gouging up to 25 mm (1″). Features automated system process set-up via advanced RFID-enabled SmartSYNC™ torches and a revolutionary single-piece cartridge consumable that provides trackable utilization data. The Powermax85 SYNC maximizes productivity through reductions in downtime, optimized cut quality performance and streamlined consumable inventory management.
  • Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging Optimized cartridge consumable design provides up to twice the life for hand cutting and improved quality over life in mechanized setups compared to standard consumables. Time-saving handheld torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply

Specifications

  • Dimensions with Handle (in): 19.0 x 9.2 x 17.0
  • Dimensions with Handle (mm): 483 x 233 x 430
  • Weight With Torch: NA
  • Weight Without Torch: 27.2 kg (60 lb)
  • Product Line: Powermax
  • Gasses: Air (clean, dry, oil-free) | F5 | Nitrogen
  • Certification Models: CSA
  • Comm Interface Ports: CPC
  • Divided Arc Voltages: 20:1 | 21.1:1 | 30:1 | 40:1 | 50:1
  • Duty Cycles 40c: 100% @ 66 A, 230 - 600 V | 40% @ 85 A, 200 - 208 V | 50% @ 85 A, 200 - 208 V | 50% @ 85 A, 240 V | 60% @ 85 A, 230 - 600 V | 60% @ 85 A, 480 V
  • Frequencies: 50-60 Hz
  • Gouge Capacities: 8.8 kg (19.5 lbs)
  • Gouge Profiles: 5.8 x 7.1 mm (.23 x .28")
  • Industries: Agriculture | Artwork, Signs & Ornamentation | Automotive | Construction | Energy | HVAC | Mechanical Contractors | Metal Fabriactors | Mining | Pipe & Pipelines | Pressure vessel/tank fabricators | Scrapping | Shipbuilding | Steel Service Centers | Structural Steel | Transportation
  • Ingress Protection: IP23S
  • Input Currents: 42/40/35/18/17 A | 70/68/58/29 A
  • Input Current Watts: 12.2 kW
  • Input Voltages: 200-480 V | 200-600 V
  • Input Volts And Amps: 200/208/240/480 V, 70/68/58/29 A | 200/208/240/480/600 V, 42/40/35/18/17 A
  • Materials: Aluminum | Copper | Mild steel | Non-ferrous | Stainless steel
  • Max Output Currents: 85 A
  • Mch Pierce Cap No ATHC: 16 mm (5/8")
  • Mch Pierce Cap w ATHC: 20 mm (3/4")
  • Min Output Currents: 25 A
  • Motor Gen For Full Arc: 26.8 kVA or 20 kW
  • Open Circuit V OCV: 305 VDC
  • Phases: 1/3-PH
  • Platforms: Automated | Handheld | Pipe and Tube | Robotic | XY Cutting
  • Power Cable Lengths: 3m (10')
  • Power Supply Types: Inverter - IGBT
  • PS Dimension Included Handle: 500 x 234 x 455 mm (19.7 x 9.2 x 17.9")
  • Rated Output V VDC: 143 VDC
  • Rec Cut Capacity Fast: 25 mm (1") @ 500 mm/min (20 ipm)
  • Rec Cut Capacity Slow: 32 mm (1-1/4") @ 250 mm/min (10 ipm)
  • Rec Flow For Cutting: 189 l/min or 400 scfh (6.7 scfm) @ 85 psi (5.9 bar)
  • Rec Flow For Gouging: 212 l/min or 450 scfh (7.5 scfm) @ 70 psi (4.8 bar)
  • Remote Pendants: No
  • Severance Capacities: 38 mm (1-1/2") @ 125 mm/min (5 ipm)
  • Technologies: Plasma
  • Voltage Tolerances: +10% | -15%
  • Warranties: 1-year
  • Work Cables: No

Additional information

Weight 71.060 lbs
Dimensions .00 × .00 × .00 in
Vendor Part #

087214
