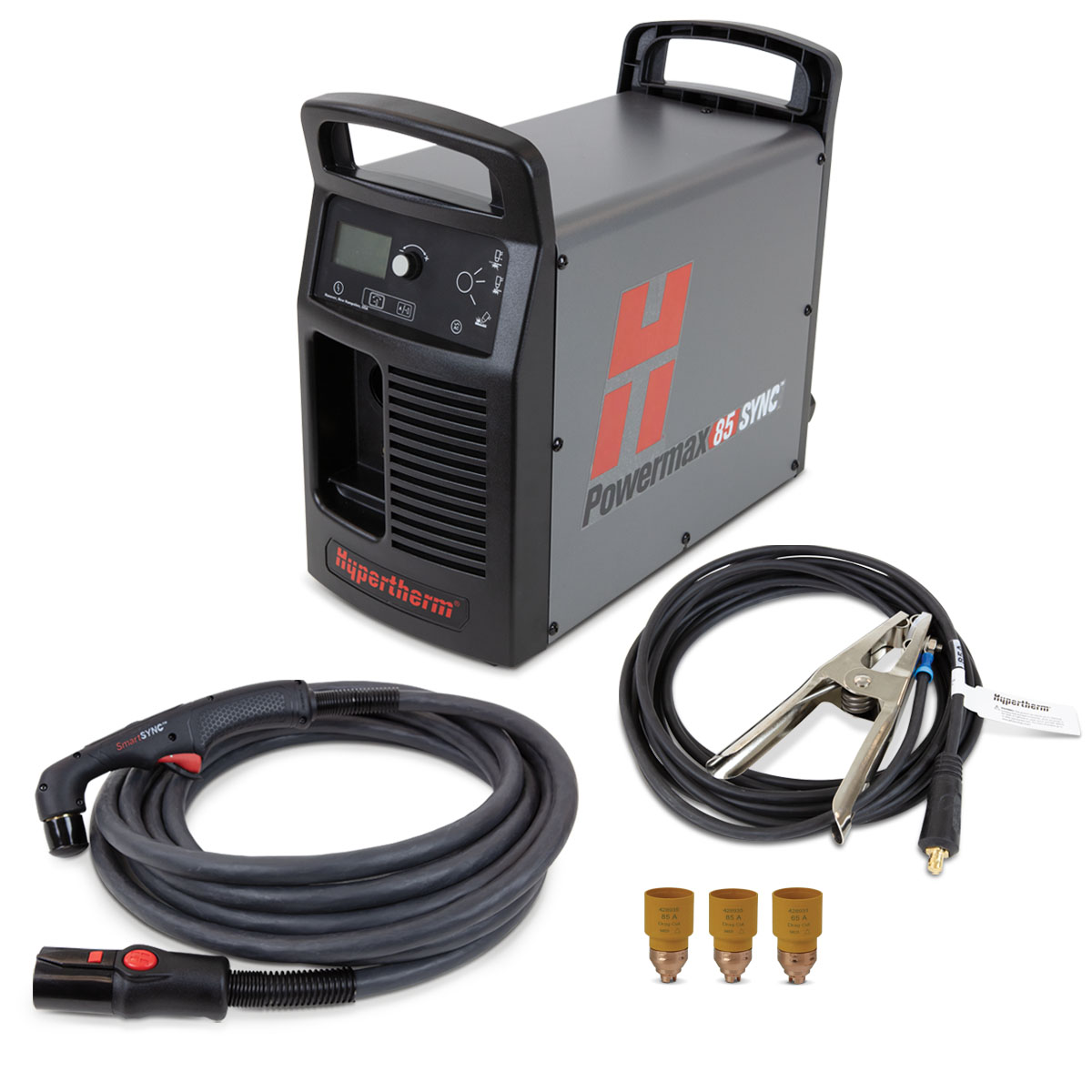

Hypertherm PMX85 SYNC 200-600V CSA/75° 25′ HND TCH/25′ LEAD

Features

• Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups. RFID-enabled SmartSYNC™ torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors. End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge. Less operator fatigue when using handheld torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.
• Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging. Optimized cartridge consumable design provides up to twice the life for hand cutting and improved quality over life in mechanized setups compared to standard consumables. Time-saving handheld torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.
• Simplified system operation minimizes the time and costs spent on training and troubleshooting. Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts. Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.

Specifications

• Input Current Watts: 12.2 kW
• Power Cable Lengths: 3m (10')
• Weight Without Torch: 27.2 kg (60 lb)
• Input Volts And Amps: 200/208/240/480 V, 70/68/58/29 A, 200/208/240/480/600 V, 42/40/35/18/17 A
• Max Output Currents: 85 A
• Motor Gen For Full Arc: 26.8 kVA or 20 kW
• Input Currents: 42/40/35/18/17 A, 70/68/58/29 A
• Input Voltages: 200-480 V, 200-600 V
• Remote Pendants: No
• Gasses: Air (Clean | Dry | Oil-Free), F5, Nitrogen
• Duty Cycles 40C: 100% @ 66 A, 230 - 600 V, 40% @ 85 A, 200 - 208 V, 50% @ 85 A, 200 - 208 V, 50% @ 85 A, 240 V, 60% @ 85 A, 230 - 600 V, 60% @ 85 A, 480 V
• Rec Cut Capacity Fast: 25 mm (1") @ 500 mm/min (20 ipm)
• Voltage Tolerances: +10%, -15%
• Mch Pierce Cap W Athc: 20 mm (3/4")
• Torch Lead Lengths: 7.6 m (25')
• Rec Flow For Gouging: 212 l/min or 450 scfh (7.5 scfm) @ 70 psi (4.8 bar)
• Frequencies: 50-60 Hz
• Gouge Profiles: 5.8 x 7.1 mm (.23 x .28")
• Certification Models: CSA
• Materials: Aluminum, Copper, Mild Steel, Non-Ferrous, Stainless Steel
• Ps Dimen Incl Handle: 500 x 234 x 455 mm (19.7 x 9.2 x 17.9")
• Weight With Torch: 30.4 kg (67 lb)
• Gouge Capacities: 8.8 kg (19.5 lbs)
• Ingress Protection: IP23S
• Min Output Currents: 25 A
• Rated Output V Vdc: 143 VDC
• Technologies: Plasma
• Work Cables: Yes
• Torch Angles: 75⁰
• Mch Pierce Cap No Athc: 16 mm (5/8")
• Phases: 1/3-PH
• Severance Capacities: 38 mm (1-1/2") @ 125 mm/min (5 ipm)
• Industries: Agriculture, Artwork, Signs & Ornamentation, Automotive, Construction, Energy, HVAC, Mechanical Contractors, Metal Fabriactors, Mining, Pipe & Pipelines, Pressure vessel/tank fabricators, Scrapping, Shipbuilding, Steel Service Centers, Structural Steel, Transportation
• Dimensions With Handle: 483 x 233 x 430 mm (19.0 x 9.2 x 17.0")
• Warranties: Power Supply: 3-year, Torch: 1-year
• Rec Flow For Cutting: 189 l/min or 400 scfh (6.7 scfm) @ 85 psi (5.9 bar)
• Power Supply Types: Inverter - IGBT
• Rec Cut Capacity Slow: 32 mm (1-1/4") @ 250 mm/min (10 ipm)
• Open Circuit V Ocv: 305 VDC
• Platforms: Automated, Handheld, Pipe and Tube, Robotic, XY Cutting
• Weight: 83 lbs
