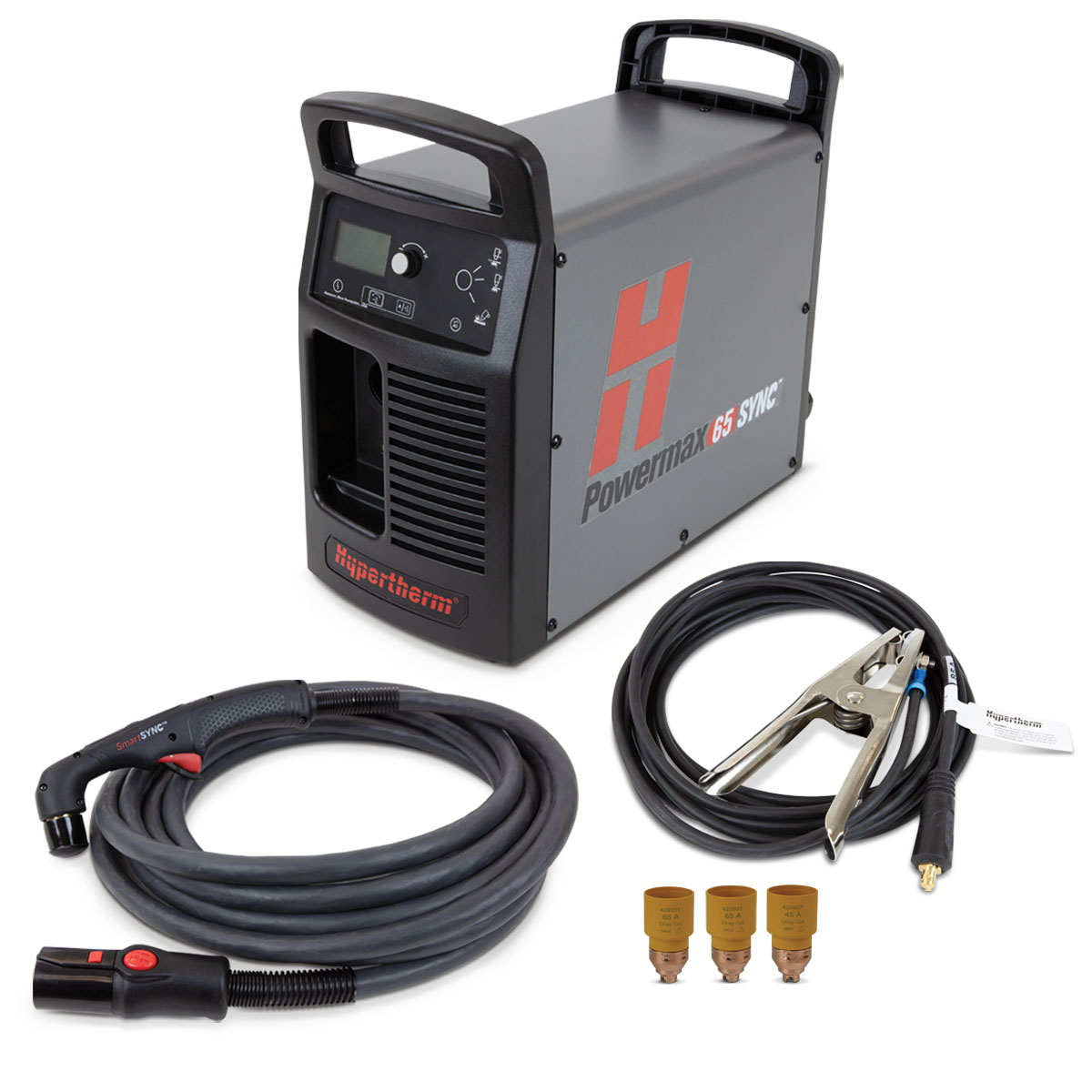

Hypertherm PMX65 SYNC 200-600V CSA/75° 25′ HND TCH/25′ LEAD

Features

• Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups. RFID-enabled SmartSYNC™ torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors. End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge. Less operator fatigue when using handheld torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.
• Simplified system operation minimizes the time and costs spent on training and troubleshooting. Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts. Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.
• Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging. Optimized cartridge consumable design provides up to twice the life for hand cutting and improved quality over life in mechanized setups compared to standard consumables. Time-saving handheld torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.

Specifications

• Input Volts And Amps: 200/208/240/480 V, 52/50/44/22 A, 200/208/240/480/600 V, 32/31/27/13/13 A
• Platforms: Automated, Handheld, Pipe and Tube, Robotic, XY Cutting
• Voltage Tolerances: +10%, -15%
• Warranties: Power Supply: 3-year, Torch: 1-year
• Gouge Capacities: 4.8 kg (10.7 lbs)
• Motor Gen For Full Arc: 20.1 kVA or 15 kW
• Ps Dimen Incl Handle: 500 x 234 x 455 mm (19.7 x 9.2 x 17.9")
• Duty Cycles 40C: 100% @ 45 A, 230 - 600 V, 50% @ 45 A, 200 - 240 V, 60% @ 41 A, 200 - 240 V
• Industries: Agriculture, Artwork, Signs & Ornamentation, Automotive, Construction, Energy, HVAC, Mechanical Contractors, Metal Fabriactors, Mining, Pipe & Pipelines, Pressure vessel/tank fabricators, Scrapping, Shipbuilding, Steel Service Centers, Structural Steel, Transportation
• Mch Pierce Cap No Athc: 12 mm (1/2")
• Rec Flow For Cutting: 189 l/min or 400 scfh (6.7 scfm) @ 85 psi (5.9 bar)
• Technologies: Plasma
• Frequencies: 50-60 Hz
• Rec Flow For Gouging: 212 l/min or 450 scfh (7.5 scfm) @ 70 psi (4.8 bar)
• Materials: Aluminum, Copper, Mild Steel, Non-Ferrous, Stainless Steel
• Remote Pendants: No
• Phases: 1/3-PH
• Weight Without Torch: 24.3 kg (54 lb)
• Gasses: Air (Clean | Dry | Oil-Free), F5, Nitrogen
• Open Circuit V Ocv: 295 VDC
• Input Currents: 32/31/27/13/13 A, 52/50/44/22 A
• Mch Pierce Cap W Athc: 16 mm (5/8")
• Gouge Profiles: 3.5 x 6.6 mm (.14 x .26")
• Power Supply Types: Inverter - IGBT
• Input Voltages: 200-600 V
• Ingress Protection: IP23S
• Min Output Currents: 20 A
• Torch Lead Lengths: 7.6 m (25')
• Weight With Torch: 27.5 kg (61 lb)
• Input Current Watts: 9 kW
• Rec Cut Capacity Slow: 25 mm (1") @ 250 mm/min (10 ipm)
• Power Cable Lengths: 3m (10')
• Certification Models: CSA
• Rec Cut Capacity Fast: 20 mm (3/4") @ 500 mm/min (20 ipm)
• Max Output Currents: 65 A
• Torch Angles: 75⁰
• Work Cables: Yes
• Dimensions With Handle: 483 x 233 x 430 mm (19.0 x 9.2 x 17.0")
• Rated Output V Vdc: 139 VDC
• Severance Capacities: 32 mm (1-1/4") @ 125 mm/min (5 ipm)
