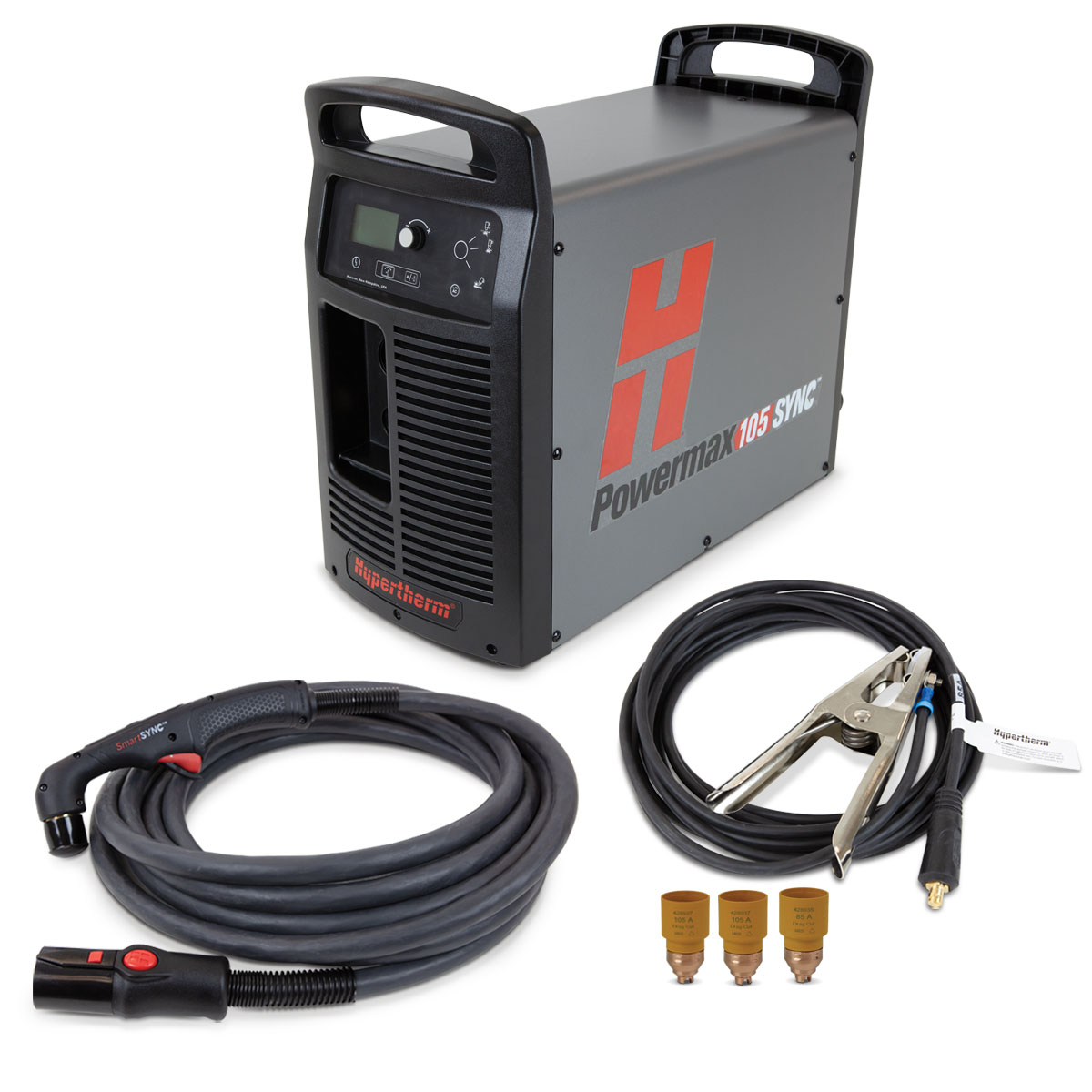

Hypertherm PMX105 SYNC 200-600V CSA/75° 25′ HND TCH/25′ LEAD

Features

• Simplified system operation minimizes the time and costs spent on training and troubleshooting. Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts. Cartridge usage data provides valuable insights for improving cutting operations and consumable inventory management.
• Cartridges are easy to identify by process with clear laser marking and color coding to eliminate part mix-ups. RFID-enabled SmartSYNC™ torches and cartridges automatically set the correct amperage and operating mode, eliminating setup errors. End-of-life consumable detection eliminates the uncertainty of knowing when to change the cartridge. Less operator fatigue when using handheld torches with our new flexible lead. The lead has the same robustness of our previous lead jacket material and will also be used on robotic torches.
• Tackle a wide range of jobs with easily interchangeable torch styles and application specific cartridges for various types of cutting and gouging. Optimized cartridge consumable design provides up to twice the life for hand cutting and improved quality over life in mechanized setups compared to standard consumables. Time-saving handheld torch controls allow the operator to adjust the amperage on the fly, change cartridges and applications without returning to the power supply.

Specifications

• Severance Capacities: 50 mm (2") @ 125 mm/min (5 ipm)
• Frequencies: 50-60 Hz
• Technologies: Plasma
• Gasses: Air (Clean | Dry | Oil-Free), F5, Nitrogen
• Gouge Capacities: 9.8 kg (21.7 lbs)
• Duty Cycles 40C: 80% @ 105 A, 400 V
• Dimensions With Handle: 592 x 436 x 508 mm (23.3 x 17.0 x 20.0")
• Platforms: Automated, Handheld, Pipe and Tube, Robotic, XY Cutting
• Power Cable Lengths: 3m (10')
• Gouge Profiles: 8.1 x 6.6 mm (.32 x .26")
• Voltage Tolerances: +10%, -15%
• Open Circuit V Ocv: 295 VDC
• Mch Pierce Cap W Athc: 22 mm (7/8")
• Rec Cut Capacity Slow: 38 mm (1-1/2") @ 250 mm/min (10 ipm)
• Rec Cut Capacity Fast: 32 mm (1-1/4") @ 500 mm/min (20 ipm)
• Materials: Aluminum, Copper, Mild Steel, Non-Ferrous, Stainless Steel
• Ingress Protection: IP23S
• Motor Gen For Full Arc: 40.2 kVA or 30 kW
• Warranties: Power Supply: 3-year, Torch: 1-year
• Phases: 3-PH
• Rec Flow For Cutting: 217 l/min or 460 scfh (7.7 scfm) @ 85 psi (5.9 bar)
• Remote Pendants: Yes
• Work Cables: Yes
• Torch Angles: 75⁰
• Max Output Currents: 105 A
• Certification Models: CSA
• Rated Output V Vdc: 160 VDC
• Input Current Watts: 16.8 kW
• Input Currents: 58/56/49/25/22 A
• Weight Without Torch: 39.7 kg (88 lb)
• Weight With Torch: 42.9 kg (95 lb)
• Input Volts And Amps: 200/208/240/480/600 V, 58/56/49/25/22 A
• Rec Flow For Gouging: 227 l/min or 480 scfh (8 scfm) @ 70 psi (4.8 bar)
• Mch Pierce Cap No Athc: 20 mm (3/4")
• Input Voltages: 200-600 V
• Power Supply Types: Inverter - IGBT
• Torch Lead Lengths: 7.6 m (25')
• Ps Dimen Incl Handle: 592 x 274 x 508 mm (23.3 x 10.8 x 20.0")
• Industries: Agriculture, Artwork, Signs & Ornamentation, Automotive, Construction, Energy, HVAC, Mechanical Contractors, Metal Fabriactors, Mining, Pipe & Pipelines, Pressure vessel/tank fabricators, Scrapping, Shipbuilding, Steel Service Centers, Structural Steel, Transportation
• Min Output Currents: 30 A
