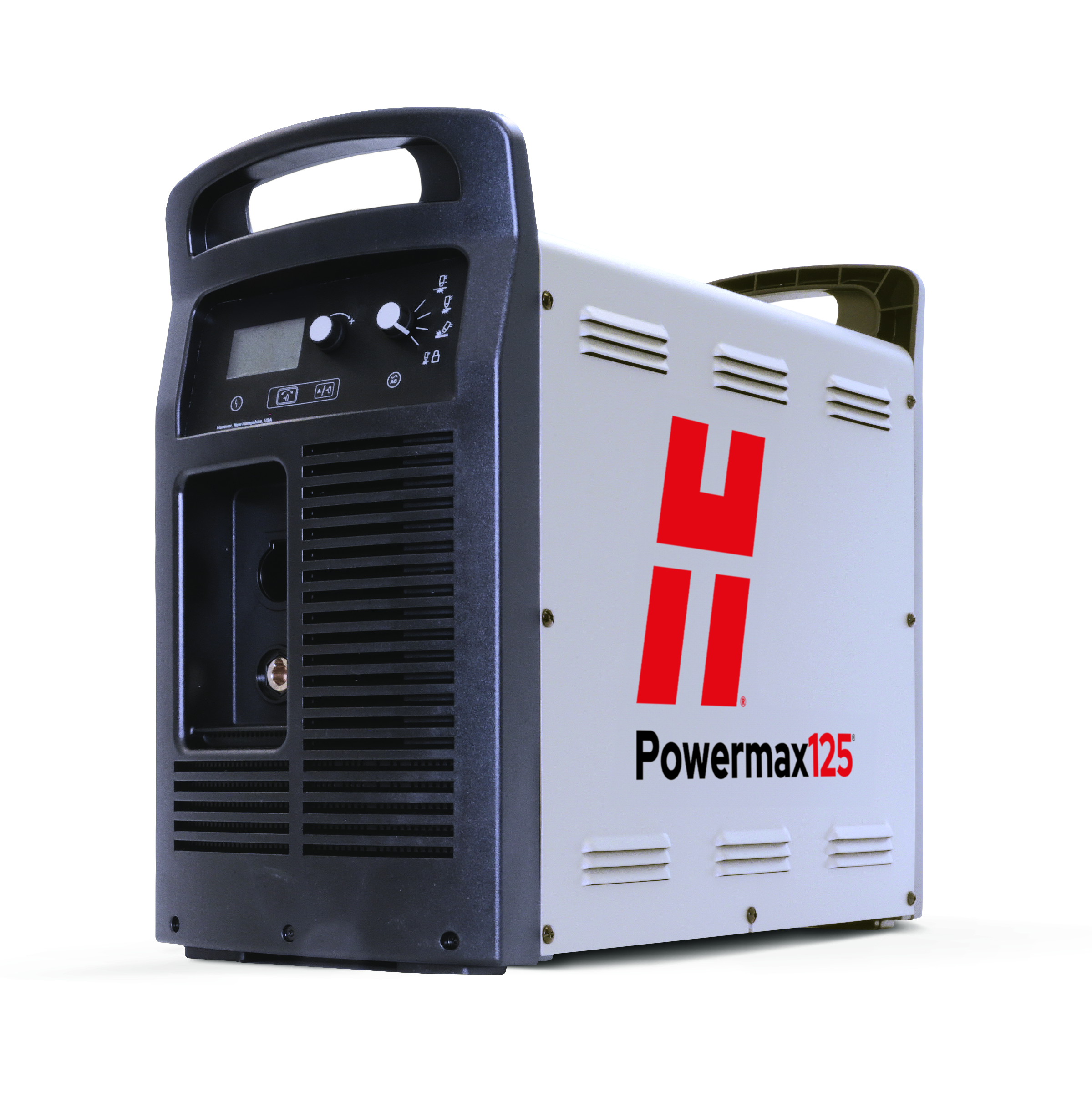

Hypertherm PMX125 CSA MS 480V/CPC/180° TCH/HND CLP 25’/RMT

Specifications

• Input Current Watts: 21.9 kW
• Industries: Construction, Energy, Metal Fabriactors, Mining, Pipe & Pipelines, Scrapping, Steel Service Centers, Transportation
• Rec Cut Capacity Slow: 44 mm (1-3/4") @ 250 mm/min (10 ipm)
• Platforms: Automated, Handheld, Pipe and Tube, Robotic, Track, XY Cutting
• Torch Lead Lengths: 15.2 m (50'), 7.6 m (25')
• Certification Models: CSA
• Rec Flow For Cutting: 260 l/min or 550 scfh (9.2 scfm) @ 85 psi (5.5 bar)
• Open Circuit V Ocv: 320 VDC
• Severance Capacities: 57 mm (2-1/4") @ 125 mm/min (5 ipm)
• Motor Gen For Full Arc: 53.6 kVA or 40 kW
• Power Cable Lengths: 3m (10')
• Gouge Profiles: 4.3 - 7.8 x 6.0 - 9.9 mm (0.17-0.31 x 0.24-0.39")
• Gasses: Air (Clean | Dry | Oil-Free), F5, Nitrogen
• Input Currents: 31/24 A
• Materials: Aluminum, Mild Steel, Stainless Steel
• Divided Arc Voltages: 20:1, 21.1:1, 30:1, 40:1, 50:1
• Frequencies: 50-60 Hz
• Mch Pierce Cap W Athc: 25 mm (1")
• Mch Pierce Cap No Athc: 22 mm (7/8")
• Input Volts And Amps: 480/600 V, 31/24 A
• Rated Output V Vdc: 175 VDC
• Comm Interface Ports: CPC
• Torch Angles: 180⁰
• Voltage Tolerances: +20%, -15%
• Work Cables: Yes
• Phases: 3-PH
• Ingress Protection: IP23S
• Power Supply Types: Inverter - IGBT
• Technologies: Plasma
• Gouge Capacities: 12.5 kg (27.6 lbs)
• Ps Dimen Incl Handle: 592 x 274 x 508 mm (23.3 x 10.8 x 20.0")
• Duty Cycles 40C: 100% @ 125 A
• Max Output Currents: 125 A
• Min Output Currents: 30 A
• Input Voltages: 480 V
• Rec Cut Capacity Fast: 38 mm (1-1/2") @ 457 mm/min (18 ipm)
• Rec Flow For Gouging: 212 l/min or 450 scfh (8 scfm) @ 60 psi (4.1 bar)
• Remote Pendants: Yes
• Weight: 50.8 lbs
