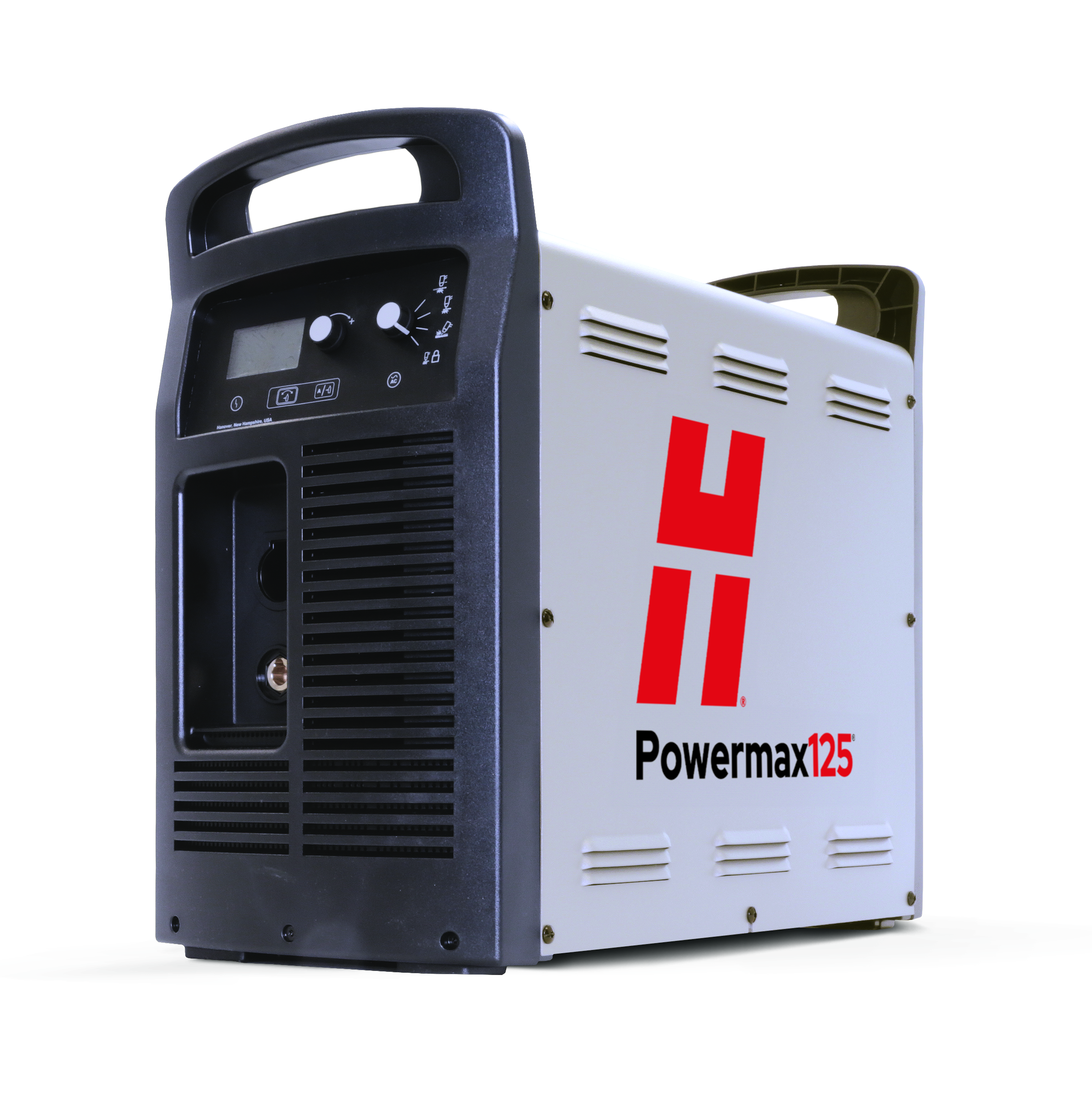

Hypertherm PMX125 CSA HS 480V/CPC/85° TCH/HND CLP 25′

Specifications

• Power Supply Types: Inverter - IGBT
• Severance Capacities: 57 mm (2-1/4") @ 125 mm/min (5 ipm)
• Voltage Tolerances: +20%, -10%
• Rec Flow For Gouging: 212 l/min or 450 scfh (8 scfm) @ 60 psi (4.1 bar)
• Comm Interface Ports: CPC
• Duty Cycles 40C: 100% @ 125 A
• Frequencies: 50-60 Hz
• Platforms: Handheld
• Ps Dimen Incl Handle: 592 x 274 x 508 mm (23.3 x 10.8 x 20.0")
• Certification Models: CSA
• Industries: Construction, Energy, Metal Fabriactors, Mining, Pipe & Pipelines, Scrapping, Shipbuilding, Steel Service Centers, Transportation
• Technologies: Plasma
• Motor Gen For Full Arc: 53.6 kVA or 40 kW
• Input Volts And Amps: 480/600 V, 31/24 A
• Rec Cut Capacity Slow: 44 mm (1-3/4") @ 250 mm/min (10 ipm)
• Gasses: Air (Clean | Dry | Oil-Free), F5, Nitrogen
• Work Cables: Yes
• Phases: 3-PH
• Rec Flow For Cutting: 260 l/min or 550 scfh (9.2 scfm) @ 85 psi (5.5 bar)
• Divided Arc Voltages: 20:1, 21.1:1, 30:1, 40:1, 50:1
• Gouge Capacities: 12.5 kg (27.6 lbs)
• Gouge Profiles: 4.3 - 7.8 x 6.0 - 9.9 mm (0.17-0.31 x 0.24-0.39")
• Input Voltages: 480 V
• Torch Angles: 75⁰
• Ingress Protection: IP23S
• Power Cable Lengths: 3m (10')
• Min Output Currents: 30 A
• Input Current Watts: 21.9 kW
• Rec Cut Capacity Fast: 38 mm (1-1/2") @ 457 mm/min (18 ipm)
• Materials: Aluminum, Mild Steel, Stainless Steel
• Mch Pierce Cap W Athc: 25 mm (1")
• Remote Pendants: No
• Open Circuit V Ocv: 320 VDC
• Mch Pierce Cap No Athc: 22 mm (7/8")
• Max Output Currents: 125 A
• Rated Output V Vdc: 175 VDC
• Torch Lead Lengths: 7.6 m (25')
• Input Currents: 31/24 A
• Weight: 49.44 lbs
