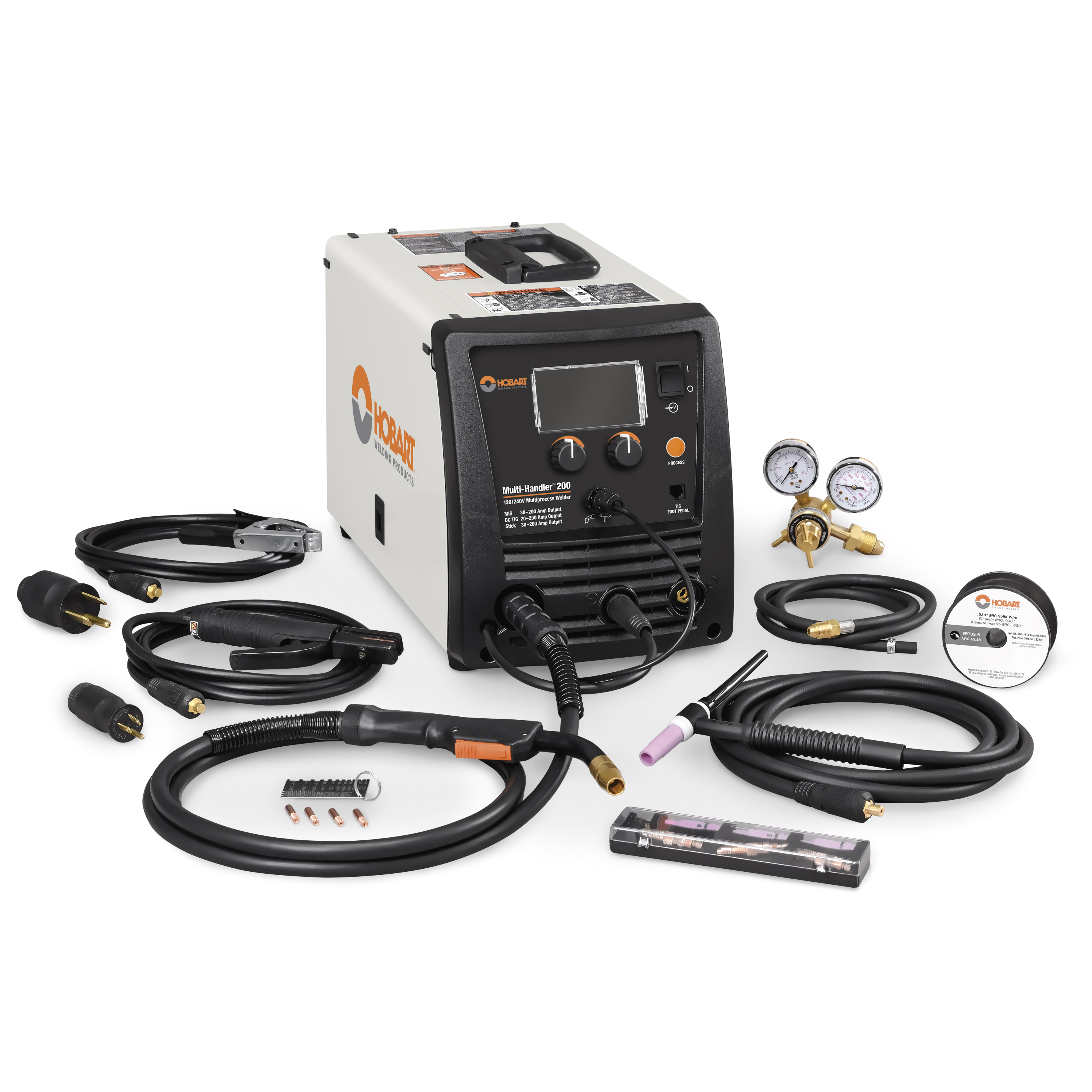

Hobart Multi-Handler 200 Multiprocess Welder

120/240VAC, 10 ft HR-100 MIG Gun

Unavailable for online order

Request A Quote

Description

This Multiprocess welder includes MIG, Flux cored, Stick, and DC TIG processes in one machine The versatile machine is made to work on a variety of projects. Weld materials up to 3/8". Choose between 120 V or 240 V input power

Features

  • Multiprocess Capabilities: Versatility with one machine that provides MIG, DC TIG and stick capabilities.
  • Easy-to-use Interface: With two knobs and a process button, setting up or changing over this machine is quick.
  • Dual-Voltage: Allows you to connect to common 120- or 240-volt power receptacles without the use of any tools — simply choose the plug that fits the receptacle
  • Quick Select Drive Roll: Makes setup quicker by offering three grooves — two for different size solid wire and a third for flux-cored wire
  • Spool Gun Ready: Spool guns enhance feedability and reduce “bird-nesting” associated with soft aluminum Wire No additional control box or adapter is required to connect the SpoolRunner™ 100 spool gun
  • Run in Technology: Experience smooth, spatter-free starts. The run-in feature automatically slows the wire feed speed to a pre-set speed prior to arc initiation, improving arc starts.
  • Hobart 5/3/1 Warranty: Five-year warranty on transformers, stabilizers and main rectifiers; three years on generators, PC boards and drive systems;and one year on guns (MIG, plasma and TIG torches).

Specifications

  • Country of Origin: China
  • Length: 20.8
  • Width: 10.6
  • Height: 13.4
  • Weight: 38.4
  • Max Open Circuit Voltage: 63 VDC
  • Input Phase: Single Phase
  • Welding Mode: CCCV
  • Metal Type: MostMetals
  • Min Wire Feed Speed IPM: 60 IPM
  • Max Wire Feed Speed IPM: 650 IPM
  • Amperage Min: 30 A
  • Amperage Max: 200 A
  • Amperage Range: 30 A - 200 A
  • Input Hz: 50/60 Hz
  • Material Thickness Display: Mild Steel 24 ga. (0.5 mm) - 3/8 in (9.5 mm)

Downloads

Spec Sheet

Additional information

Weight 60.000 lbs
Dimensions 29.90 × 16.90 × 15.40 in
Vendor Part #

500578
