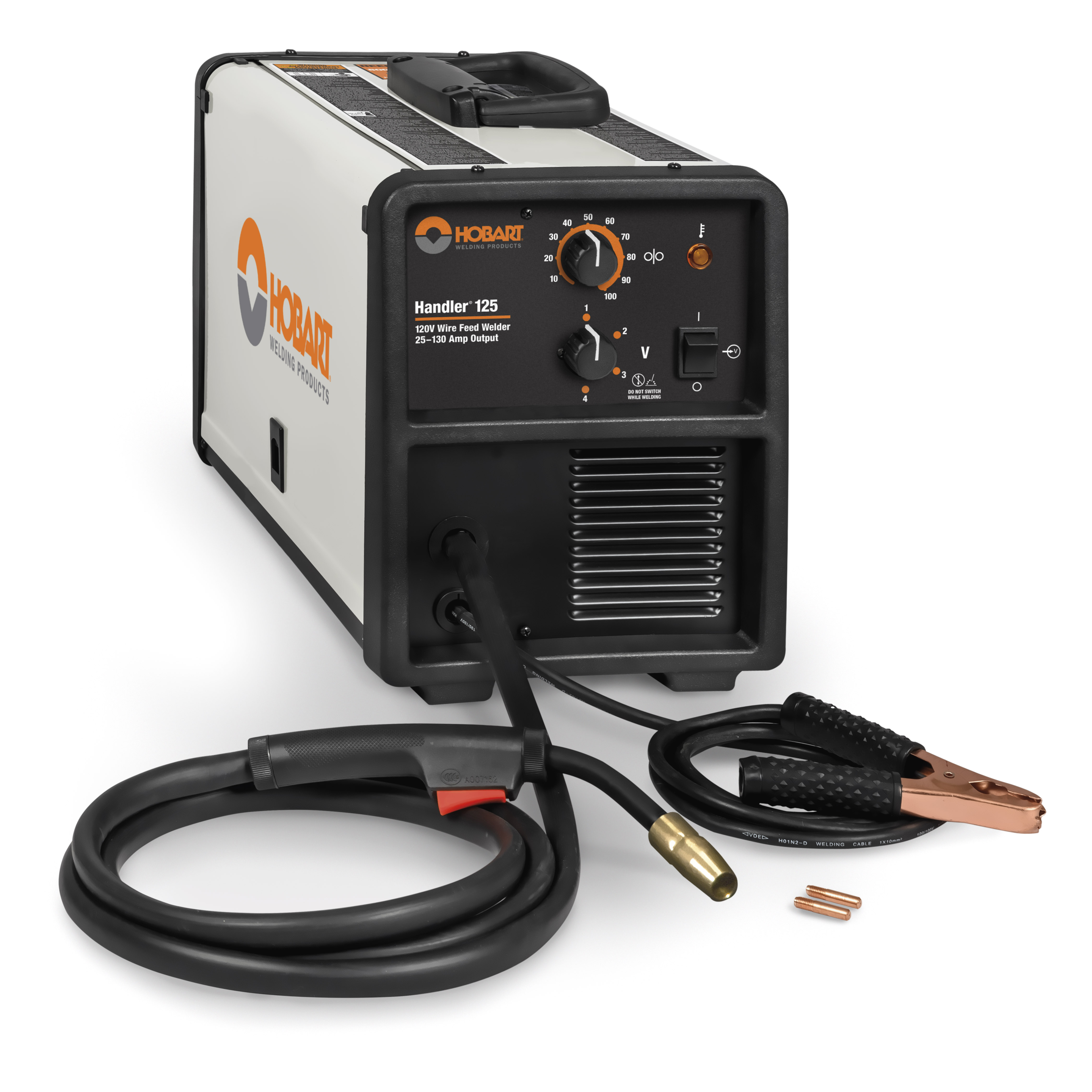

Hobart Handler 125 MIG Welder

Features

• Four output voltage settings: Four voltage ranges allow you to adjust the arc for different thicknesses.
• Factory-installed gas solenoid: Easy for you to change from flux-cored wire to MIG welding
• Built-in contactor: Keeps wire electrically "cold" until trigger is pulled which gives you ease of use
• Durable feed head with quick-release drive roll tension lever: Positive feed with adjustable tension gives you easy access to thread new wire
• Spool hub assembly accommodates 4- or 8- inch spools: Offers you flexibility to use small or large spools of wire to better suit your welding needs.
• Self- resetting thermal overload protection: Protects power transformer from thermal overload to provide you maximum reliability
• Broad output range of 25 – 130 Amps.: Allows you to weld up to 1/8 in steel with flux-cored wire

Specifications

• Country of Origin: China
• Length: 19.4
• Width: 10
• Height: 13.5
• Weight: 57.5
• Max Open Circuit Voltage: 28 VDC
• Input Phase: Single Phase
• Min Thickness - ga - Mild Steel: 24 ga
• Min Wire Feed Speed - IPM: 88 IPM
• Max Wire Feed Speed - IPM: 545 IPM
• Input Voltage: 110V | 115V | 120V
• Max Thickness - in - Mild Steel: 0.1875 in
• Current Type: DC
• Weldable Metals: Stainless Steel | Steel
• Material Thickness Display: Mild Steel 24 ga. (0.8 mm) - 3/16 in (4.8 mm)
• Wire Diameter Display: Solid Steel 0.024 in - 0.03 in | Flux Cored 0.03 in - 0.035 in | Flux Cored 0.8 mm. - 0.9 mm.
• Wire Feed Speed Display: 88 IPM - 545 IPM
