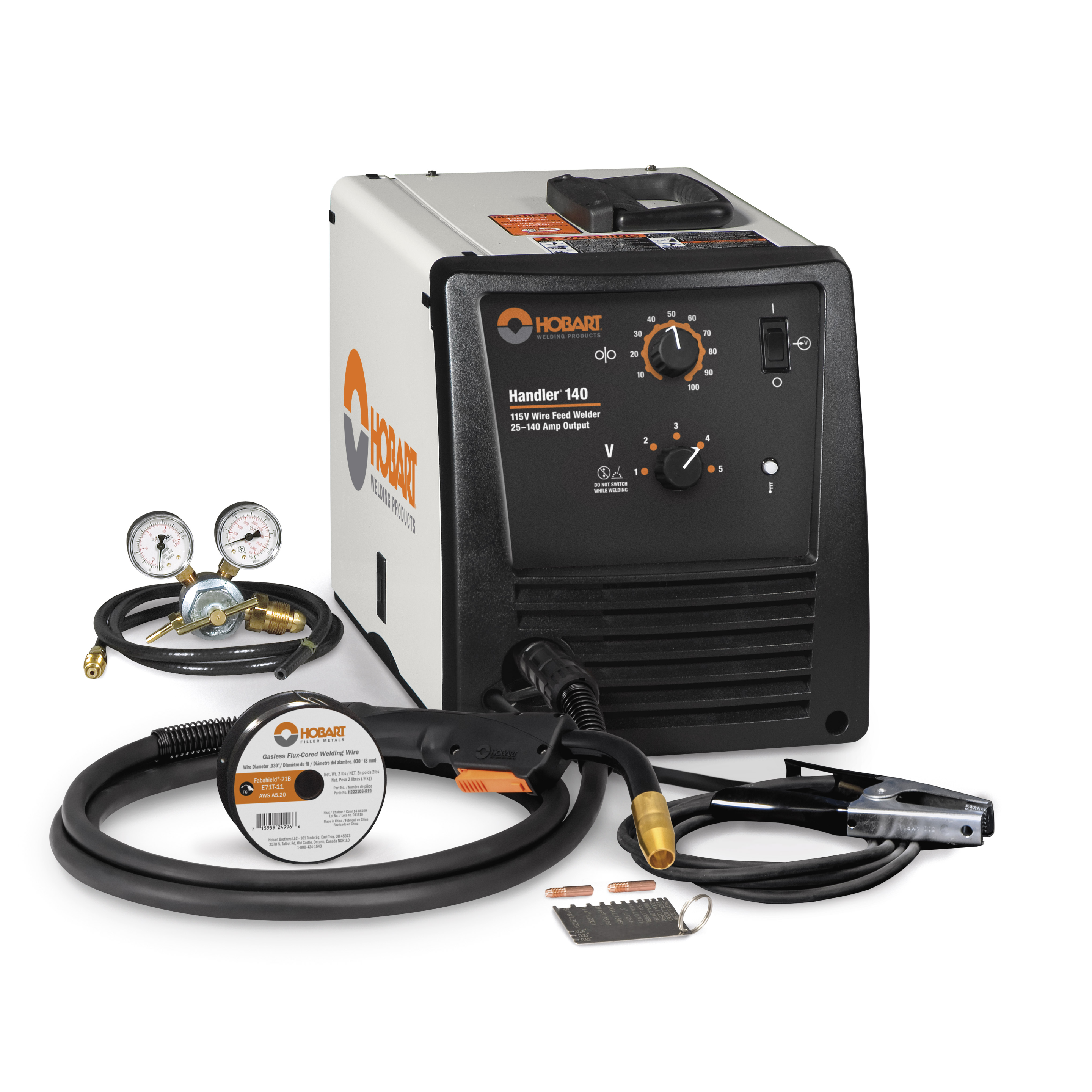

Hobart Handler 140 MIG Welder

Features

• Self-resetting motor protection: Protects wire feed system from overload, you won't need to change or reset the circuit breaker
• Arc Performance: Smooth, stable arc on all thicknesses allows you the best arc possible
• Industrial cast aluminum wire drive system: Durable wire feed provides you professional performance
• Five-position voltage control: Five voltage ranges allow you to fine-tune the arc.
• Quick Select drive roll: Less of your time consumed in setup by offering three grooves - two for different size solid wire and a third for flux-cored wire
• Weighs only 57 pounds: Easier to transport: increased ability to weld where you need to weld.
• Convenient polarity changeover: Easier and quicker for you to change polarity between solid or tubular wire
• Sloped control panel: Increased visibility so you can make adjustments more easily
• Self- resetting thermal overload protection: Protects power transformer from thermal overload to provide you maximum reliability

Specifications

• Country of Origin: United States
• Length: 19.5
• Width: 10.625
• Height: 12.375
• Weight: 57
• Max Open Circuit Voltage: 28 VDC
• Input Phase: Single Phase
• Amperage Min: 25 A
• Amperage Max: 140 A
• Amperage Range: 25 A - 140 A
• Min Thickness - ga - Mild Steel: 24 ga
• Min Wire Feed Speed - IPM: 40 IPM
• Max Wire Feed Speed - IPM: 700 IPM
• Input Voltage: 110V | 115V | 120V
• Max Thickness - in - Mild Steel: 0.25 in
• Current Type: DC
• Weldable Metals: Aluminum | Stainless Steel | Steel
• Input Hz: 60 Hz
• Material Thickness Display: Mild Steel 24 ga. (0.5 mm) - 1/4 in (6.4 mm)
• Wire Diameter Display: Stainless 0.024 in - 0.035 in | Stainless 0.6 mm. - 0.9 mm. | Solid Steel 0.6 mm. - 0.9 mm. | Solid Steel 0.024 in - 0.035 in | Flux Cored 0.03 in - 0.035 in | Flux Cored 0.8 mm. - 0.9 mm.
• Wire Feed Speed Display: 40 IPM - 700 IPM
