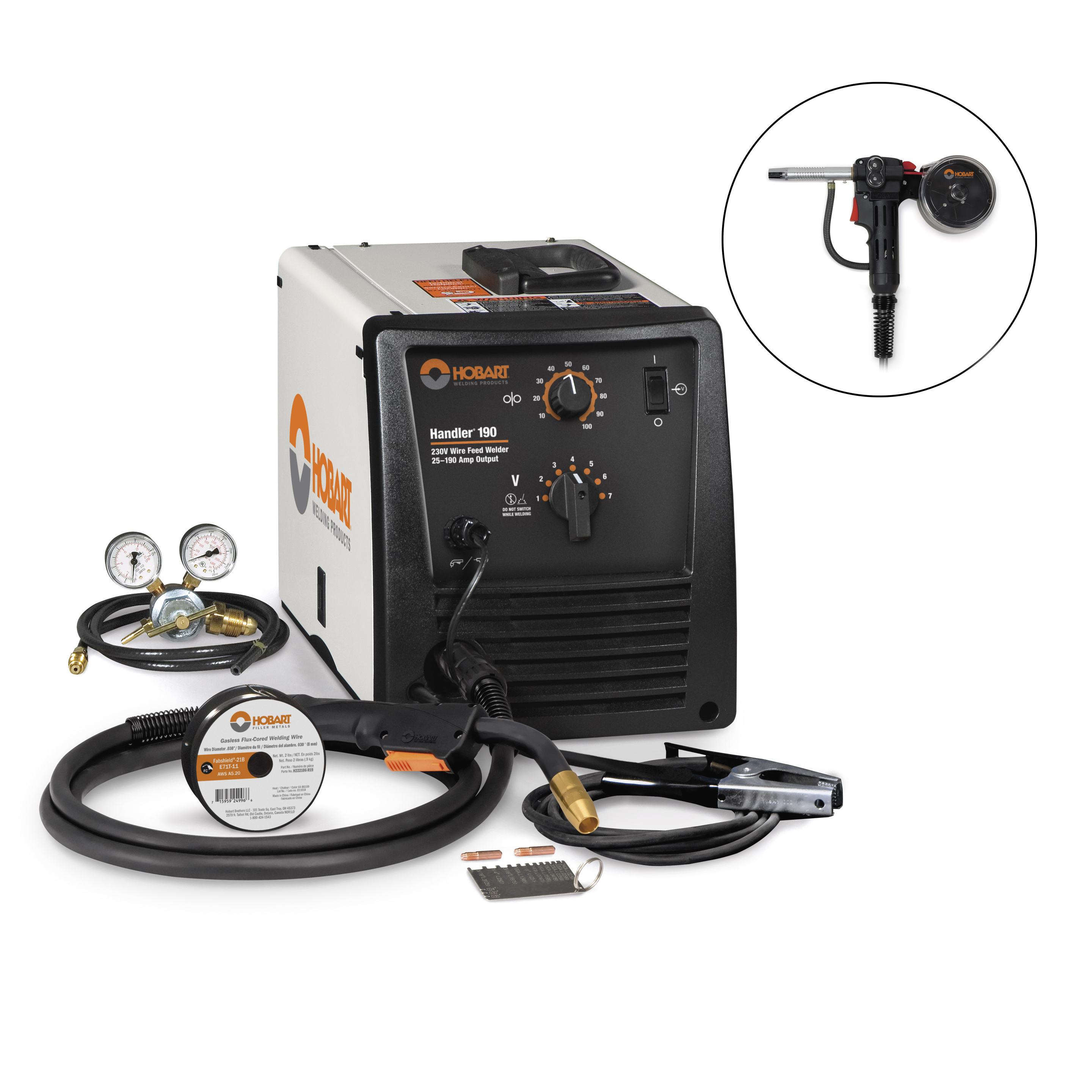

Hobart Handler 190 MIG Welder with SpoolRunner 100

230 VAC, 60 Hz

Unavailable for online order

Request A Quote

Features

  • 7 voltage settings, with infinite wire feed speed control: Allows you to fine control the output parameters for improved arc performance with less spatter for a better bead appearance and less clean up.
  • Accepts uncomplicated, easy-to-install direct plug-in SpoolRunner 100 spool gun: Spool guns enhance feedability and reduce "bird-nesting" associated with soft aluminum Wire
  • Integrated spool gun control circuitry is standard: No additional control box or adaptor is required to connect the SpoolRunner 100 spool gun
  • Door chart with initial settings: Quickly reference initial settings for different Wire, gases, materials and thicknesses. Provides quick starting point for novices and professionals alike
  • Built-in contactor: Eases use and excellent safety feature which makes wire electrically "cold" until trigger is pulled.
  • Durable feed head with quick-release drive roll tension lever: Positive feed with adjustable tension plus easy accessibility to thread new wire
  • Convenient polarity changeover with tip holder: Access makes it quick and easy to change polarity for solid or tubular wire Includes convenient storage holes for spare tips.
  • Quick Select drive roll: Makes setup quicker by offering three grooves - two for different size solid Wire and a third for flux-cored wire
  • Short circuit protection: Protects unit against current overload.
  • Self-resetting thermal overload: Protects power transformer to ensure reliability
  • Current-limited motor protection: Protects wire feed system from overload, no fuses to change or circuit breaker buttons to reset.

Specifications

  • Country of Origin: United States
  • Length: 19.5
  • Width: 10.625
  • Height: 12.375
  • Weight: 68

Downloads

Spec Sheet

Additional information

Weight 89.000 lbs
Dimensions 30.00 × 18.00 × 14.00 in
Vendor Part #

500554001
