ProHeat 35
Rolling Inductor System
![ProHeat 35 with Rolling Inductor 02.jpg](https://static.wixstatic.com/media/778b26_e3ee726ad8324b4296a4f38f90831f17~mv2_d_6832_4861_s_4_2.jpg/v1/fill/w_123,h_87,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_e3ee726ad8324b4296a4f38f90831f17~mv2_d_6832_4861_s_4_2.jpg)
![rolling inductor screengrab2.jpg](https://static.wixstatic.com/media/778b26_568350038ee9432d8314b8319427dd4b~mv2.jpg/v1/fill/w_69,h_85,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_568350038ee9432d8314b8319427dd4b~mv2.jpg)
The ProHeat 35 Induction Heating System with the Rolling Inductor is a simple and cost-effective heating solution which delivers fast and consistent heat for pipe, plate, and pressure vessel fabricators.
Optimal consistency and quality
-
The Rolling Induction System eliminates the inconsistencies and quality issues associated with open flame torch heating methods.
-
Temperature feedback (optional) allows operators to set and achieve targeted preheat temperatures easily.
-
The Travel Detection System (optional) prevents hot spots by controlling heating output based on travel speeds and turning off completely if the part is not moving.
Improved safety
-
Eliminates open flames reducing burn, fume, and explosive gas hazards.
-
Direct heat transfer results in cooler shop environment that reduces operator fatigue and improves work conditions.
Maximum productivity
-
Quick time to temperature increases production times while reducing consumable costs and labor expenses.
-
Heating while rolling the pipe assembly allows for continuous fabrication.
-
Compact and portable to configure for multiple applications.
![rolling inductor screengrab.JPG](https://static.wixstatic.com/media/778b26_9b7f694e948b42ff94d991cfe8476fb3~mv2.jpg/v1/fill/w_69,h_101,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_9b7f694e948b42ff94d991cfe8476fb3~mv2.jpg)
EQUIPMENT & ACCESSORIES
![Proheat 35 Power Source](https://static.wixstatic.com/media/778b26_8c01fe058b574949961c43c68e2bc215~mv2.jpg/v1/fill/w_85,h_71,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_8c01fe058b574949961c43c68e2bc215~mv2.jpg)
![Rolling Inductor](https://static.wixstatic.com/media/778b26_3b823518707246cebdaaf5a99f0da269~mv2.jpg/v1/fill/w_106,h_56,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_3b823518707246cebdaaf5a99f0da269~mv2.jpg)
![Infrared Connector Box](https://static.wixstatic.com/media/778b26_b9e5c88efd2c437088bed95d9e1dd31c~mv2.jpg/v1/fill/w_92,h_80,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_b9e5c88efd2c437088bed95d9e1dd31c~mv2.jpg)
![Infrared Temperature Sensor](https://static.wixstatic.com/media/778b26_898a3585c8fc4fcc907b1aa5de933596~mv2.jpg/v1/fill/w_117,h_55,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_898a3585c8fc4fcc907b1aa5de933596~mv2.jpg)
![Travel Detection System](https://static.wixstatic.com/media/778b26_a22bc5b592f5422d92d6b7a9082e62b0~mv2.jpg/v1/fill/w_117,h_62,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_a22bc5b592f5422d92d6b7a9082e62b0~mv2.jpg)
![Cooler Heat Exchanger](https://static.wixstatic.com/media/778b26_f9a67dda0375435195e6c42e4c052474~mv2.jpg/v1/fill/w_86,h_96,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_f9a67dda0375435195e6c42e4c052474~mv2.jpg)

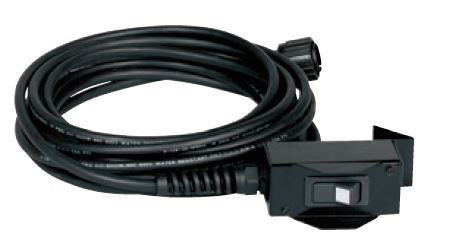

![Remote Contactor Control](https://static.wixstatic.com/media/778b26_0e5b0df780b04875affa2f8216f34a02~mv2.jpg/v1/fill/w_113,h_60,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_0e5b0df780b04875affa2f8216f34a02~mv2.jpg)
![Remote Hand Control](https://static.wixstatic.com/media/778b26_b871312e890f46a7a81358aec614ae73~mv2.jpg/v1/fill/w_116,h_76,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_b871312e890f46a7a81358aec614ae73~mv2.jpg)
![Momentary switch](https://static.wixstatic.com/media/778b26_32d0bf6297894b5695680cec5d73bcef~mv2.jpg/v1/fill/w_87,h_30,al_c,q_80,usm_0.66_1.00_0.01,blur_2,enc_auto/778b26_32d0bf6297894b5695680cec5d73bcef~mv2.jpg)
QUICK SPECS
Applications Process piping, Refinery, Petrochemical, Power piping, Pressure vessels
Maximum Preheat Temperature 600°F (315°C ) Input Power 460 – 575 V, 3-phase, 60 Hz 400 – 460 V, 3-phase, 50/60 Hz
Input Amperes at Rated Output 400 V: 60 amps 460 V: 50 amps 575 V: 40 amps
Rated Output One rolling inductor: 20 kW at 100% duty cycle Two rolling inductors: 35 kW at 100% duty cycle
Power Source Dimensions H: 27.5 in. (699 mm) W: 21.75 in. (552 mm) D: 36.75 in. (933 mm)
Power Source Weight Net: 227 lb. (103 kg) Ship: 265 lb. (120 kg)
